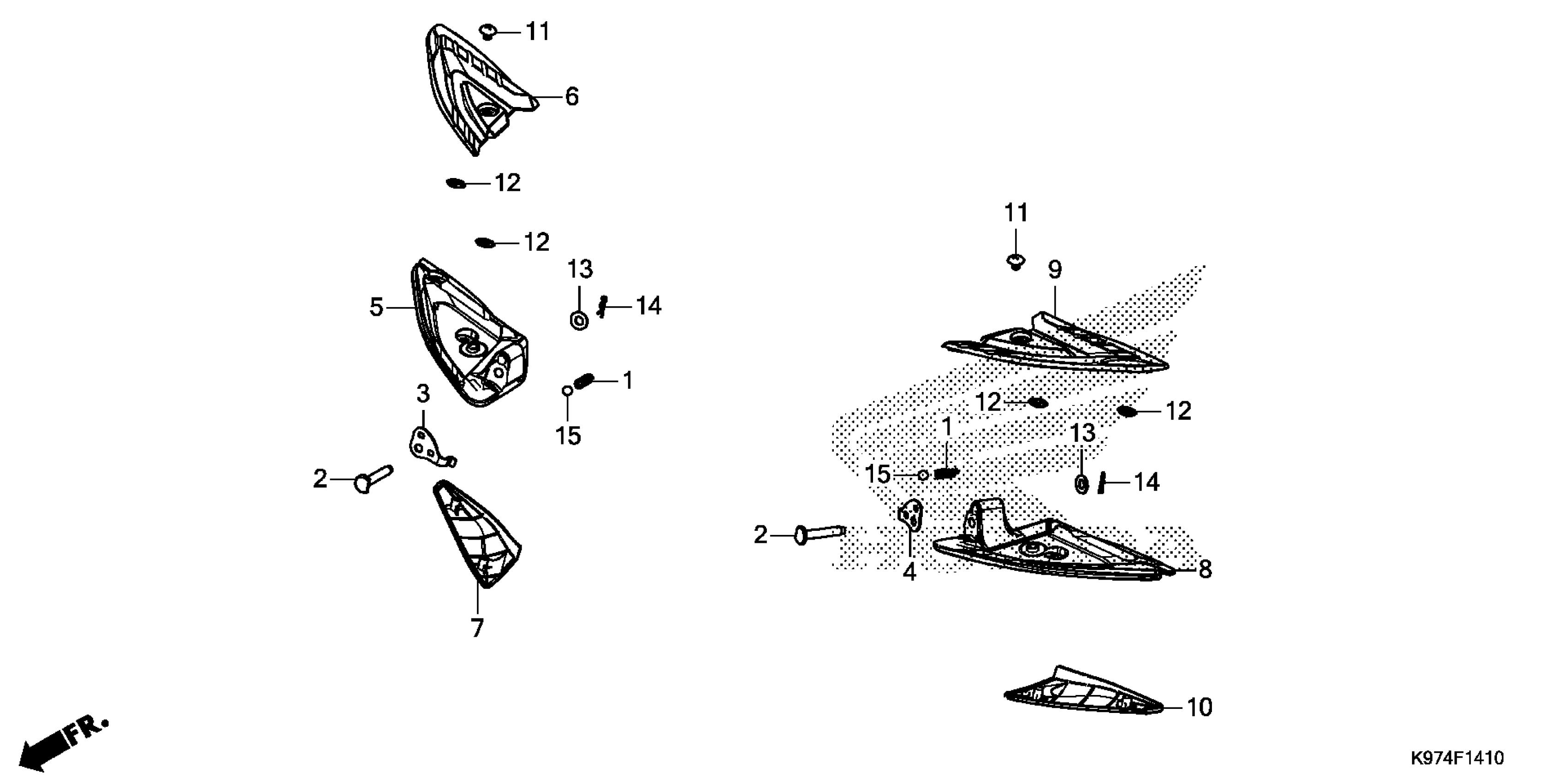

Honda PCX150AC (19) MOTOR SCOOTER, VNM, VIN# RLHKF300-KY000001 TO RLHKF300-KY099999 PILLION STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

PIN

50638-K97-T00

$2.52

3

PLATE

50718-K97-T00

$1.25

4

PLATE

50719-K97-T00

$1.25

5

ARM, R PILLION STEP

50730-K97-T00

$16.98

6

COVER (INNER) *NH1*

50731-K97-T00ZA

$2.94

7

COVER (OUTER) *NH1*

50732-K97-T00ZA

$2.29

8

ARM, L PILLION STEP

50740-K97-T00

$16.98

9

COVER (INNER) *NH1*

50741-K97-T00ZA

$2.94

10

COVER (OUTER) *NH1*

50742-K97-T00ZA

$2.29

11

SCREW, TRUSS (5X6)

90109-K01-900

$0.38

12

NUT, PUSH (6MM)

90301-K12-900

$0.81

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

14

PIN, LOCK (5MM)

94251-05000

$1.06

15

BALL, STEEL (#8) (1/4)

96211-08000

$1.42
