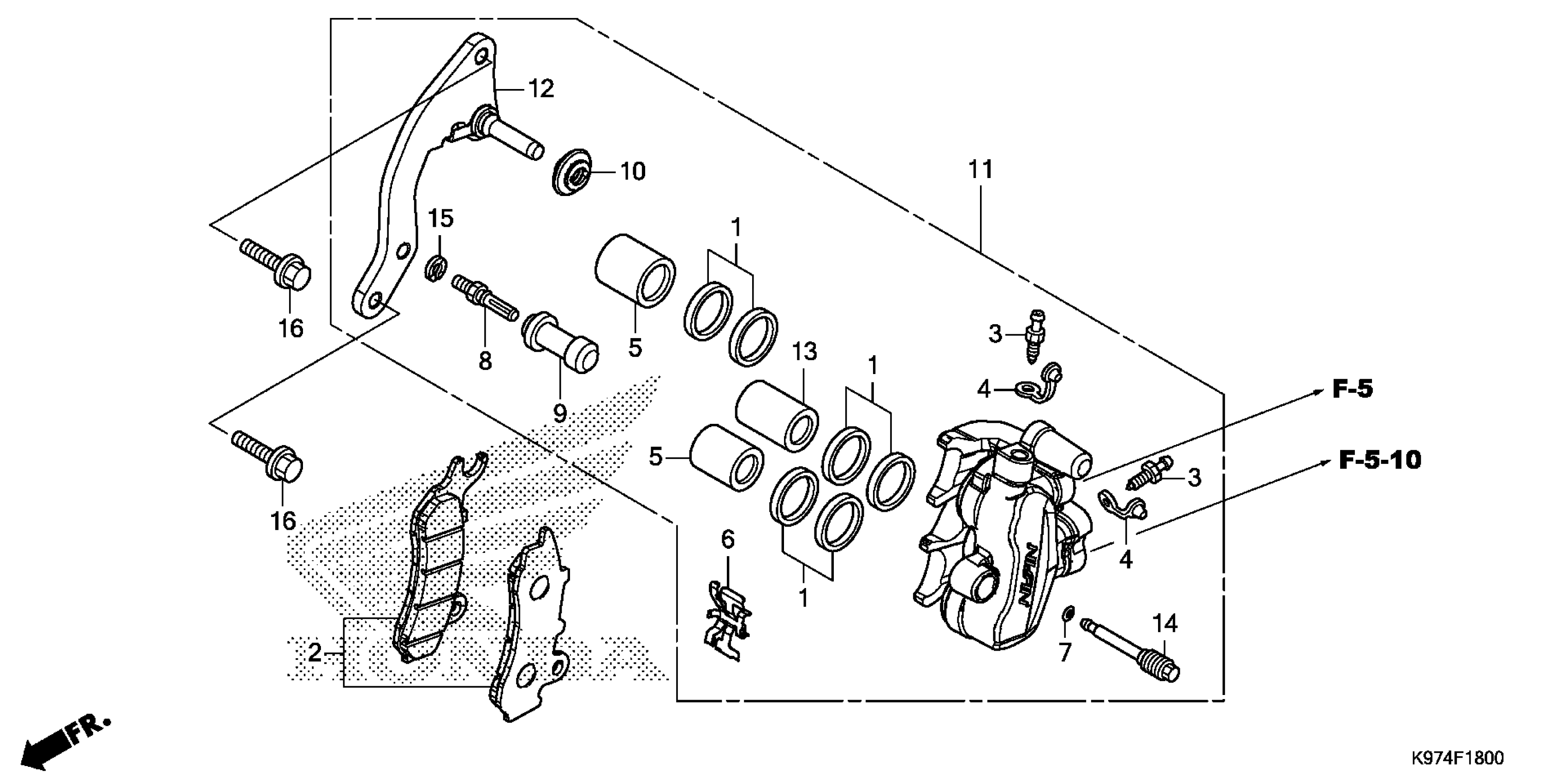

Honda PCX150AC (19) MOTOR SCOOTER, VNM, VIN# RLHKF300-KY000001 TO RLHKF300-KY099999 FRONT BRAKE CALIPER (1) Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.04

PAD SET, FR. (NOT AVAILABLE) This part replaces 06455-KRE-K01.

06455-KRE-K02

$27.81

PAD SET, FR. (NOT AVAILABLE)

06455-KRE-K02

$27.81

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

$5.03

PISTON, A (22)

45107-KPN-E21

$13.49

PAD SPRING

45108-KPN-E21

$3.92

RING, STOPPER

45111-MAJ-G41

$3.78

BOLT, PIN

45131-GZ0-006

$8.58

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.43

BOOT B

45133-MA3-006

$5.43

CALIPER SUB-ASSY., L. FR.

45150-K96-J01

$86.51

BRACKET SUB-ASSY., L. FR.

45190-K96-V01

$13.83

PISTON, B (22)

45207-KPN-E21

$13.95

PIN, HANGER

45215-KPH-951

$2.77

WASHER, WAVE (NISSIN)

45216-166-006

$2.26

BOLT, FLANGE (8X28)

90131-K97-T00

$1.18
