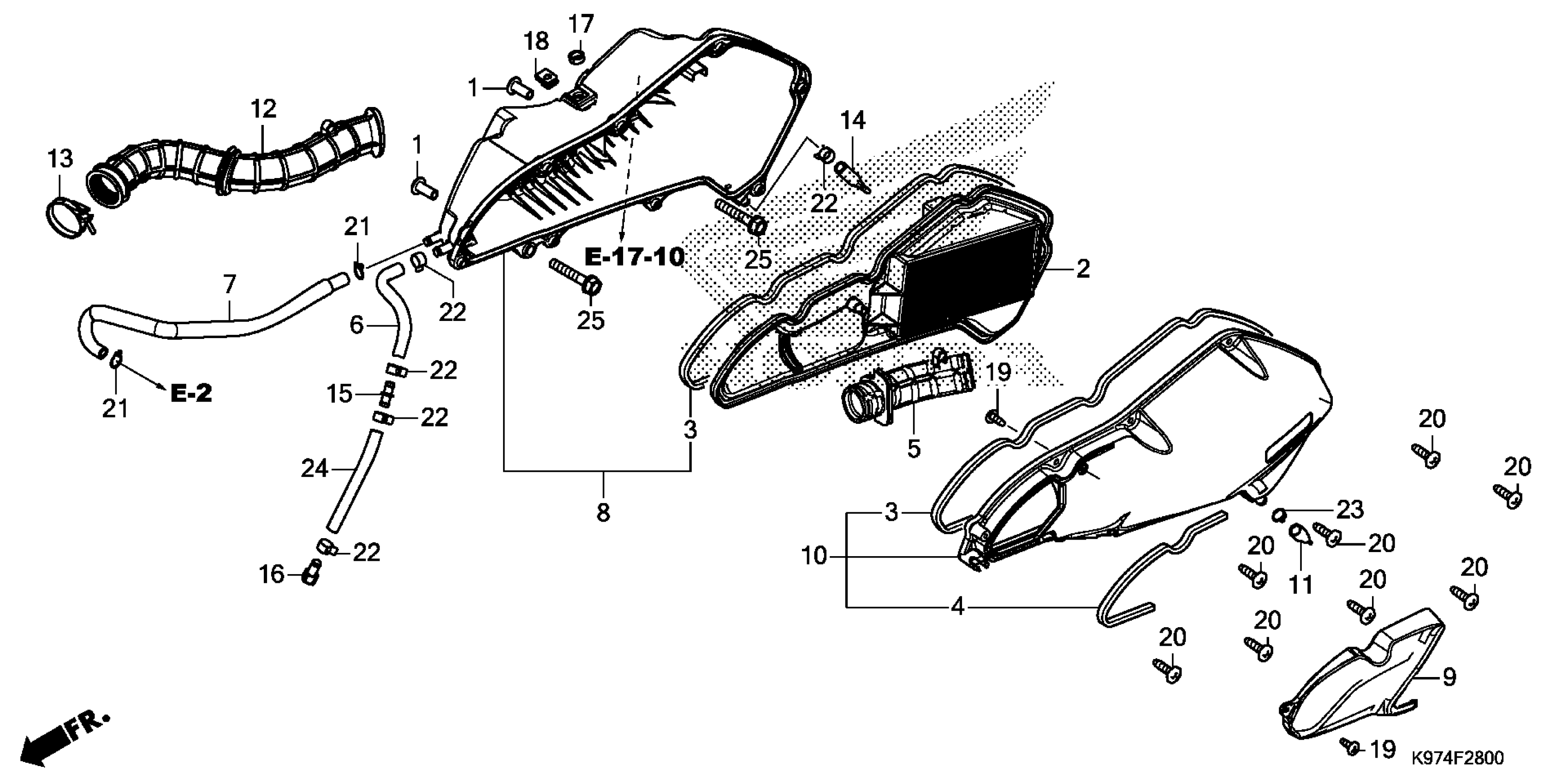

Honda PCX150AC (19) MOTOR SCOOTER, VNM, VIN# RLHKF300-KY000001 TO RLHKF300-KY099999 AIR CLEANER Diagram

Description

Price

COLLAR, AIR CLEANER SETTING

17208-GFM-970

$2.66

ELEMENT, AIR CLEANER

17210-K97-J00

$8.24

SEAL, AIR/C

17213-K97-T00

$2.88

SEAL, AIR/C DUCT

17214-K97-T00

$2.09

DUCT, AIR/C

17215-K97-T00

$7.58

TUBE, BREATHER DRAIN

17217-K97-T00

$3.92

TUBE, BREATHER

17218-K97-T00

$7.71

CASE SUB-ASSY.

17225-K97-J00

$11.17

COVER, AIR/C DUCT

17234-K97-T00

$4.49

COVER SUB-ASSY., AIR CLEANER

17235-K97-J00

$9.09

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.06

TUBE

17253-K97-T00

$27.65

BAND, CONNECTING TUBE (40)

17254-KVB-T00

$1.82

TUBE, DRAIN

17261-KVB-T00

$1.37

JOINT, BREATHER TUBE

17359-K28-910

$3.11

PLUG, BREATHER TUBE

17370-419-700

$3.73

COLLAR, RR. FENDER

80108-K45-N40

$1.25

NUT, CLIP (6MM)

90311-MT3-000

$5.76

SCREW, TAPPING (4X12)

93903-24380

Unavailable

SCREW, TAPPING (5X20)

93903-25480

$0.94

CLIP, TUBE (B12.5)

95002-02130

$1.11

CLAMP, TUBE (D12)

95002-41200-08

$2.41

CLIP, TUBE (C12)

95002-80000

$0.45

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable

BOLT, FLANGE (6X35)

95701-06035-00

$1.97
