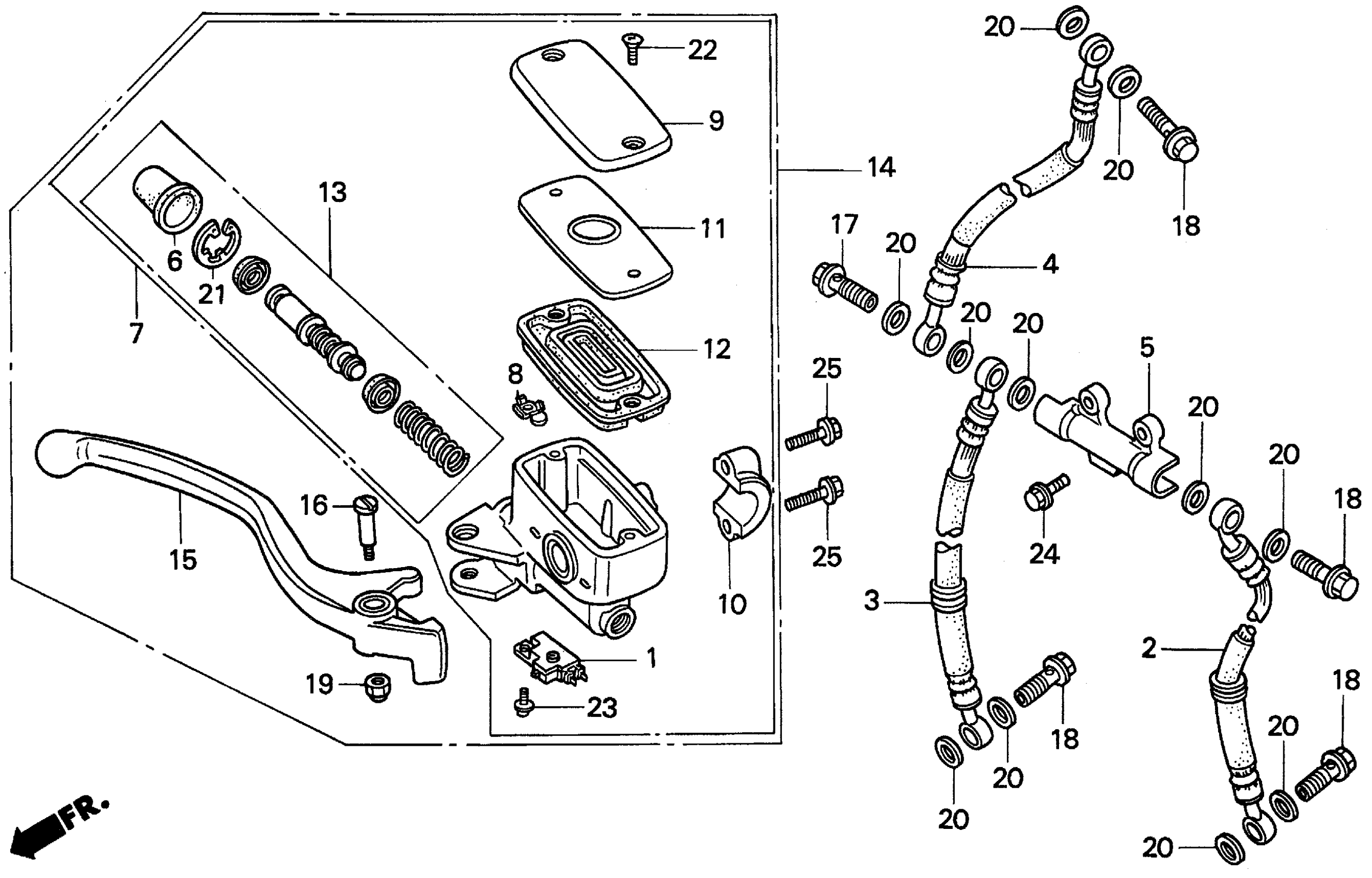

Honda PC800AC (94) PACIFIC COAST, JPN, VIN# JH2RC341-RM200001 TO JH2RC341-RM200220 FR. BRAKE MASTER CYL Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$20.62

2

HOSE, L. FR. BRAKE

45124-MR5-013

Unavailable

3

HOSE, R. FR. BRAKE

45125-MR5-013

Unavailable

4

HOSE B, FR. BRAKE

45126-MR5-013

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

BOOT

45504-410-003

$11.68

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MR5-305

Unavailable

8

PROTECTOR

45512-MA6-006

$4.26

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$21.50

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

PLATE, DIAPHRAGM

45518-MM5-006

$10.23

12

DIAPHRAGM

45520-MM5-006

$14.50

13

MASTER CYLINDER SET

45530-MA4-671

$45.69

15

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.17

15

LEVER, R. HANDLEBAR

53175-MR5-003

$15.64

16

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.05

17

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.29

18

BOLT, OIL (10X22)

90145-MS9-612

$7.29

19

NUT, CAP (6MM)

90201-428-900

$2.15

19

NUT, CAP | Use up to Frame SN RM200200 This part replaces 90215-GM0-000.

90201-428-900

$2.15

20

WASHER, OIL BOLT

90545-300-000

$6.06

21

CIRCLIP

90651-MA5-671

$2.48

22

SCREW, FLAT (4X12)

93600-04012-0G

$0.94

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.94

23

SCREW-WASHER (4X12) | Use up to Frame SN RM200200

93893-04012-08

$1.38

23

SCREW-WASHER (4X12) | Use up to Frame SN RM200200 This part replaces 93893-04012-18.

93893-04012-08

$1.38

23

SCREW-WASHER (4X12) | Use from Frame SN RM200201

93893-04012-07

$1.38

23

SCREW-WASHER (4X12) | Use from Frame SN RM200201 This part replaces 93893-04012-17.

93893-04012-07

$1.38

24

BOLT, FLANGE (6X20)

95701-06020-07

Unavailable

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.78
