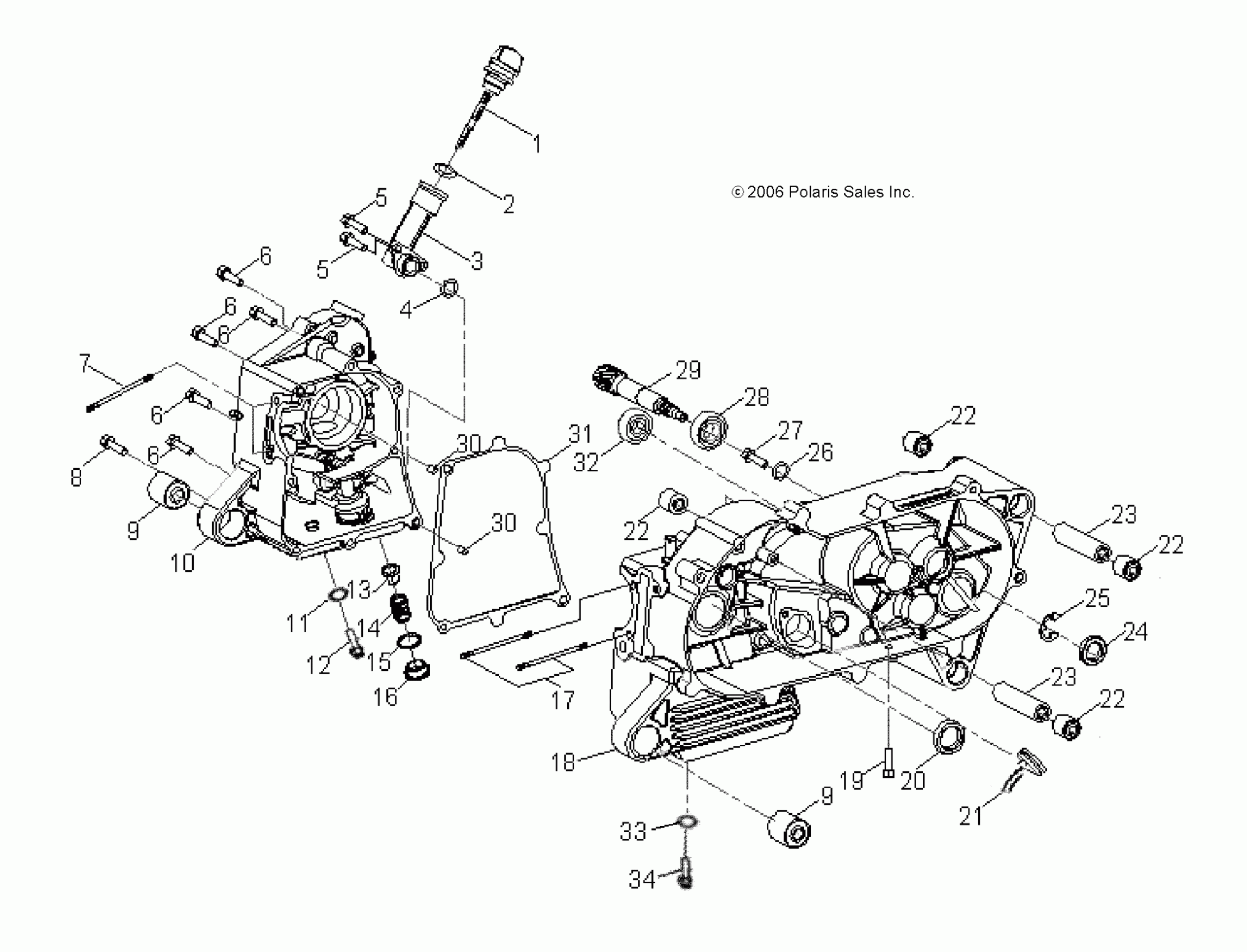

Polaris OUTLAW 50 - A11KA05AB/AD ENGINE, CRANKCASE - A11KA05AB/AD (49ATVCRANKCASE07PRED50) Diagram

#

Description
Price

-

ASM., ENGINE, 4 STROKE, W/O CARB

0454807

Unavailable

1

DIPSTICK, OIL

0453542

$24.27

2

O-RING

0453508

$3.22

3

Neck, Oil Filler

0454687

$48.87

4

O-RING

0453827

$2.02

5

BOLT

0452413

$4.35

5

BOLT

0452413

$4.35

6

BOLT

0453612

$3.97

6

BOLT

0453612

$3.97

6

BOLT

0453612

$3.97

6

BOLT

0453612

$3.97

6

BOLT

0453612

$3.97

7

STUD

0453844

$6.35

8

BOLT

0453614

$3.97

9

BUSHING, RUBBER

0450587

$12.70

9

BUSHING, RUBBER

0450587

$12.70

10

Crankcase, RH

0454688

Unavailable

11

Washer, Flat [Engine Oil Drain]

0452133

$4.74

12

Bolt [Engine Oil Drain]

0452132

$5.99

13

SCREEN

0452369

$16.14

14

SPRING, SCREEN

0452370

$16.14

15

O-RING

0452371

$1.99

16

Cap, Oil Fill

0454689

$33.24

17

STUD

0453845

$7.14

18

Crankcase, LH

0454690

$494.99

19

BOLT

0454069

$3.17

20

SEAL, OIL

0453522

$28.32

21

BUSHING, VENT, RUBBER

0453847

$7.14

22

BUSHING, RUBBER

0451139

$7.14

22

BUSHING, RUBBER

0451139

$7.14

22

BUSHING, RUBBER

0451139

$7.14

22

BUSHING, RUBBER

0451139

$7.14

23

SPACER, COLLAR

0453617

$12.70

23

SPACER, COLLAR

0453617

$12.70

24

Seal, Oil

0450200

$12.13

25

CIRCLIP

0450198

$4.76

26

WASHER, FLAT

0453460

$4.76

27

BOLT

0450158

$5.65

28

BEARING

0450199

$31.75

29

SHAFT, DRIVE

0453456

$84.98

30

PIN, DOWEL

0452342

$3.97

30

PIN, DOWEL

0452342

$3.97

31

GASKET

0453419

$11.32

32

BEARING, BALL

0450254

$23.81

33

Washer, Flat [Transmission Oil Drain]

0452133

$4.74

34

Bolt [Transmission Oil Drain]

0452132

$5.99
