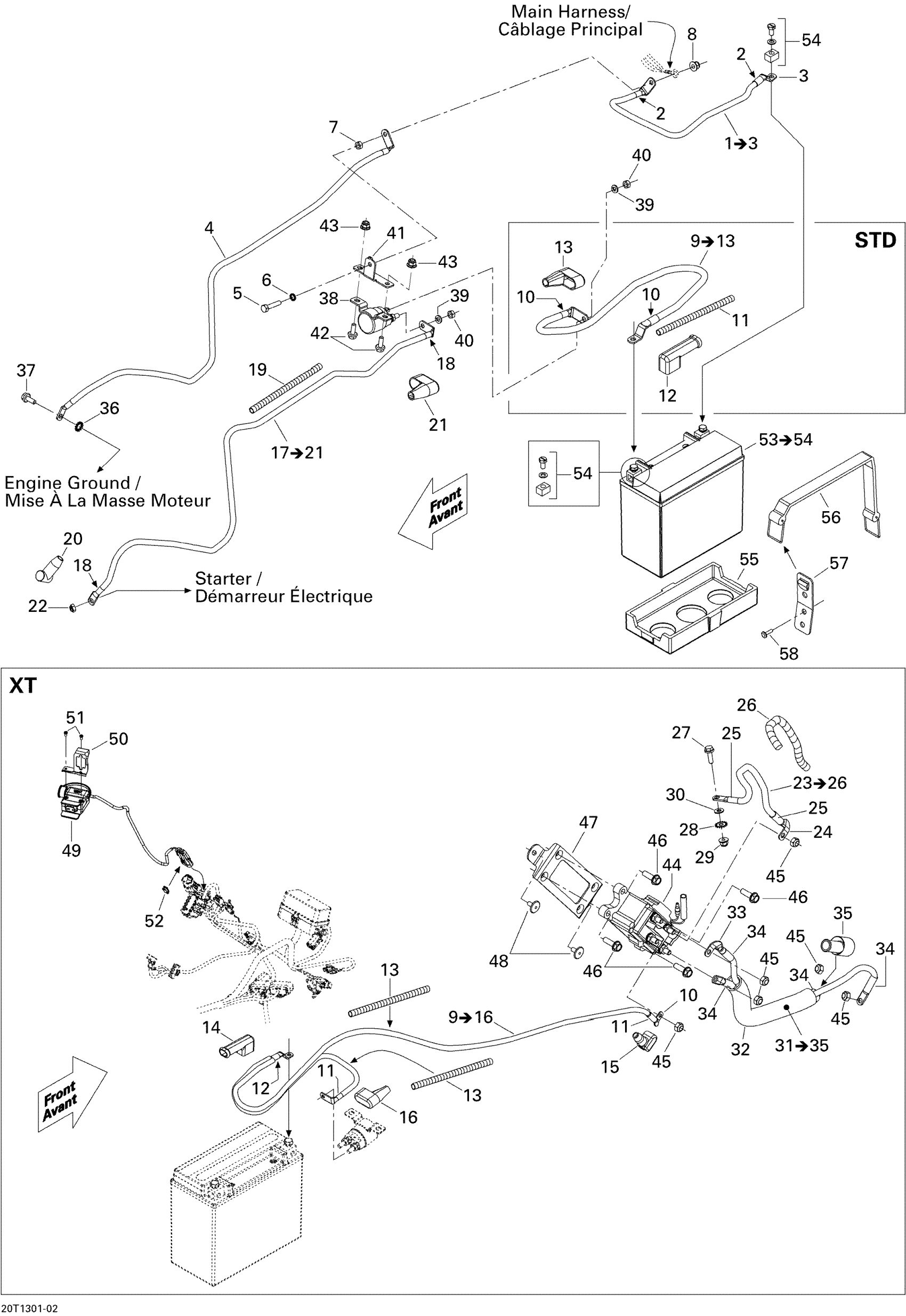

Can-Am Outlander STD, XT, 400 EFI, 2013 Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.05

2

Was 710000483 Heat Shrink Tubing

219704447

$74.58

3

Open Barrel | STD Models

710000518

$10.82

4

Ground Cable | Includes 4 to 6

710001443

Unavailable

5

Hex. Screw M6 X 25

207162544

$1.05

6

External Serrated Lock Washer 6 mm

234461608

$0.92

7

Hex. Nut M6

232061414

$0.44

8

Hex. Flange Nut M6

233061414

$1.34

9

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

$32.28

10

Was 710000483 Heat Shrink Tubing

219704447

$74.58

11

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

12

Protector Cap | STD Models

710001829

$9.72

13

Protector Cap | STD

710001817

$10.83

9

POSITIVE CABLE ASS'Y - Call your local BRP dealership | XT, Includes 13 to 21

710001823

$46.12

10

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

11

Was 710000483 Heat Shrink Tubing

219704447

$74.58

12

Shrink Tubing | XT Models

275500578

Unavailable

13

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

14

Protector Cap | STD Models

710001829

$9.72

15

Protector Cap | XT Models

710001828

Unavailable

16

Protector Cap | STD

710001817

$10.83

17

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 27 to 31

710001820

Unavailable

18

Was 710000483 Heat Shrink Tubing

219704447

$74.58

19

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

20

Protector Cap

710000526

$10.14

21

Protector Cap | STD

710001817

$10.83

22

Elastic Stop Nut M6

232561414

$1.55

23

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

24

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

25

Was 710000483 Heat Shrink Tubing

219704447

$74.58

26

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

27

Hex. Flange Screw M6 X 20

207662044

$1.66

28

Lock Washer Serrated M6

250200041

$0.92

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

Flat Washer

224061121

$0.44

31

WINCH CABLE ASS'Y - Call your local BRP dealership | XT, Includes 47 to 52

710001251

$53.05

32

Was 409901600 Tubing 19mm

219704398

$89.97

33

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

34

Was 710000483 Heat Shrink Tubing

219704447

$74.58

35

Protector Cap | XT

515175919

$16.89

36

External Serrated Lock Washer 6 mm

234461608

$0.92

37

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

38

Starter Relay

710007777

$46.89

39

Lock Washer Helical M6

234161601

$0.92

40

Hex. Nut M6

232061600

$0.91

41

SOLENOID SUPPORT - Call your local BRP dealership

710001260

$45.35

42

Hex. Flange Screw M6 X 12

207661244

$1.70

43

Hex. Flange Nut M6

233061414

$1.34

44

Winch Solenoid | XT Models

710001000

$117.66

45

Elastic Stop Nut M6

232561414

$1.55

46

Hexagonal Head Screw

210262050

$1.74

47

WINCH RELAY SUPPORT - Call your local BRP dealership | XT

710001813

$9.74

48

Pop Rivet 3/16"

390406500

$0.70

49

Winch Switch | XT, XTP, XMR, LTD,

710002724

$161.51

50

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

51

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

52

Clip

710000992

$4.00

53

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

54

Battery Bolt Kit

250000282

$2.95

55

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

56

Retainer Strap

293850097

$9.26

57

Strap Clip

293850030

$8.97

58

Pop Rivet 3/16"

390402400

$0.25
