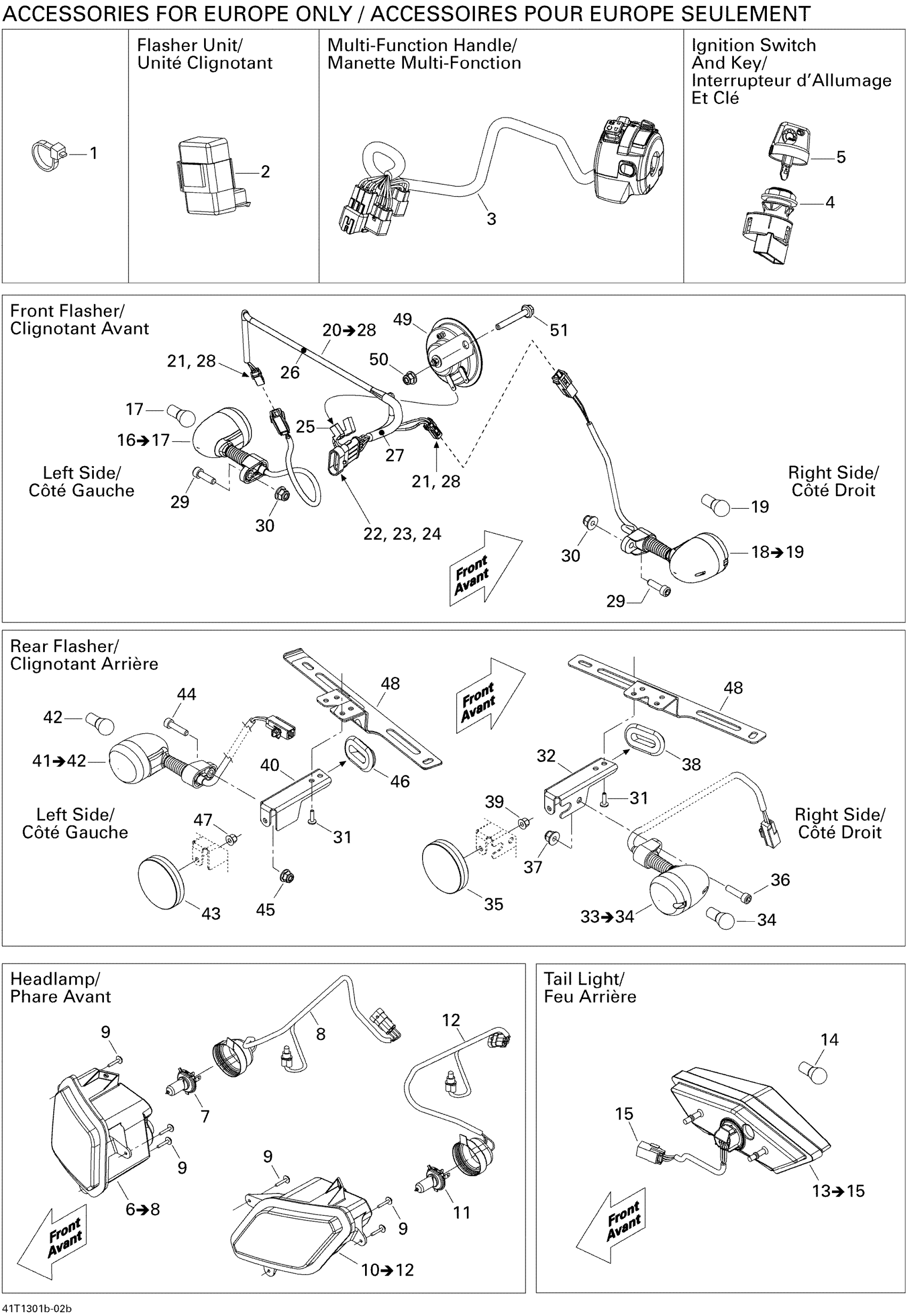

Can-Am Outlander STD, XT, 400 EFI, 2013 Electrical Accessories 2 Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$0.85

2

Flasher Unit

710003239

$78.43

3

Multi-Function Handle

710004040

$166.12

4

Ignition Switch | Includes 16 to 17

710002324

$77.66

5

Black, Electronic Key

710000817

$55.35

6

RH Headlamp Ass'y | Includes 11 to 13

710000861

$124.58

7

Bulb, 12V 35/35W

710000871

$32.28

8

Headlamp Harness

710000923

$46.12

9

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

10

LH Headlamp Ass'y | Includes 14 to 16

710000862

$124.58

11

Bulb, 12V 35/35W

710000871

$32.28

12

Headlamp Harness

710000923

$46.12

13

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$55.35

14

Bulb

520000758

$7.49

15

Male Housing, 3 Circuits

515175494

$15.35

16

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

17

Bulb

415129258

$8.69

18

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

19

Bulb

415129258

$8.69

20

FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26

710001495

Unavailable

21

Female Terminal

515175231

$4.12

22

Male Terminal | Europe Models

409012900

$3.22

23

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

24

Wire Seal

278001013

$2.72

25

Female Terminal

409010300

$4.12

26

Tubing 6 Mm 3000Mm Long

219704425

$13.14

27

Was 409901700 Tubing (9 mm)

219704399

$79.97

28

Female Terminal Housing, 2 Circuits

515176296

$5.11

29

Socket Head Screw M6 X 25

205062544

$0.88

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

Pop Rivet 3/16"

390402400

$0.25

32

BRACKET - Call your local BRP dealership

710001329

Unavailable

33

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

34

Bulb

415129258

$8.69

35

Red Reflector

705011221

$12.32

36

Socket Head Screw M6 X 20

205062044

$1.07

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Oblong Grommet

705003668

$4.54

39

Hex. Flange Elastic Nut M5

233251414

$1.66

40

BRACKET - Call your local BRP dealership

710001330

Unavailable

41

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

42

Bulb

415129258

$8.69

43

Red Reflector

705011221

$12.32

44

Socket Head Screw M6 X 20

205062044

$1.07

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

46

Oblong Grommet

705003668

$4.54

47

Hex. Flange Elastic Nut M5

233251414

$1.66

48

BRACKET - Call your local BRP dealership

710001241

Unavailable

49

Horn

710004791

$37.66

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

51

Hex. Flange Screw M6 X 45

207664544

$1.07
