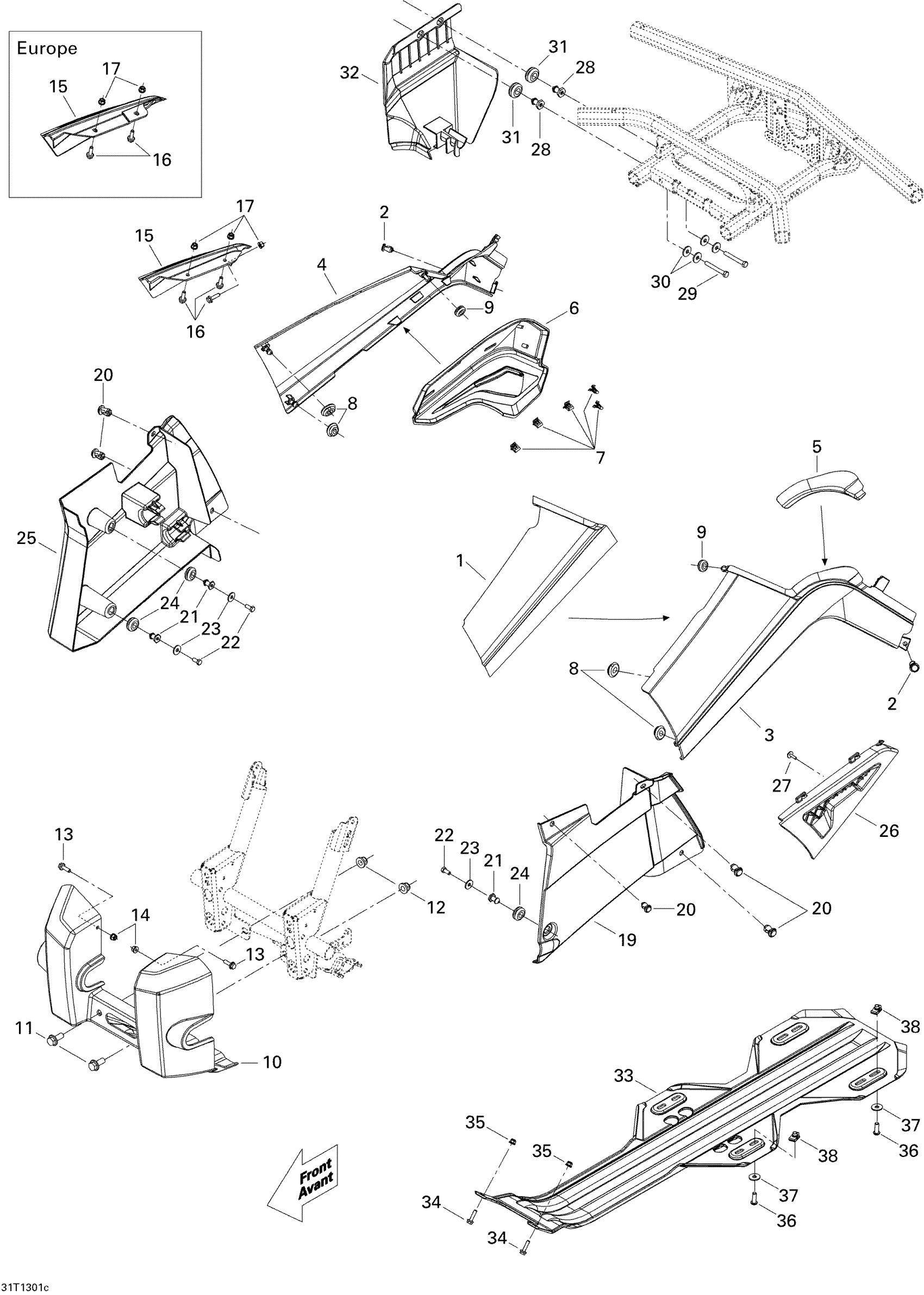

Can-Am Outlander STD, XT, 400 EFI, 2013 Body And Accessories 3 Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.21

3

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705003498

$35.35

3

RED LH SIDE PANEL - Call your local BRP dealership | Viper Red

705003499

Unavailable

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003501

$33.05

4

Red RH Side Panel | Viper Red

705003502

$41.51

5

Reflective Sheet

705002793

Unavailable

6

MUFFLER COVER - Call your local BRP dealership

705002664

$15.35

7

Edge Clip

517302785

$0.70

8

Oval Washer

705000321

$4.64

9

Grommet

705003264

$3.43

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

10

GUARD PLATE - Call your local BRP dealership

705003496

$34.58

11

Socket Screw M10 X 35

205003544

$1.39

11

Hex. Flange Screw M10 X 25

207602544

$1.33

11

Hex. Flange Screw M10 X 25

207602544

$1.33

12

Hex. Flange Elastic Nut M10

233201414

$1.26

13

Hex. Flange Screw M6 X 20

207662044

$1.66

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

LEVER INDICATOR - Call your local BRP dealership

705001529

$14.65

15

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

$23.82

16

Hex. Flange Screw M6 X 20

207662044

$1.66

16

Hex. Flange Screw M6 X 20

207662044

$1.66

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

LH Inner Fender

705000652

$36.89

20

Tuflok Plastic Rivet

293150230

$1.21

21

Knob

517303439

$3.73

22

Torx Screw K50 X 16

250000720

$1.39

23

Washer | DS 650 X

391301600

$0.48

24

Grommet

709000582

$4.38

25

INNER FENDER - Call your local BRP dealership

705002640

Unavailable

26

CONSOLE CAP - Call your local BRP dealership

705002493

$9.74

27

Screw M4 X 16

250000725

$2.87

28

Knob

517303439

$3.73

29

Hex. Screw K50 X 45

241154540

$1.74

30

Washer | DS 650 X

391301600

$0.48

31

Grommet

709000582

$4.38

32

Thread Cover

705004036

$19.20

33

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

$0.53

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

37

Flat Washer 8 mm

234082410

$1.11

38

Panel Nut M8

250100111

$3.38
