Description

Price

1

LH SWING ARM - Call your local BRP dealership

706001185

$258.43

2

Rh Swing Arm

706003425

$290.74

3

Sway Bar

706001077

$110.74

4

Ball Bearing

293350037

$128.43

5

Circlip

293370041

$9.98

6

Nut

706000221

$23.05

7

Cover

706000749

$15.35

8

Circlip 45 mm

293370027

$4.98

9

Lever

706000548

$36.89

10

Washer

250200045

$7.37

11

Elastic Stop Nut M18

232591414

$3.48

12

LH PROTECTOR - Call your local BRP dealership

706000333

$14.06

13

RH PROTECTOR - Call your local BRP dealership

706000334

$14.06

14

Rear Shock

706000391

$171.51

15

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

706000649

Unavailable

16

Adjuster Ring

706002356

$17.66

17

Spring Stopper

706200881

$10.30

18

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

19

PROTECTOR - Call your local BRP dealership

503139800

$6.22

20

Cap

706200785

$4.42

21

Hex. Flange Screw M10 X 55

207605544

$2.78

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

24

Oetiker Clamp

293650162

$8.45

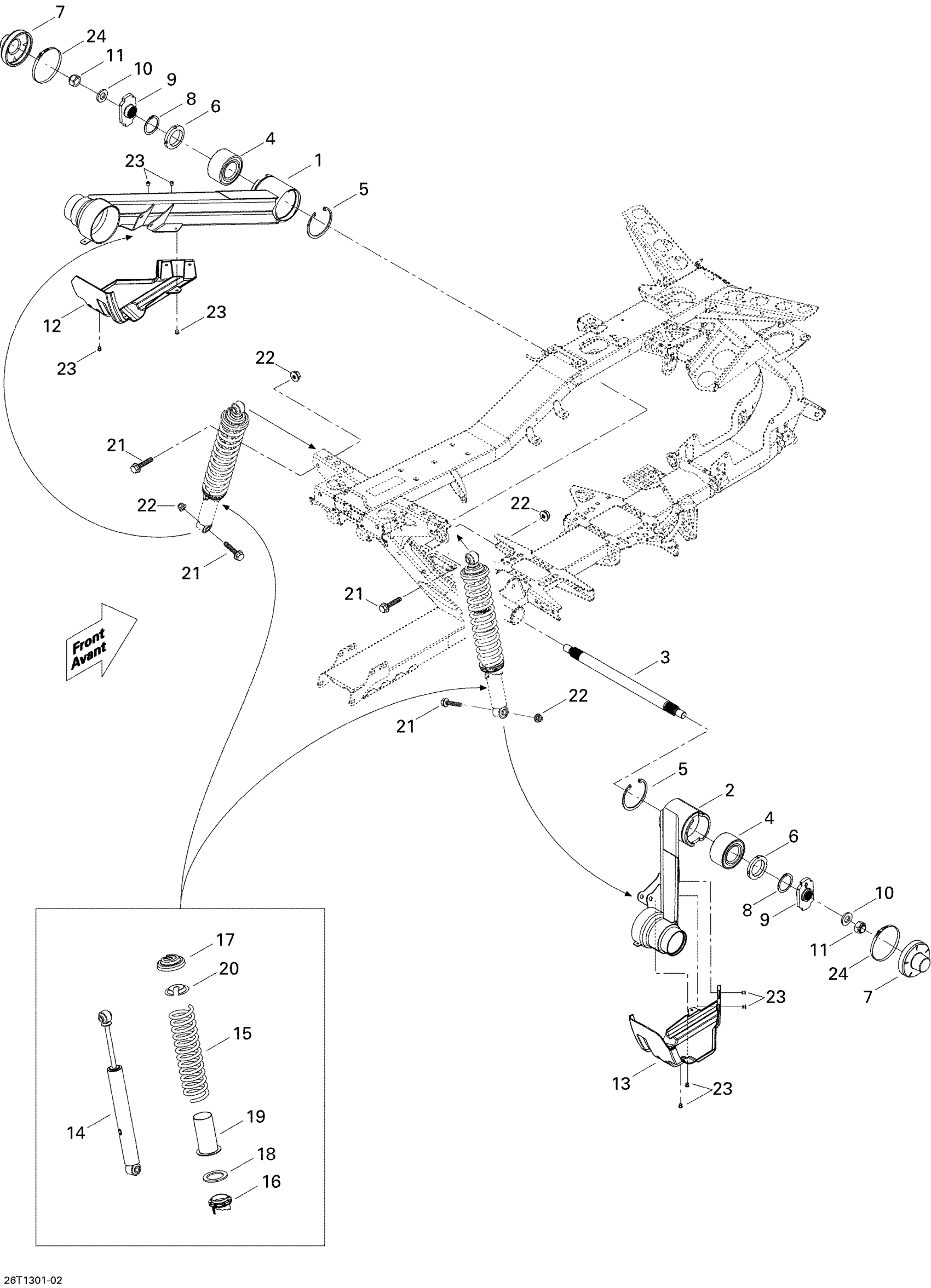

Can-Am Outlander STD, XT, 400 EFI, 2013 Rear Suspension Diagram

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership
