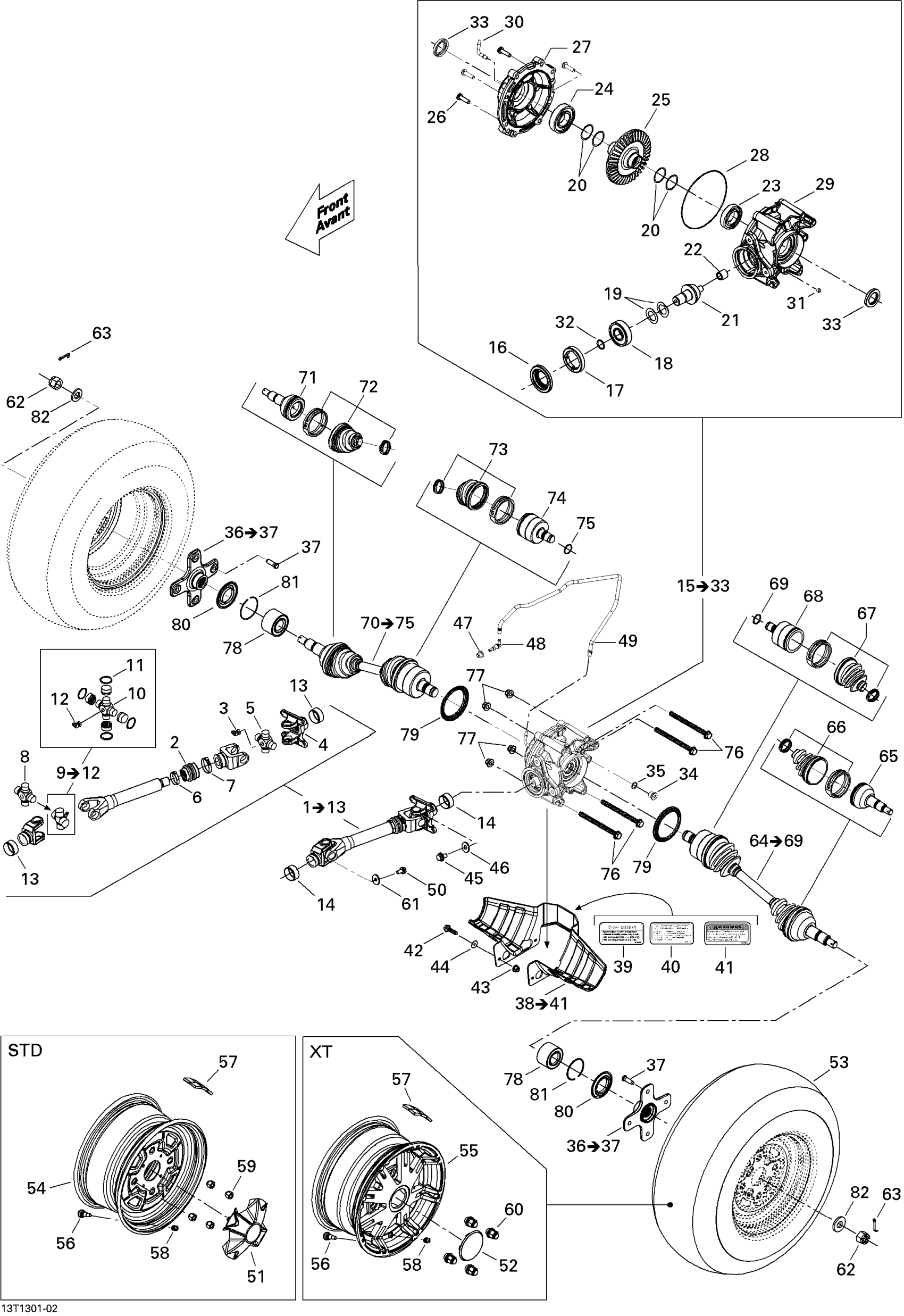

Can-Am Outlander STD, XT, 400 EFI, 2013 Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft | Includes 1 to 9

703500825

$241.01

2

Rubber Boot

715900118

$13.28

3

Grease Fitting

715900184

$4.09

4

FLANGE - Call your local BRP dealership

715900291

Unavailable

5

Universal Joint

715900326

$64.15

6

Oetiker Gear Clamp 36.1MM

509000045

$3.55

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

8

U-Joint

715900183

$24.60

9

Ens. Croix*U-Joint Cross Kit

715900325

$65.64

10

U-Joint

715900183

$24.60

11

SNAP RING - Call your local BRP dealership

715900117

Unavailable

12

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

13

Wear Ring | 4X4

705400036

$24.60

14

Wear Ring | 4X4

705400036

$24.60

15

Differential Kit | Includes 10 to 29

703501033

$967.13

16

Oil Seal | 4X4

705401481

$17.88

17

Nut

705502059

$30.57

18

Ball Bearing | 4X4

705500260

$29.82

19

Pinion Gear Shim 1.67 mm

705502061

$15.64

19

Pinion Gear Shim

705501162

$14.72

20

Differential Shim 0.02 mm

705502060

$12.64

21

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$413.40

22

Needle Bearing

705501408

$64.90

23

Ball Bearing

705502737

$44.75

24

Ball Bearing

705502738

$55.19

25

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$413.40

26

Screw | 4X4

705401601

$8.67

27

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

28

Seal | 4X4

705500265

$15.64

29

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

30

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

31

Drain Plug | 4X4

705500894

$10.24

32

O-Ring | 4X4

705500267

$6.06

33

Oil Seal

705501996

$20.12

34

Fill Level Plug | 4X4

705500504

$7.61

35

Copper Washer | 4X4

705500506

$0.36

36

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

37

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

38

Protector Kit | Includes 38 to 39

703500722

$60.42

39

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

WARNING DECAL, TRAILER - Call your local BRP dealership | Europe

704901905

Unavailable

42

Hex. Flange Screw M6 X 25

207662544

$0.53

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

44

Flat Washer

250200082

$0.35

45

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

46

Flat Washer M12

250200102

$1.74

47

Grommet

293720029

$1.13

48

Elbow Male Connector

414580600

$3.50

49

Polyurethane Hose 10000Mm Long

219704410

$46.12

50

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

51

Wheel Cap | STD

705400563

$15.64

52

WHEEL CAP - Call your local BRP dealership

705400680

$11.57

53

Tire 25X10R12 MST | Traxter CVT STD

705503225

$143.25

53

Rear Tire 280/60R12 | STD EUR

705502165

$188.78

53

TIRE_25X11R12 REAR - Call your local BRP dealership | XT

705500933

Unavailable

53

Rear Tire | XT

705500598

Unavailable

54

Black, Rim | STD

705501607

$184.30

55

RIM_12 INCH X 7,5 - Call your local BRP dealership | XT (Except Camo)

705500986

Unavailable

56

Rim Valve With Cap

705400193

$6.49

57

1/2 Oz Weight

219704465

$4.22

58

Valve Cap

293000110

$1.15

59

Steel Wheel Nut

250100042

$3.07

60

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.15

61

Washer

211200041

$2.63

62

Hex. Flange Castellated Nut M18

232291413

$2.82

63

Cotter Pin

250400036

$1.74

64

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

65

JOINT_CV EXT - Call your local BRP dealership | Up to February 2013

705501782

Unavailable

66

BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013

705501783

Unavailable

67

BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013

705501784

Unavailable

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Circlip

705501781

$5.10

70

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$226.84

71

JOINT_CV EXT - Call your local BRP dealership | Up to February 2013

705501782

Unavailable

72

BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013

705501783

Unavailable

73

BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013

705501784

Unavailable

74

Not Available As Spare Part - Friction Washer

Unavailable

75

Circlip

705501781

$5.10

76

Hex. Flange Screw M10 X 135

250001041

$4.46

77

Hex. Flange Elastic Nut M10

233201436

$1.74

78

Ball Bearing

293350150

$52.21

79

WEAR SLEEVE - Call your local BRP dealership

705500901

$9.97

80

Wear Sleeve | 4X4

705501121

$6.73

81

Circlip

293370019

$4.68

82

Conical Spring Washer M18

250200171

$5.28
