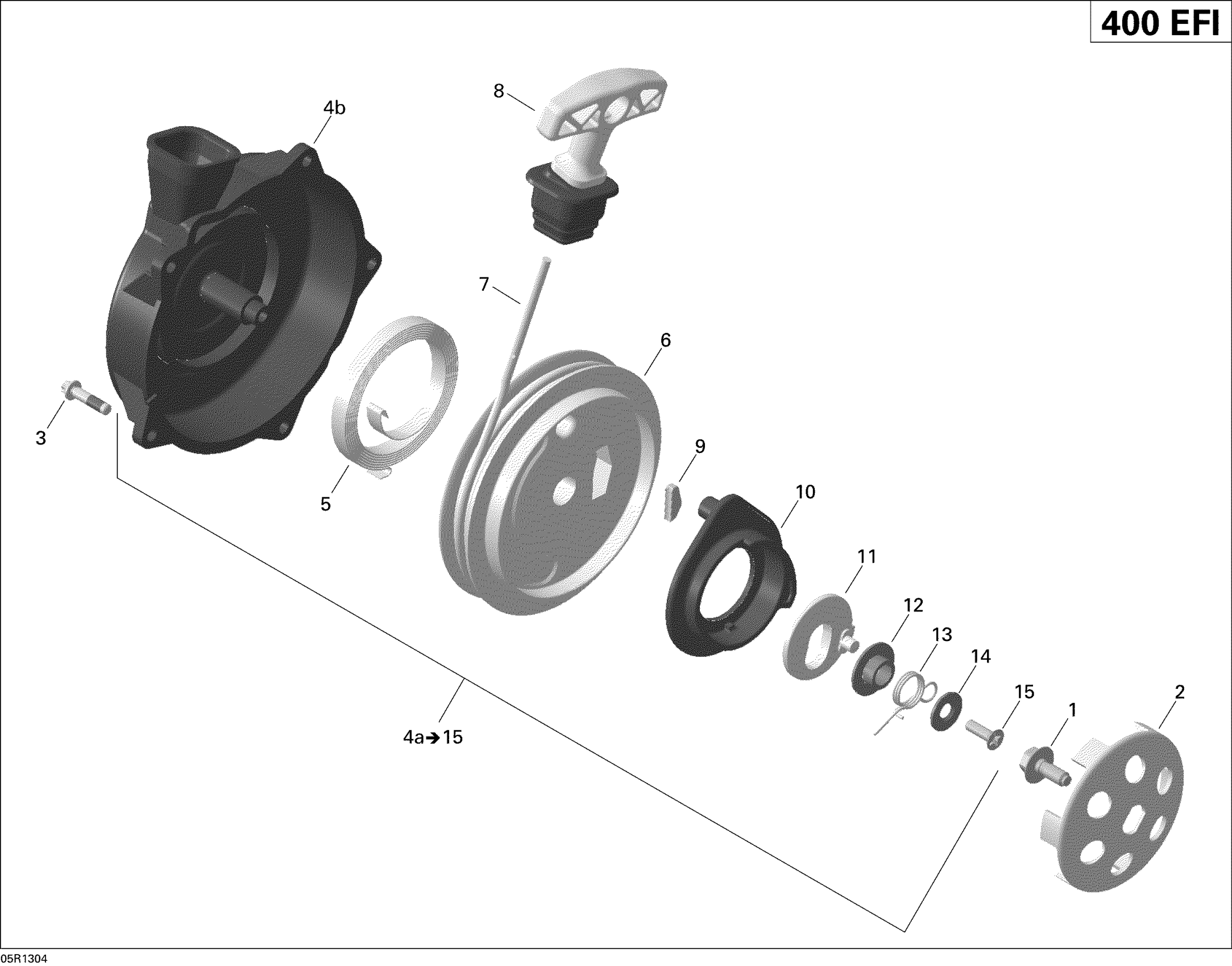

Can-Am Outlander STD, XT, 400 EFI, 2013 Rewind Starter Diagram

Description

Price

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.23

Starting Pulley

420852501

$28.43

Hex. Screw M6 X 25

420240034

$1.56

Starter Rope Housing Ass'y | Includes 4 to 15

715001034

$229.97

Starter Rope Housing

420610930

$59.97

Rewind Spring

420939115

$25.32

Rope Sheave

420852283

$51.97

Was 412500100 Rope-Starter

219704403

$10.15

Starting Grip With Rubber Buffer

420852555

$46.12

Key Clamp

420852070

$3.50

Pawl

420852299

$23.05

Lock Pawl

420852306

$16.89

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

Locking Spring

420938989

$18.43

Flat Washer

420244320

$7.37

PLASTITE SCREW M6 X 20 - Call your local BRP dealership

420241730

Unavailable
