Description

Price

1

Torx Flange Screw M8 X 65

420440402

$7.23

2

Torx Flange Screw M6 X 45

420440324

$0.81

3

Seal Washer

420230415

$1.77

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Oil Seal

420930392

$11.77

6

Torx Flange Screw M6 X 16

420440162

$3.11

7

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

8

O-Ring

420431580

$12.29

9

Not Available As Spare Part - Friction Washer

Unavailable

10

CLIP - Call your local BRP dealership

420960892

$1.51

11

Stator Plate, 420W

420685920

$296.99

12

MAGNETO FLYWHEEL - Call your local BRP dealership

420296903

$531.51

13

Torx Flange Screw M6 X 35

420440274

$0.83

14

Torx Flange Screw M6 X 16

420440162

$3.11

15

Inner Cable Cover

420251270

$10.98

16

Lock Washer, 22 mm

420945759

$1.55

17

Hex. Nut, M22 X 1.5

420842239

$14.27

18

Torx Flange Screw M6 X 16

420440162

$3.11

19

Camshft Position Sensor Ass'y

420265727

$108.89

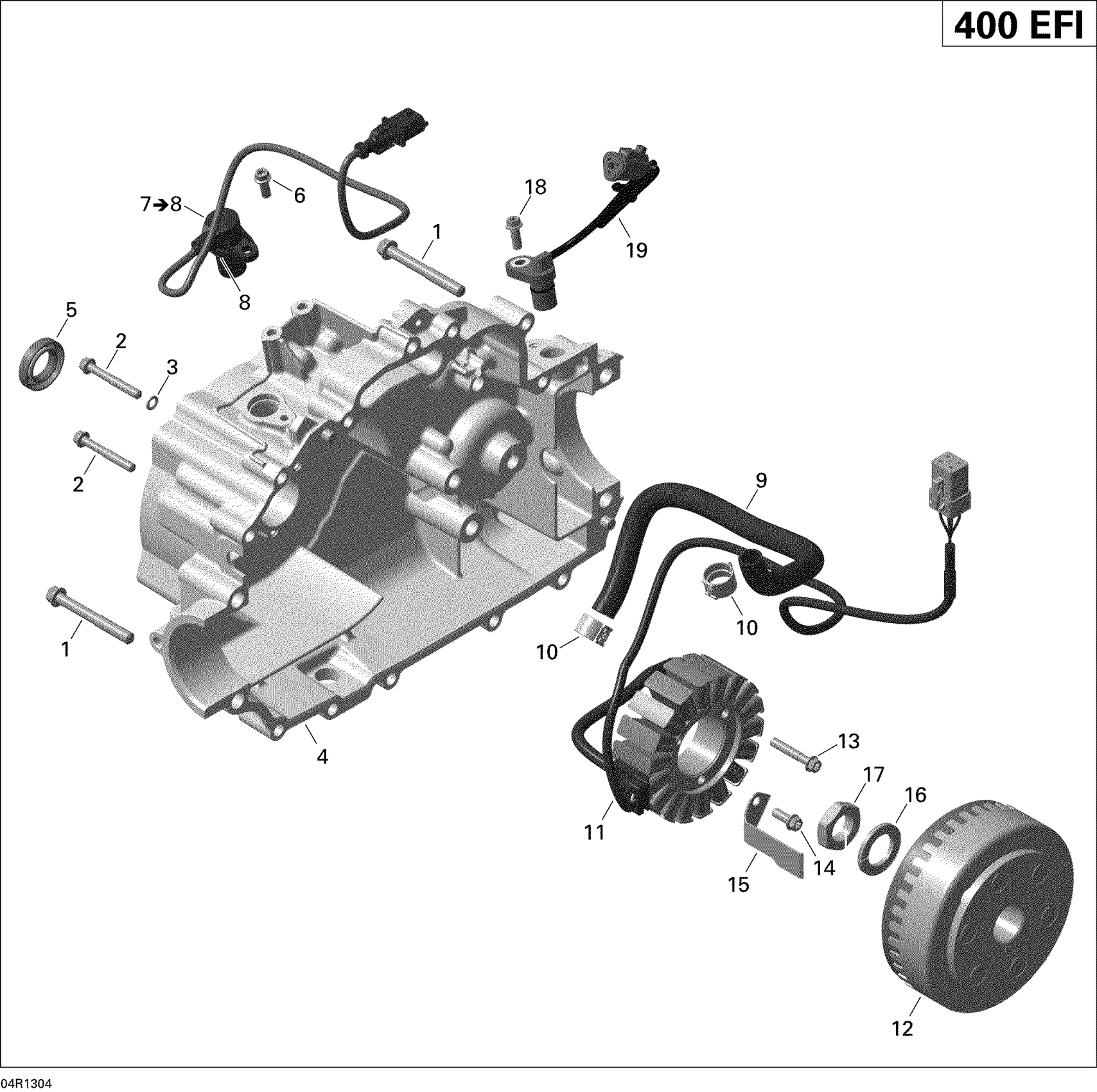

Can-Am Outlander STD, XT, 400 EFI, 2013 Magneto Diagram

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
