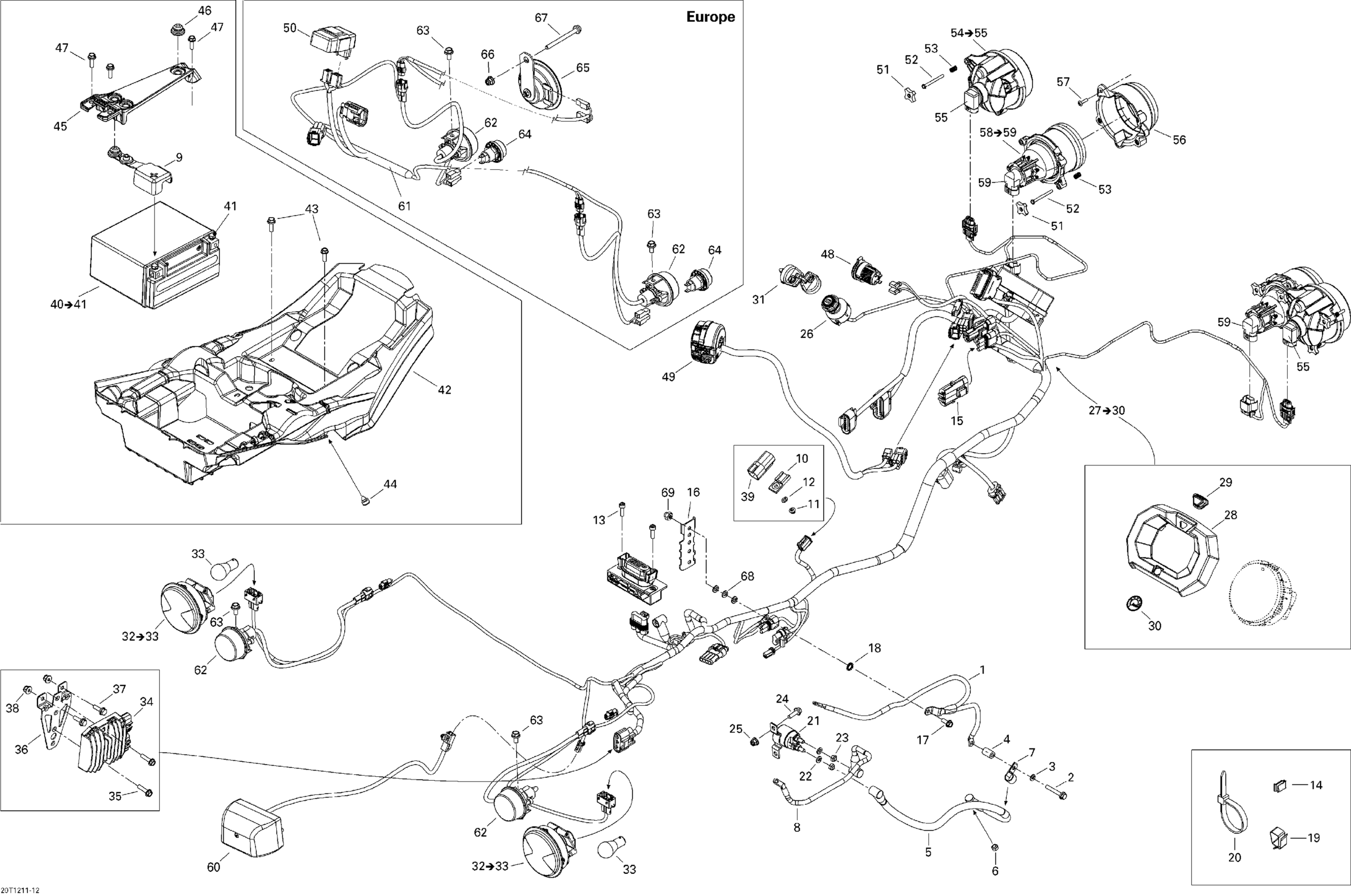

Can-Am Outlander STD, XT, 1000 EFI, 2012 Electrical System Diagram

#

Description
Price

1

Ground Cable

710004382

$17.88

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

6

Elastic Stop Nut M6

232561414

$1.55

7

Open Clamp

518321570

$5.85

8

Positive Cable

710004376

$43.25

9

Battery Cable Cap

710006729

$6.72

10

Clip

270000141

$8.33

11

Pop Rivet 3/16"

390402300

$0.73

12

Washer | DS 650 X

391301600

$0.46

13

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

14

Clip

710000992

$3.88

15

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

16

BRACKET - Call your local BRP dealership

710002567

Unavailable

17

Hex. Flange Screw M6 X 16

210261650

$1.22

18

External Serrated Lock Washer 6 mm

234461608

$0.92

19

Clip

414227300

$1.40

20

Tie-Rap 180 mm

414115200

$0.09

20

Tie Wrap 368 mm

293750008

$0.85

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

Tie-rap 627 mm

293750041

$0.87

21

Starter Relay

710007777

$45.49

22

Lock Washer Helical M6

234161601

$0.92

23

Elastic Stop Nut M6

232561414

$1.55

24

Hex. Flange Screw M6 X 20

207662084

$0.96

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Ignition Switch

710008400

$72.36

27

Calibrated Speedometer Ass'y | Includes 27 to 30

710003103

$443.25

28

Trim Ring

710002092

$8.73

29

Button

710001473

$11.81

30

BRP Logo13 mm

704904615

$9.66

31

Black, Electronic Key

710000817

$53.70

31

Black, Electronic Key

710000817

$53.70

31

Grey, Electronic Key

710002183

$53.70

32

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

33

Bulb

520000758

$7.49

34

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

34

Voltage Regulator | XT, XTP, LTD

710001191

$183.55

34

Voltage Regulator | XT, XTP, LTD

710001191

$183.55

35

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

36

Rectifier Support

710001752

$6.90

37

Hex. Flange Screw M6 X 20

207662044

$1.66

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

39

Diagnostic Connector

278002704

$15.57

40

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

41

Battery Bolt Kit

250000282

$2.95

42

BATTERY SUPPORT - Call your local BRP dealership

710002892

Unavailable

43

Hexagonal Head Screw

210262050

$1.74

44

Rubber Bumper

293830005

$5.33

45

Retaining Plate

710009129

$7.09

46

Stopper Rubber

705014429

$6.09

47

Hex. Flange Screw M6 X 20

207662084

$0.96

48

DC Outlet

710001248

$31.17

49

Multi-Function Handle

710004040

$158.93

49

Switch Kit | XT, XTP, XMR, LTD

703500920

$90.27

49

Handle Kit | STD

703500919

$69.37

50

Flasher Unit

710003239

$73.10

51

Handle

572106600

$9.03

52

Hex. Screw K40 X 45

250000718

$1.74

53

Spring

517168600

$6.70

54

Low Beam | Includes 54 to 55

710006177

$108.18

55

Bulb 12V 55W

715900141

$38.78

56

RH High Front Housing

710002291

$25.34

56

LH High Front Housing

710002292

$20.12

57

Phillips Screw K40 X 16

250000723

$0.81

58

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

59

Halogen Bulb

415129249

$38.78

60

License Plate Light | Europe

710005563

$117.88

61

Harness Ass'y | Includes 1 to R1, Europe

710002481

Unavailable

62

Flasher | Europe

710002047

$30.57

63

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

64

Day Light | Europe

710001726

$32.81

65

Horn

710004791

$36.54

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

67

Hex. Flange Screw M6 X 70

207667044

$0.70
