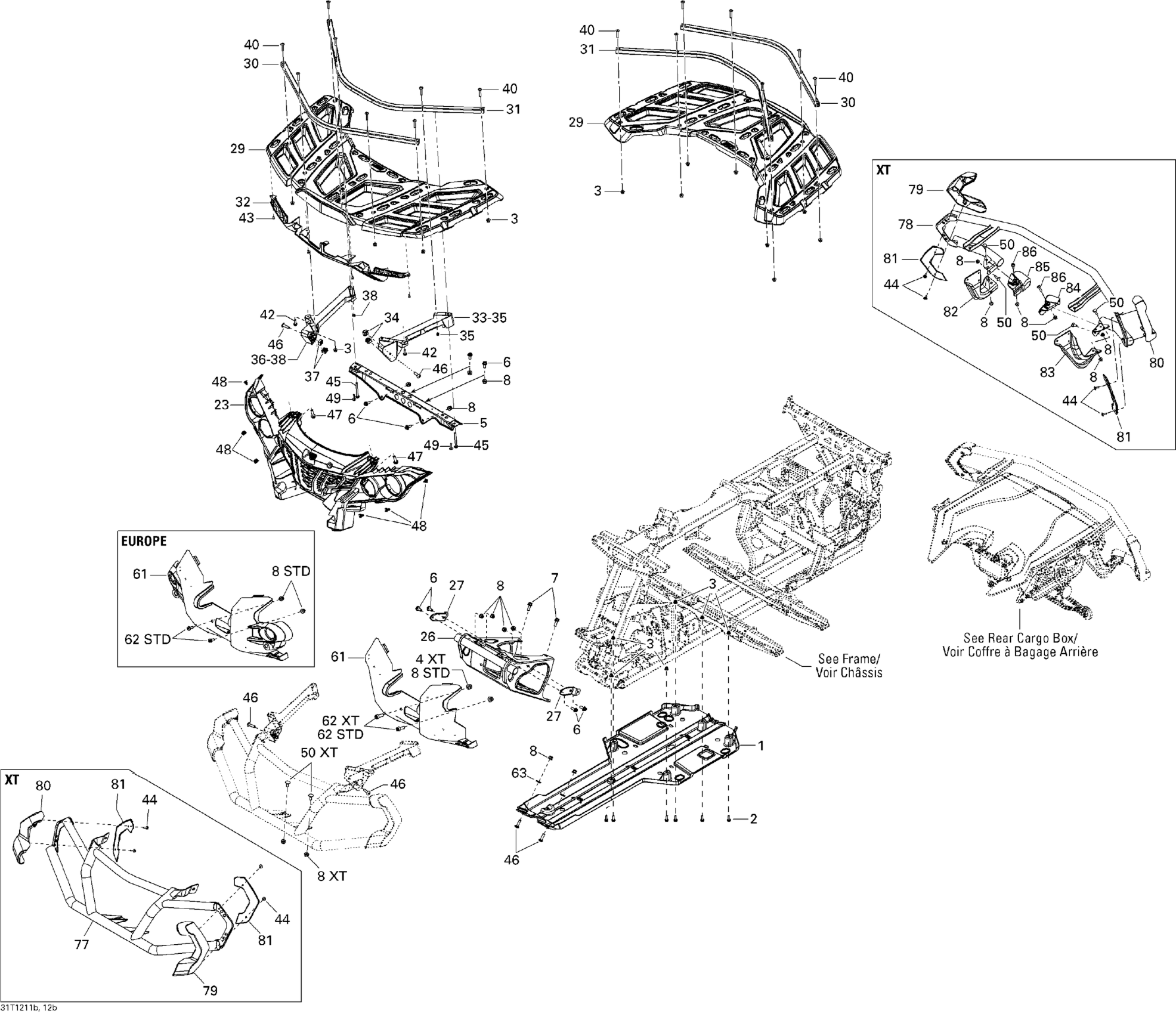

Can-Am Outlander STD, XT, 1000 EFI, 2012 Body And Accessories 2 Diagram

#

Description
Price

1

Protective Plate Kit

715002374

$59.67

2

Hex. Flange Screw M6 X 20

207662084

$0.96

3

Flange Elastic Nut M6

233261434

$3.61

4

Hex. Flange Elastic Nut M10

233201434

$1.63

5

Cargo Rack Center Support

705006812

$55.19

6

Hex. Flange Screw M8 X 20

207682044

$0.92

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

8

Hex. Flange Elastic Nut M8

233281434

$1.74

8

Hex. Flange Elastic Nut M8

233281434

$1.74

8

Hex. Flange Elastic Nut M8

233281434

$1.74

23

Fascia

705012822

$108.18

26

Front Bumper Support

705016893

$314.90

27

Lower Fender Support

705004565

$6.19

29

Luggage Rack Kit

715001852

$200.72

30

Sectional Bent Tube

705016640

$34.30

31

Bent Sectional Tube

705016092

$38.03

32

Lugage Rack Moulding

705004523

$21.61

33

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

34

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

35

Hex. Elastic Stop Nut M6

232561600

$0.92

36

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

37

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

38

Hex. Elastic Stop Nut M6

232561600

$0.92

40

Torx Screw M6 X 35

250000541

$1.74

42

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

43

Screw K40 X 10

241140060

$1.25

44

Screw M4 X 16

250000725

$2.87

45

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

46

Torx Screw M8 X 30

250000886

$1.74

47

Hex. Flange Screw M8 X 35

207683534

$1.74

48

Edge Clip

517302785

$0.70

49

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

50

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

61

Front Guard Plate | North America, International

705006299

$46.24

61

Front Guard Plate | Europe

705006300

$39.52

62

Socket Screw M10 x 30 | XT

205003044

$2.61

62

Hex. Screw M8 X 20

236282084

$1.43

63

Ring

705004497

$3.87

77

Front Bumper | XT

705005018

Unavailable

78

Black Bumper | XT

705005019

Unavailable

79

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

80

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

81

Bracket Cover | XT

705004987

$4.25

82

LH Rear Bracket | XT

705008164

$33.55

83

RH Rear Bracket | XT

705008165

$33.55

84

LH Bracket | XT

705005094

$6.39

85

RH Bracket | XT

705005095

$6.39

86

Torx Screw M6 x 25

250000284

$1.74
