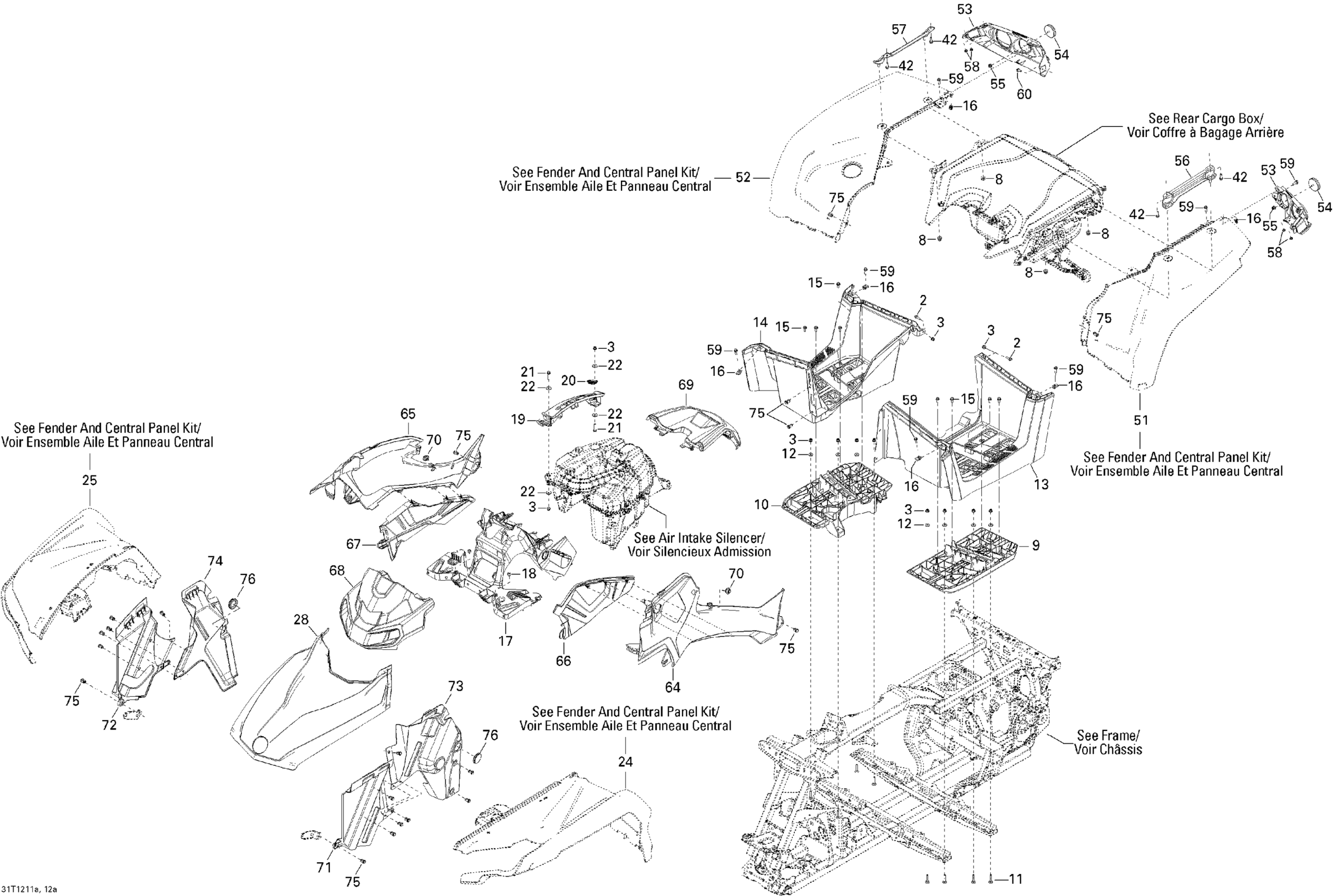

Can-Am Outlander STD, XT, 1000 EFI, 2012 Body And Accessories 1 Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662084

$0.96

3

Flange Elastic Nut M6

233261434

$3.61

8

Hex. Flange Elastic Nut M8

233281434

$1.74

8

Hex. Flange Elastic Nut M8

233281434

$1.74

8

Hex. Flange Elastic Nut M8

233281434

$1.74

9

LH Structural Footboard

705011540

$108.18

10

RH Structural Footboard

705011542

$95.49

11

Carriage Bolt M6 X 35

207763554

$1.70

12

Flat Washer 6 mm

234062410

$0.64

13

LH Step

705007040

$87.28

14

RH Step

705007039

$113.40

15

Hex. Flange Screw M6 X 16

207661654

$1.74

16

Panel Nut M6 X 1.0

250100198

$1.73

17

Dash Support Kit

715001552

$47.73

18

Rubber Bumper

293830005

$5.33

19

Shifter Gate | 1000 North America, 1000 International

705011544

$25.34

19

Shifter Gate | 1000 Europe

705011548

$23.85

20

Shiftgate Trim | Europe

705005003

$7.73

21

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

22

Flat Washer

224061201

$1.11

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

28

Yellow Hood Kit | Yellow

715001541

$103.70

28

Hood Kit, Black | Deep Black

715001545

$103.70

28

Red, Hood Kit | Viper Red

715001543

$103.70

28

CAMO HOOD KIT - Call your local BRP dealership | Camo

715001547

Unavailable

28

Magnesium Hood Kit | Pure Magnesium

715001549

$155.94

42

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

LH Rear Facia | North America, International

705006643

$14.27

53

LH Rear Facia | Europe

705006651

$14.27

53

RH Rear Facia | North America, International

705006650

$14.27

53

RH Rear Facia | Europe

705006652

$14.27

54

Red Reflector

705011221

$11.96

55

Flange Elastic Nut M5

233251434

$1.66

56

LH Support

705007277

$27.58

57

RH Support

705007278

$27.58

58

Push Nut

732610072

$1.72

59

Torx Screw M6 X 20

250000722

$1.34

60

Hex. Flange Screw M6 X 16

207661654

$1.74

64

Yellow, LH Lateral Panel | Yellow

705003446

$51.46

64

LH Pannel | Deep Black

705005236

$65.64

64

Viper Red, LH Lateral Pannel | Viper Red

705005237

$65.64

64

PANEL_BODY LH B-005 - Call your local BRP dealership | Camo

705005238

Unavailable

64

Pure Magnesium, LH Lateral Panel | Pure Magnesium

705011909

$272.36

65

Yellow, RH Lateral Panel | Yellow

705009019

$51.46

65

RH Panel | Deep Black

705009121

$51.46

65

Viper Red, RH Lateral Panel | Viper Red

705009115

$51.46

65

PANEL_BODY RH B-005 - Call your local BRP dealership | Camo

705009118

Unavailable

65

RH.PANEL - Call your local BRP dealership | Pure Magnesium

705009308

Unavailable

66

Deflector_Body Panel Kit

715007008

$49.97

67

Engine Cover

705003444

$18.63

68

Gauge Support

705006321

$40.27

69

Dash Kit

715006098

$25.34

70

Grommet

705003264

$3.43

71

RH Rear Inner Fender

705011462

$19.37

72

RH Front Inner Fender

705011463

$14.13

73

LH Rear Inner Fender

705013111

$19.37

74

LH Front Wheel Arch Protector

705017001

$14.13

75

Tuflok Plastic Rivet

293150230

$1.21

76

Rubber Cover

293250242

$5.18
