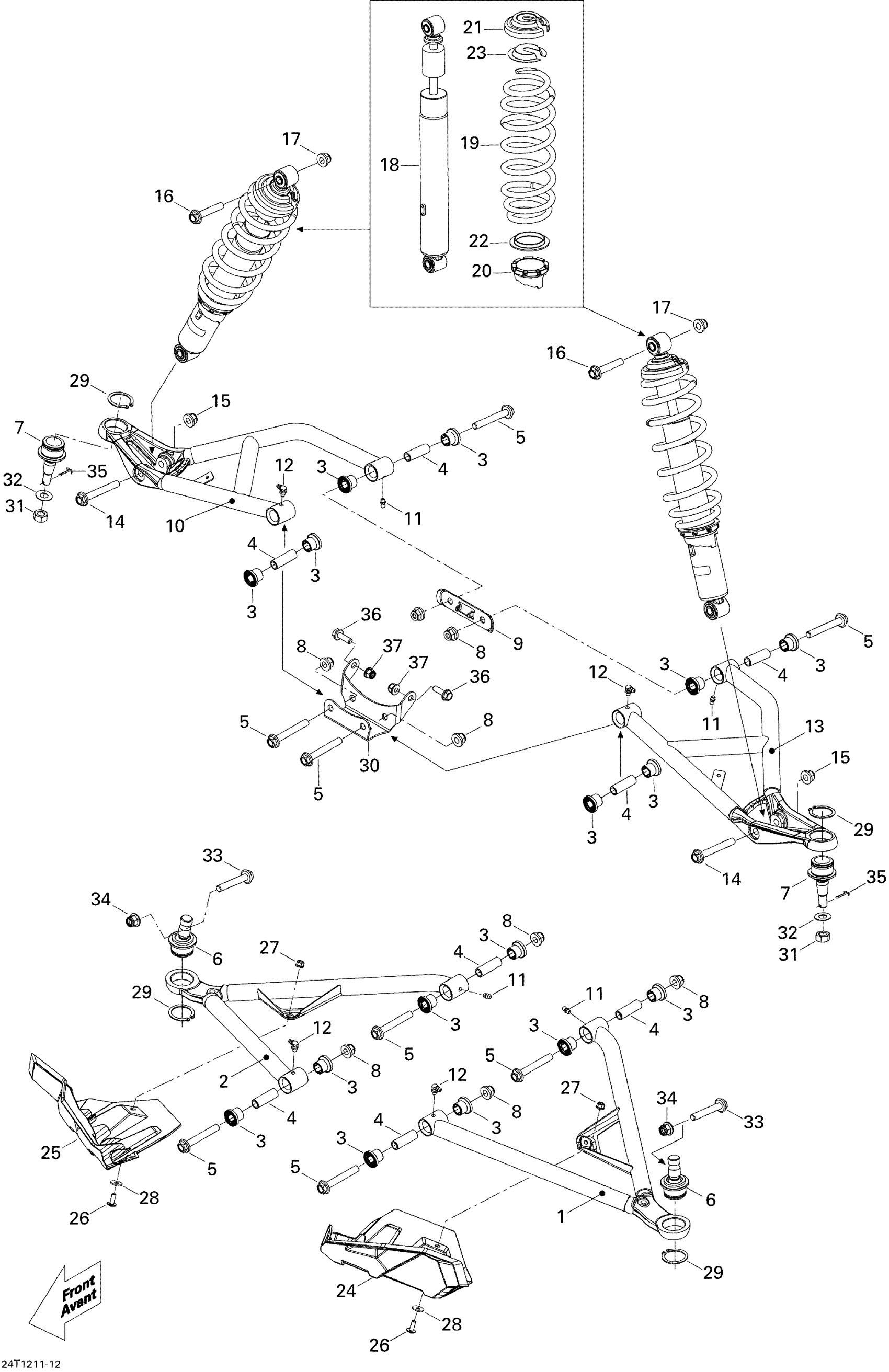

Can-Am Outlander STD, XT, 1000 EFI, 2012 Front Suspension Diagram

#

Description
Price

1

LH Lower Suspension Arm

706204639

$147.73

2

Black, RH Lower Arm

706202870

$147.73

3

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

4

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

5

Hex. Flange Screw M10 X 70

207607046

$2.82

6

Ball Joint

706202045

$34.30

7

Ball Joint

706202044

$34.30

8

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Front Suspension Cross Plate

706200998

$4.76

10

Black RH Upper Arm

706201797

$147.73

11

Grease Fitting

408200700

$2.80

12

Grease Fitting 90°

293550056

$1.04

13

Black LH Upper Arm

706201796

$147.73

14

Hex. Flange Screw M10 X 75

250001038

$5.54

15

Hex. Flange Elastic Nut M10

233201436

$1.74

16

Hex. Flange Screw M10 X 55

207605546

$1.74

17

Hex. Flange Elastic Nut M10

233201436

$1.74

18

Front Shock

706201170

$170.12

19

Black Spring | STD

706201171

$102.21

19

Black Spring | XT

706202553

$102.21

20

Adjustment Cam

505073625

$11.82

21

Spring Stopper

706200881

$10.30

22

Spring Guide

503187500

$7.37

23

Cap

706200785

$4.28

24

LH Joint Protector

706202808

$8.42

25

RH Joint Protector

706202809

$8.42

26

Torx Truss Screw M6 X 16

250000721

$1.39

27

Hex. Flange Elastic Nut M6

233261494

$1.26

28

Stainless Steel Flat Washer

234062670

$1.74

29

Circlip

293370035

$2.48

30

Upper Front Holder

705203247

$13.09

31

Nut M12

250100099

$1.64

32

Hardened Washer

706200281

$2.34

33

Hex. Flange Screw M10 X 60

207606044

$2.78

34

Hex. Flange Elastic Nut M10

233201434

$1.63

35

Cotter Pin

211400017

$0.25

36

Hex. Flange Screw M8 X 25

207682544

$0.90

37

Hex. Flange Elastic Nut M8

233281414

$1.14
