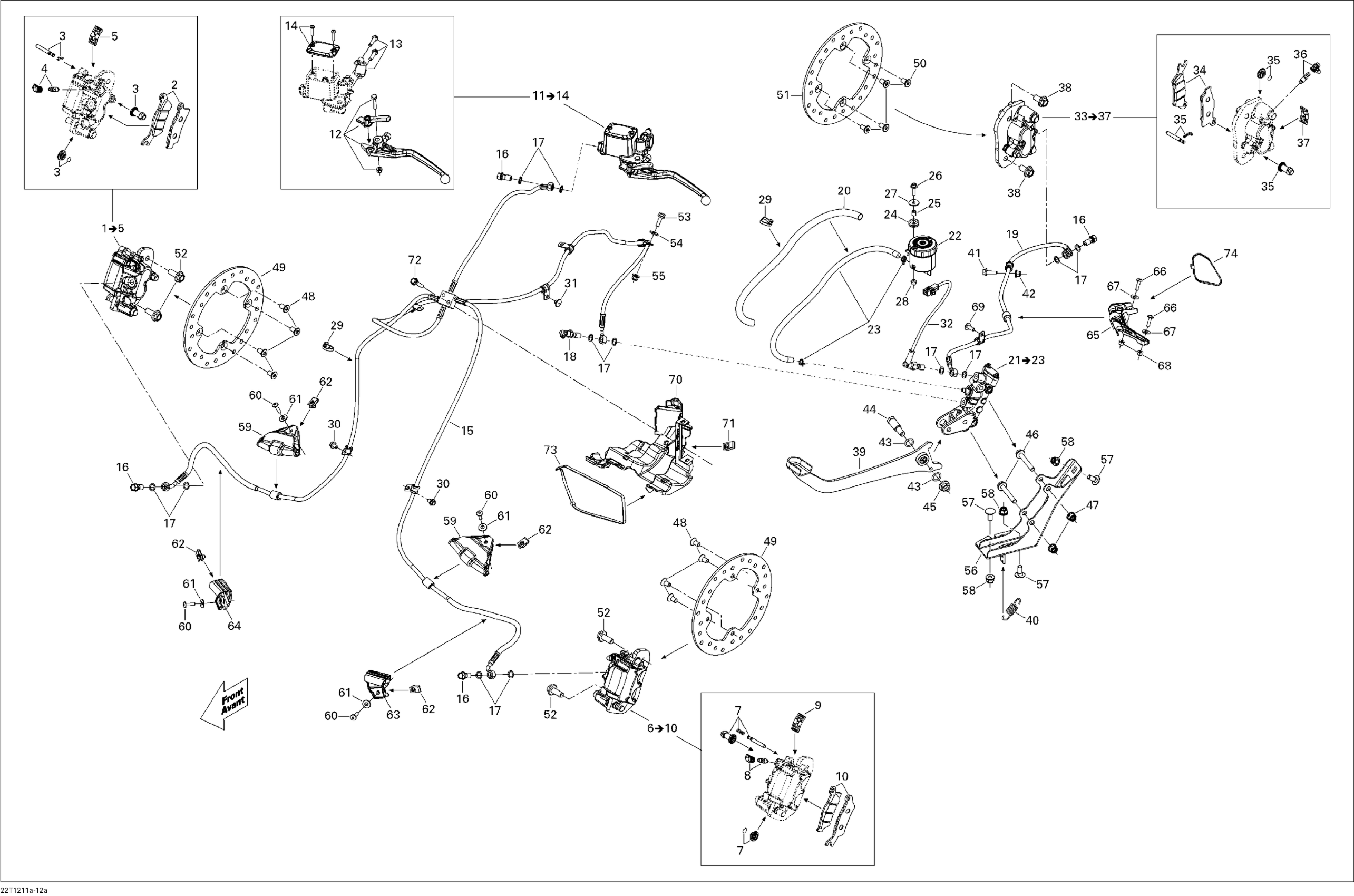

Can-Am Outlander STD, XT, 1000 EFI, 2012 Hydraulic Brakes Except Europe Diagram

#

Description
Price

1

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$214.15

2

RH Organic Brake Pad Kit

705601014

$39.52

3

Pin Set

705601016

$9.26

4

Bleeding Screw

705601017

$5.90

5

Retaining Spring

705601018

$7.55

6

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$214.15

7

Pin Set

705601016

$9.26

8

Bleeding Screw

705601017

$5.90

9

Retaining Spring

705601018

$7.55

10

LH Organic Brake Pad Kit

705601015

$39.52

11

LH Front Master Cylinder | Includes 11 to 14

705601430

$228.33

12

Lever Set

705601013

$57.43

13

Clamp And Screw Kit

507032477

$22.36

14

Cap Set

219800096

$20.12

15

LH RH Front Hose

705601519

$162.66

16

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

17

Copper Washer

705601628

$4.21

18

Bleeding Screw

705601051

$10.97

19

Brake Line Ass'y

705601002

$35.79

20

Tubing 10 MM 1000MM Long

219704407

$2.20

21

Rear Master Cylinder | Includes 21 to 23

705601273

$241.76

22

Oil Tank

705601020

$35.79

23

Oil Housing Hose

705601019

$14.43

24

Grommet

414036300

$2.22

25

Bushing

293900112

$9.30

26

Hex.Flange Screw M5 X 20

207652044

$1.56

27

Flat Washer

224060201

$1.12

28

Hex. Flange Elastic Nut M5

233251414

$1.66

29

Tie-Rap 180 mm

414115200

$0.09

30

Hex. Flange Screw M6 X 10

210261040

$1.25

31

Pop Rivet 3/16"

390406500

$0.70

32

Brake Switch

705601250

$55.19

33

RH Rear Brake Caliper | Includes 41 to 45

705602190

$213.40

34

RH Organic Brake Pad Kit

705601014

$39.52

35

Pin Set

705601016

$9.26

36

Bleeding Screw

705601017

$5.90

37

Retaining Spring

705601018

$7.55

38

Hex. Flange Screw M10 X 20

207502046

$1.74

39

Deep Black, Brake Pedal

705602163

$138.03

40

Brake Pedal Spring

705600792

$8.42

41

Hex. Flange Screw M6 X 20

207662044

$1.66

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

43

O-Ring

293300144

$3.79

44

Shoulder Screw M10

250000513

$5.54

45

Hex. Flange Elastic Nut M10

233201436

$1.74

46

Hex. Flange Screw M8 X 55

207685544

$4.41

47

Hex. Flange Elastic Nut M8

233281414

$1.14

48

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

49

Disc Brake

705600999

$83.55

50

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

51

Disc Brake

705600999

$83.55

52

Hex. Flange Screw M10 X 25

207502546

$1.74

53

Hex. Flange Screw M6 X 20

207662044

$1.66

54

Flat Washer 6 mm

234062410

$0.64

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

56

Brake Pedal Bracket

705202000

$35.04

57

Carriage Bolt, M8 X 20

207782044

$1.56

58

Hex. Flange Elastic Nut M8

233281414

$1.14

59

Hose Guard

705601893

$4.19

60

Torx Screw M5 X 20

250000724

$1.39

61

Washer M5

250200025

$0.61

62

Panel Nut M5 X 0.8

250000958

$3.48

63

LH Hose Bracket

705601048

$4.19

64

RH Hose Bracket

705601049

$4.19

65

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

66

Torx Screw M5 X 20

250000792

$1.74

67

Washer M5

250200025

$0.61

68

Elastic Flange Nut M5

233251494

$1.74

69

Torx Screw M6 X 16

250000755

$0.72

70

Front Hose Bracket

705600983

$11.81

71

Panel Nut M6 X 1.0

250100198

$1.73

72

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

73

Tie Rap, 533 mm

293750047

$1.84

74

Tie Wrap 368 mm

293750008

$0.85
