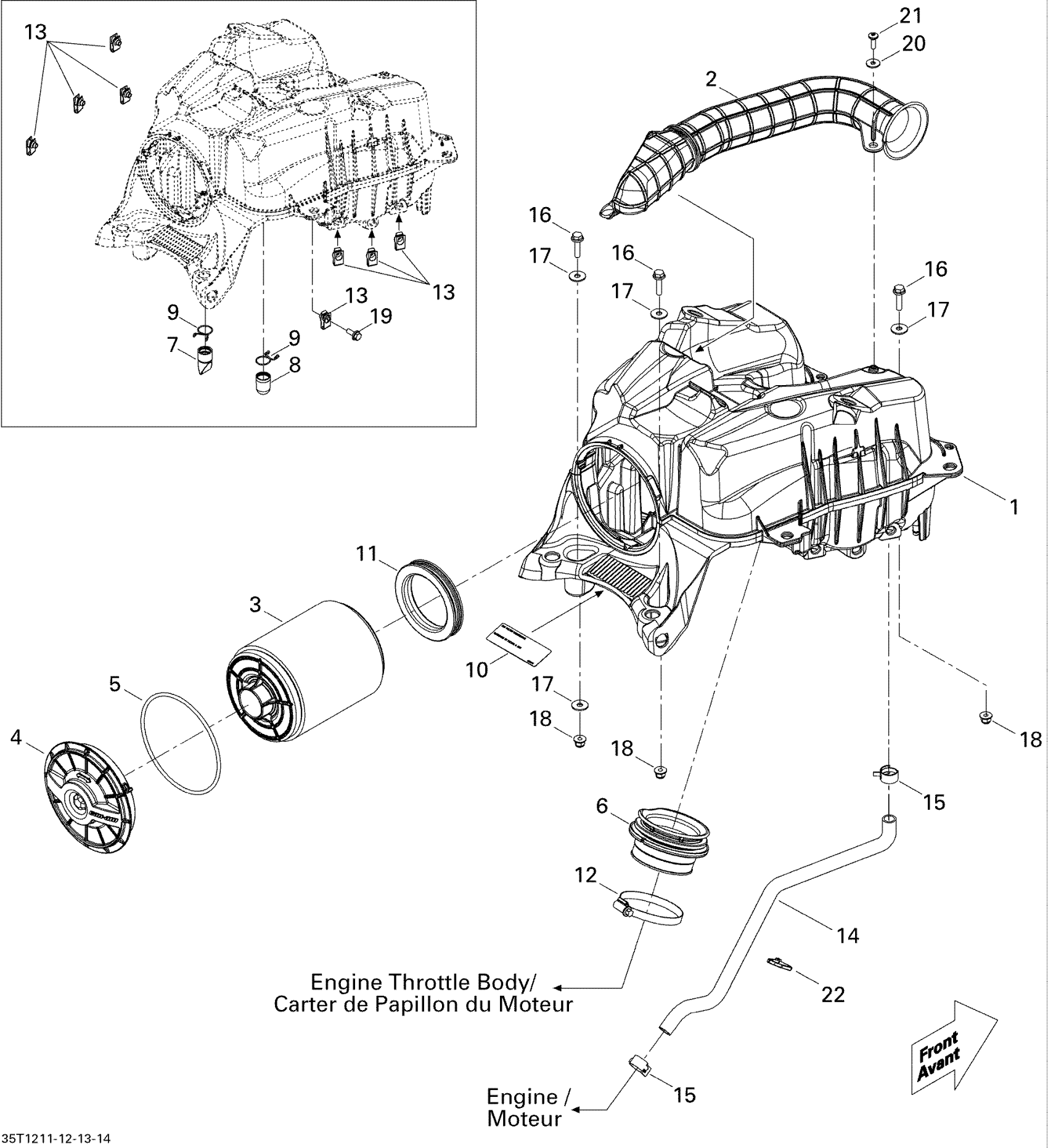

Can-Am Outlander STD, XT, 1000 EFI, 2012 Air Intake Diagram

#

Description
Price

1

Intake Silencer

707800367

Unavailable

2

Air Intake Hose

707800375

$49.97

3

Air Filter

707800371

$36.54

4

Air Filter Cap

707800396

Unavailable

5

O-Ring

293300150

Unavailable

6

Intake Adaptor

707800333

$17.88

7

Drain Tube

707800404

$2.89

8

Drain Tube

707800080

$6.99

9

Retainer Clip

707800278

$12.30

10

Air Filter Maintenance Decal

707800373

Unavailable

11

Air Filter Adaptor

707800470

$17.88

12

Norma Clamp

293650091

$4.46

13

Panel Nut M6 X 1.0

250100198

$1.73

14

Vent Hose

707800453

$23.10

15

Norma Clamp

293650110

$4.25

16

Hex. Flange Screw M6 X 25

207662534

$1.74

17

Flat Washer

250200082

$0.35

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hex. Flange Screw M6 X 16

207661644

$0.61

20

Washer | DS 650 X

391301600

$0.46

21

Torx Screw K50 X 16

250000720

$1.39

22

Tie-Rap 180 mm

414115200

$0.09
