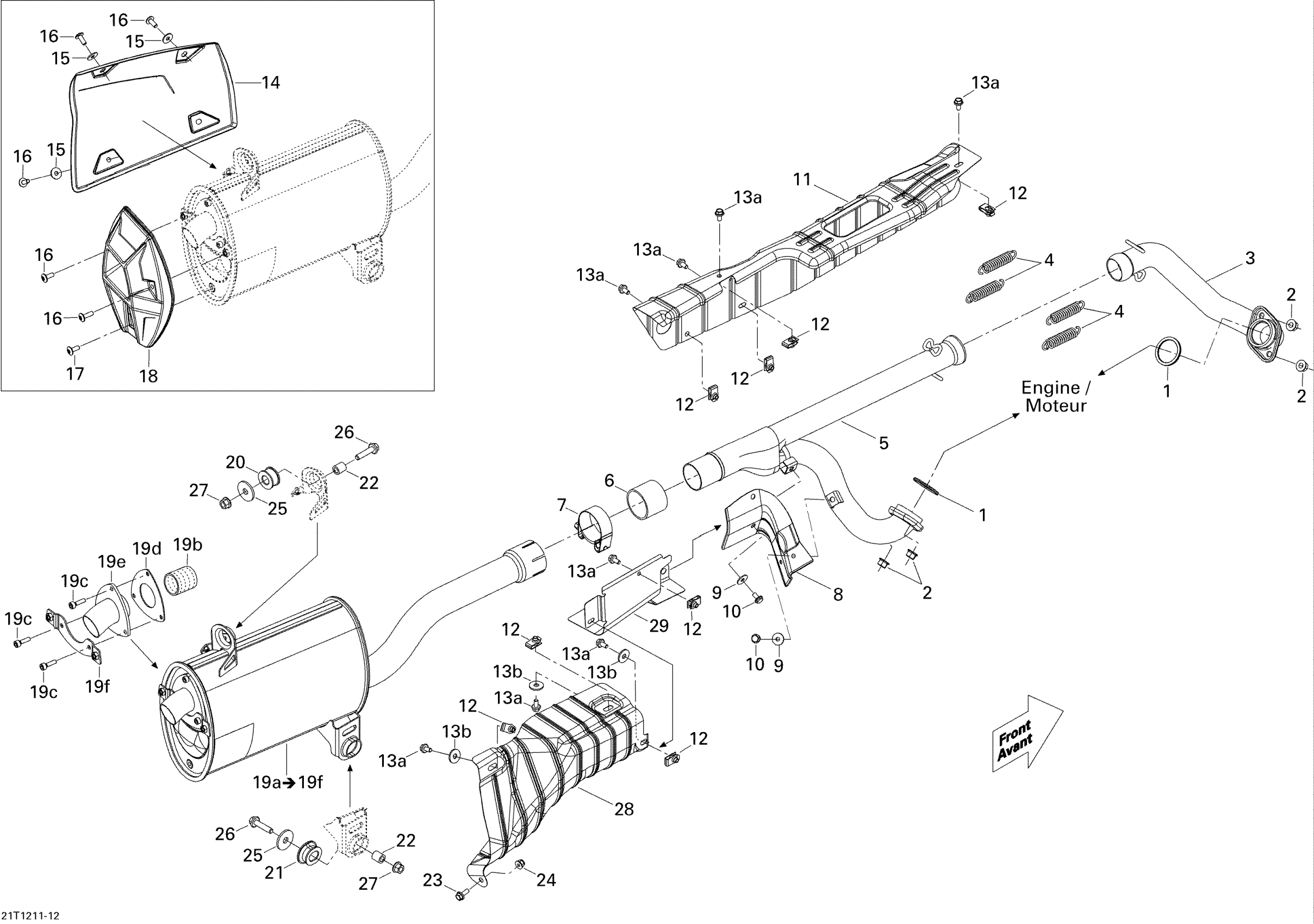

Can-Am Outlander STD, XT, 1000 EFI, 2012 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.21

2

Hex. Flange Nut M8

233081416

$1.63

3

Front Head Pipe

707600627

$130.57

4

Spring

415107100

$6.01

5

REAR HEAD PIPE - Call your local BRP dealership

707601420

Unavailable

6

Pipe Gasket

707601544

$17.88

7

Norma Gear Clamp

293650177

$8.67

8

Pipe Protector

707600932

$13.51

9

Flat Washer

250200082

$0.35

10

Hex. Flange Screw M6 X 12

250000574

$2.00

11

Heat Shield

707603724

$11.51

12

Panel Nut M6 X 1.0

250100198

$1.73

13a

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

13b

Flat Washer 6 mm

234062410

$0.64

14

Heat Deflector

707600710

$38.03

15

Stainless Steel Flat Washer

234062670

$1.74

16

Torx Screw M6 X 16

250000223

$1.74

17

Torx Truss Screw M6 X 20

250000350

$4.39

18

Muffler Cap

707600711

Unavailable

19a

Exhaust Muffler | Includes 19a to 19f

703501071

$532.06

19a

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

707600799

Unavailable

19b

Spark Arrestor

707601803

$46.24

19c

Socket Head Screw M6 X 20

205062060

$1.92

19d

Gasket

707601799

$4.45

19e

Muffler End Piece

715900143

$32.81

19f

Support

715900147

$3.29

20

Vibration Damper

707603323

$10.88

21

Rubber

707600448

$6.73

22

Bushing

293900106

$4.28

23

Hex. Flange Screw M6 X 16

207661654

$1.74

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

Washer

503032900

$3.10

26

Hex. Flange Screw M8 X 35

207683534

$1.74

27

Hex. Flange Nut M8

233081416

$1.63

28

Protector Kit

703500816

$23.85

29

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable
