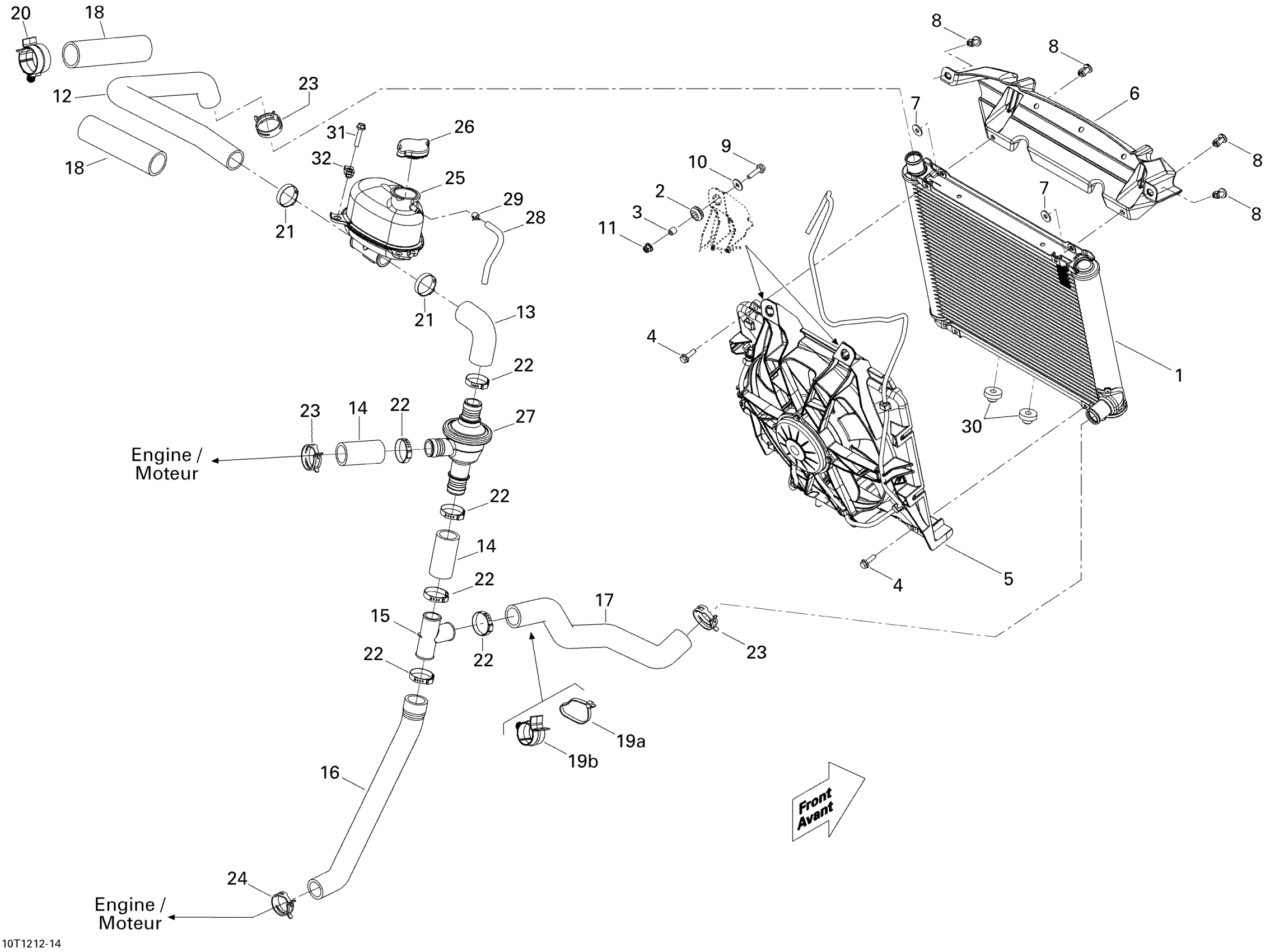

Can-Am Outlander STD, XT, 1000 EFI, 2012 Cooling System Diagram

#

Description
Price

1

Radiator

709200286

$444.00

2

Grommet

709000582

$4.25

3

Bushing

293900105

$6.07

4

Hex. Flange Screw M6 X 20

207662034

$1.74

5

Fan Ass'y

709200564

$217.88

6

Air Deflector | Outlander

709200393

$14.43

7

Flat Washer 8 mm

234081410

$0.69

8

Tuflok Plastic Rivet

293150230

$1.21

9

Hex. Flange Screw M6 X 25

207662534

$1.74

10

Flat Washer

250200082

$0.35

11

Flange Elastic Nut M6

233261434

$3.61

12

Radiator Inlet Hose

709200278

$32.06

13

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

14

Hose

709200299

$6.69

15

T-Fitting

509000219

$14.90

16

Hose

709200392

$16.39

17

Radiator Outlet Hose

709200390

Unavailable

18

Tubing 35 MM 1000MM Long

219704428

$8.57

19a

Not Available As Spare Parts

XXX

Unavailable

19b

Retainer

275500590

$7.18

20

Retainer

275500590

$7.18

21

Gear Clamp

509000162

$5.84

22

Gear Clamp

509000162

$5.84

23

Norma Spring Clamp

293650166

$4.15

24

Norma Spring Clamp

293650108

$3.88

25

Coolant Tank

709200297

$49.97

26

Radiator Pressure Cap

709200207

$18.82

27

Thermostat

709200406

$77.32

28

Polyurethane Hose 10000Mm Long

219704410

$46.12

29

Spring Clamp

414554800

$0.81

30

Grommet

709200285

$7.09

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

32

Panel Nut M6 X 1.0

250100198

$1.73
