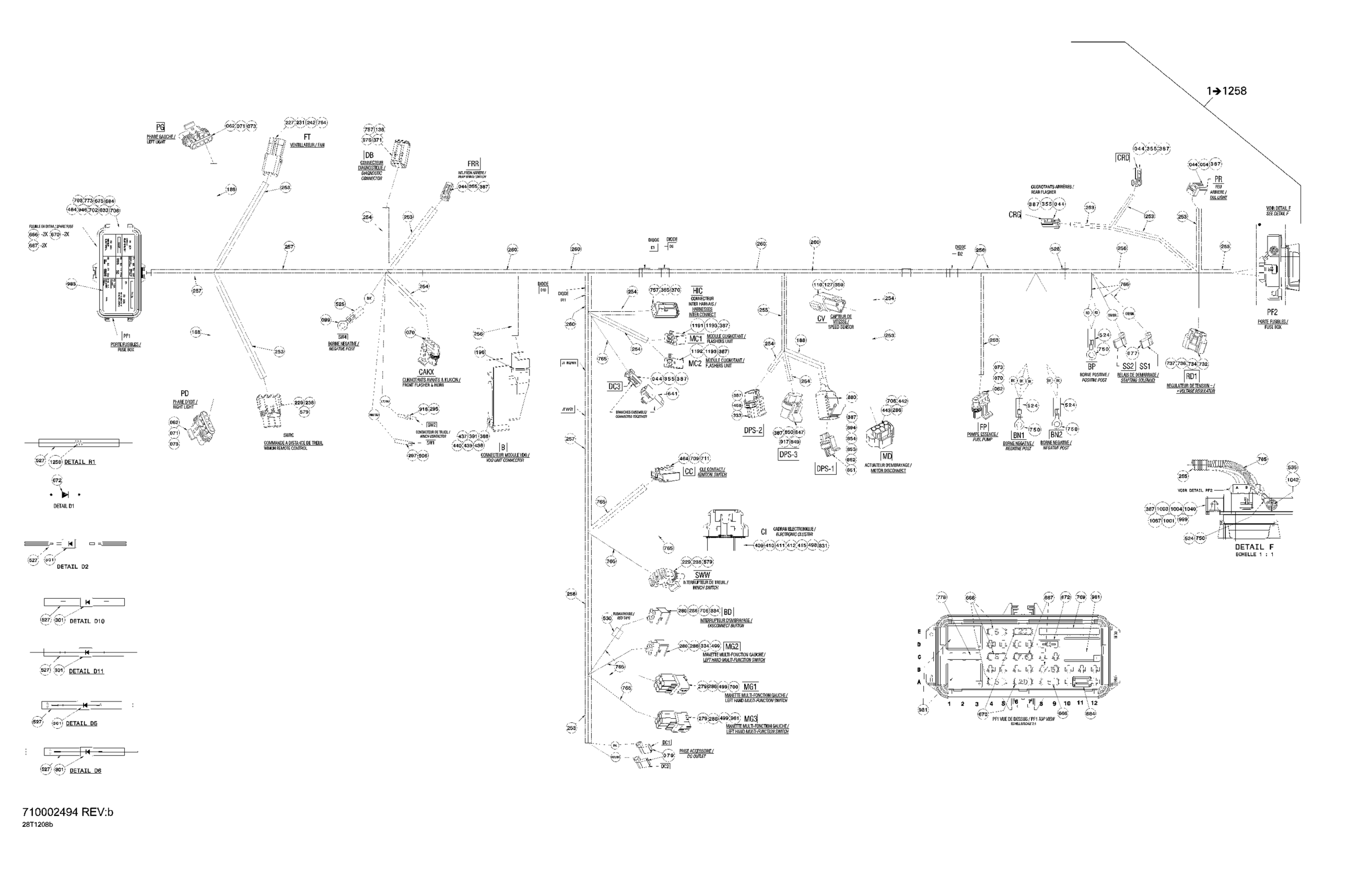

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 Main Harness Europe XT Diagram

#

Description
Price

1

Main Wiring Harness Ass'y | Includes 1 to 1258

710002494

Unavailable

33

Wire Seal

278000999

$2.93

44

Female Terminal

515175231

$4.00

54

Female Housing, 3 Circuits

515175495

$14.90

62

Female Terminal

278001014

$3.12

62

Female Terminal

278001014

$3.12

70

Female Housing, 4 Circuits

409209700

$14.90

70

Female Housing, 4 Circuits

409209700

$14.90

71

Connector

710000780

$17.88

73

Wire Seal

278001013

$3.12

77

Female Terminal

409010300

$4.00

79

Female Terminal

710000038

$4.19

99

Open Barrel

278000992

$2.06

110

Male Terminal

278000631

$4.00

127

Male Lock, 3 Circuits

409207600

$2.93

138

Sealing Cap

293000052

$2.93

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.01

227

Male Terminal

409004300

$5.30

229

Female Terminal

278000223

$2.93

231

Female Housing, 2 Circuits

278000217

$8.72

238

Male Housing, 3 Circuits

278000273

$8.72

242

Wire Seal

278000218

$4.00

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

256

Tubing 16 Mm 1000Mm Long

219704408

$7.15

257

Was 409901600 Tubing 19mm

219704398

$87.28

260

Was 515175319 Tubing 22 mm

219704423

$13.60

279

Male Terminal

409011300

$5.61

280

Female Terminal

409012100

$4.28

286

Seal

409012300

$4.25

295

Insulated Sheath

278001008

$3.10

297

Insulated Sheath

278001007

$3.12

301

Diode

409012700

$10.51

333

Fuse Holder

278001325

$8.31

334

Female Housing, 6 Circuits

710000081

$7.88

355

Female Housing, 2 Circuits

515175658

$14.90

359

Male Housing

515175666

$12.66

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$4.96

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$1.96

410

Female Housing, 24 Circuits

515175801

$8.73

411

Retainer Block

515175802

$10.34

412

Wire Seal

515175803

$2.76

415

Female Terminal

515175806

$0.93

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.25

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

442

Male Housing, 4 Circuits

710000329

$14.34

443

Female Terminal

710000335

$1.75

458

Female Terminal

710000357

$5.85

464

Female Terminal

710000274

$8.72

484

Seal

415128501

$1.73

498

Female Housing

710000399

$13.60

499

Wire Seal

710000402

$4.28

506

Female Terminal

710000421

$5.30

524

Not Available As Spare Part - Friction Washer

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Not Available As Spare Part - Friction Washer

Unavailable

535

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

579

Wire Seal

710000504

$3.93

641

Male Housing, 2 Circuits

710000667

$7.25

666

Little Fuse, 5 Amperes

710000742

$8.31

667

Little Fuse, 7.5 Amperes

710000743

$7.78

670

Little Fuse, 20 Amperes

710000746

$7.78

672

Diode

710000748

$10.51

675

Fuse Box Base Ass´y

415129856

$47.73

684

Fuse Puller

710000781

$8.29

700

Male Terminal Housing, 6 Circuits

710000835

$15.64

702

Female Terminal

710000836

$5.30

703

Female Terminal

710000837

$4.96

706

Cap

710000840

$5.33

709

Lock

710000848

$3.12

711

Male Housing, 6 Circuits

710000849

$8.67

732

Female Terminal

710000877

$7.25

734

Female Housing, 3 Circuits

710000879

$24.60

736

Seal

710000881

$16.39

737

Cap

710000882

$10.55

750

Terminal

710000913

$5.30

757

Female Terminal

278001665

$4.28

764

Clip

710000992

$3.88

769

Bus Bar

278002165

$8.31

773

Fuse Cover

710001026

$20.12

778

Bus Bar

278002165

$8.31

831

Female Terminal

710001131

$6.79

847

HOUSING - Call your local BRP dealership

710001315

Unavailable

849

Wire Seal

710001159

$5.90

850

Female Terminal

710001160

$5.90

851

Housing

710001161

$10.51

852

Lock

710001162

$3.18

853

Wire Seal

710001163

$5.85

854

Female Terminal

710001164

$6.79

880

Cap

710001114

$16.39

889

Seal

710001233

$2.93

890

Terminal

710001229

$2.93

894

Cap

710001225

$8.34

917

Lock

710001323

$5.90

918

Female Terminal

278002261

$6.01

921

Female Terminal

710001340

$4.96

930

Wire Seal

515176621

$6.79

946

Foam

278002172

$5.33

961

Male Housing Terminal, 6 Circuits

710001446

$4.19

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

981

Relay, 30 AMP

515176774

$18.63

983

FUSE LOGO - Call your local BRP dealership

710001567

Unavailable

999

Not Available As Spare Part - Friction Washer

Unavailable

1001

LOCK - Call your local BRP dealership

710001633

Unavailable

1003

Terminal

710001636

$3.12

1004

SEAL - Call your local BRP dealership

710001637

Unavailable

1040

Not Available As Spare Part - Friction Washer

Unavailable

1042

Hex. Flange Elastic Nut M6

233261494

$1.45

1087

Terminal Joint

710001905

$2.09

1191

Housing

710002314

$15.64

1192

Housing

710002313

$17.88

1193

Terminal

710002315

$4.19

1258

Resistor

710002674

$3.12
