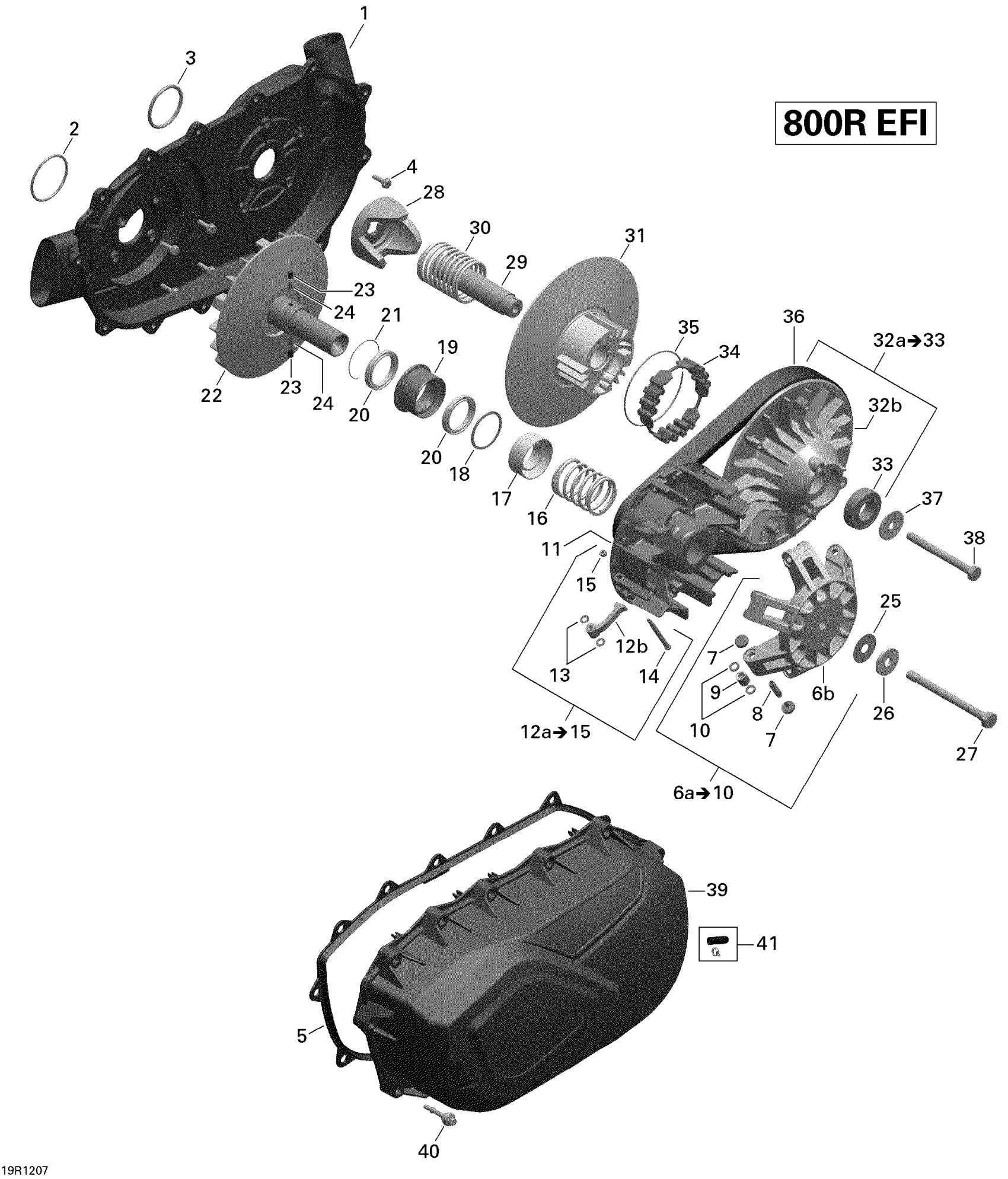

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 Transmission Diagram

#

Description
Price

1

CVT Air Guide

420612304

$184.58

2

O-Ring

420430408

$5.52

3

O-Ring

420631089

$5.52

4

Hex.Screw M6 X 20

420441311

$4.24

5

Gasket

420430126

$41.51

6a

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$42.28

8

Roller Axle

417223257

$9.22

9

Roller

417223767

$7.37

10

Roller

417223767

$7.37

11

Outer Haft

420280467

$198.43

12a

Centrifugal Lever Kit | Includes 14 to 17

420248495

$179.97

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Compression Spring, Drive Pulley

420238610

$22.07

17

Seat Spring

420627578

$28.57

18

Friction Washer

420460430

$10.78

19

Drive Pulley Clutch

420257195

$69.97

20

Ball Bearing

420632377

$40.27

21

Retaining Ring

420245951

$4.72

22

Inner Half

420280374

$179.97

23

Spring Sleeve

420229577

$14.92

24

Spring

420239134

$2.52

25

Thrust Washer

420627920

$7.37

26

Spring Washer

420627768

$20.74

27

Hex. Screw M12 X 140

420641859

$23.05

28

Cam

420280473

$133.82

29

Driven Pulley Shaft

420220914

$124.58

30

Compression Spring

420238176

$36.89

31

Inner Half Ass'y | Includes 33a to 35

420280499

$303.99

32a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.99

32b

Not Available As Spare Part - Friction Washer

Unavailable

33

Ball Bearing

420932421

$26.89

34

Torque Gear

420660124

$23.05

35

Retaining Ring

420245911

$5.98

36

V-Belt

422280366

$170.99

37

Thrust Washer

420627594

$12.91

38

Hex. Screw M10 X 110

420441485

$11.98

39

Variator Cover

420611397

$207.66

40

Allen Screw M6 x 30,5

420440561

$3.67

41

Drain Plug Kit

707001179

$9.22
