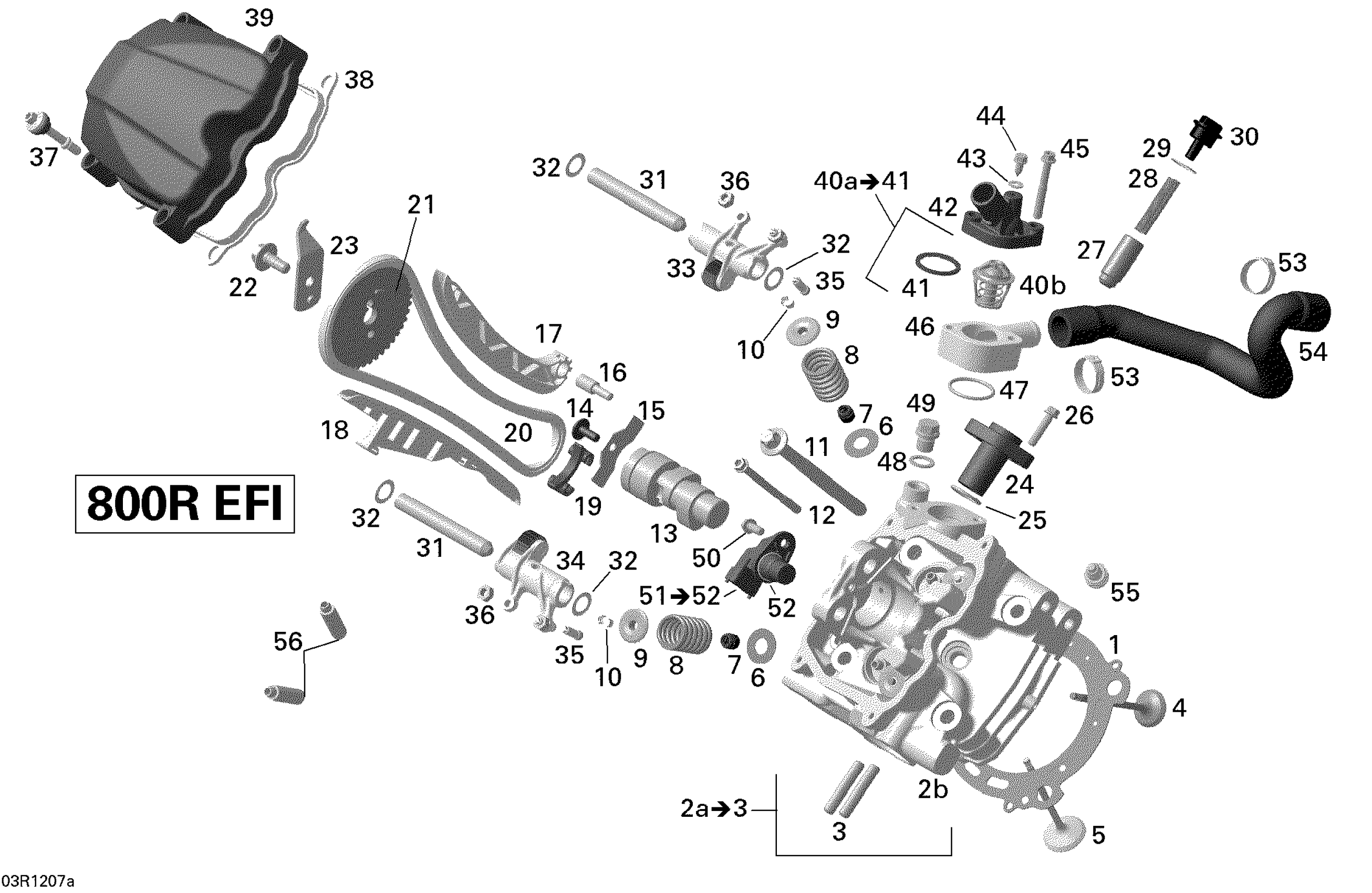

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$81.99

2a

Cylinder Front Ass'y | Includes 2a to 3

420613534

$679.99

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$14.49

4

Intake Valve 31MM

420254359

$36.99

5

Exhaust Valve 27MM

420254368

$71.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.49

8

Valve Spring

420239295

$14.49

9

Valve Spring Retainer

420254132

$14.49

10

Cotter Valve

420254120

$4.19

11

Torx Screw M10X140

420641551

$14.49

12

Torx Flange Screw M6 X 85

420641228

$7.59

13

CAMSHAFT - Call your local BRP dealership

420620021

Unavailable

14

Torx Screw M6 X 16

420241529

$1.79

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.39

17

Chain Tension Guide

420436015

$31.99

18

Chain Guide

420236584

$7.69

19

Chain Guide

420236351

$15.49

20

Silent Chain

420297063

$66.99

21

Camshaft Sprocket

420254434

$37.99

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.59

23

Trigger

420664255

$12.99

24

Chain Tensioner Housing

420236510

$11.99

25

O-Ring

420430373

$3.29

26

Torx Flange Screw M6 X 25

420641238

$3.39

27

Chain Tensioner Plunger

420236521

$15.49

28

Spring

420238120

$7.59

29

O-Ring

420250890

$3.19

30

Plug Screw

420641150

$7.59

31

Pin #12, Small, M6 X 90

420229712

$15.99

32

Shim

420944382

$4.19

33

Inlet Rocker Arm

420254907

$144.99

34

Exhaust Rocker Arm

420254911

$154.99

35

Adjustment Screw M6 X 0.75

420241337

$5.19

36

Hex Nut M6

420242913

$0.51

37

Allen Screw M6 x 30,5

420440561

$4.59

38

Gasket

420630260

$9.09

39

Valve Cover

420610393

$27.99

40a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

40b

Not Available As Spare Part - Friction Washer

Unavailable

41

Thermostat Gasket

420650300

$8.79

42

Thermostat Cover

420222696

$3.29

43

Gasket Ring

420650255

$4.19

44

Screw M5 X 16

420441621

$3.29

45

Torx Flange Screw M6 X 45

420641198

$4.19

46

Connection Socket

420222894

$49.99

47

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.99

48

Copper Washer

420250640

$1.49

49

Plug screw

420841924

$14.49

50

Torx Flange Screw M6 X 16

420641048

$2.99

51

Camshaft Position Sensor Ass'y

420664046

$91.99

52

O-Ring

420631890

$5.29

53

Clamp

420251578

$8.79

54

Water Tube

420822353

$21.99

55

Spark Plug, NGK DCP-R8E

715900637

$6.99

56

Valve Guide

420254374

$28.99
