Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1145

710002601

Unavailable

33

Wire Seal

278000999

$3.29

44

Female Terminal

515175231

$4.49

54

Female Housing, 3 Circuits

515175495

$16.49

62

Female Terminal

278001014

$3.39

69

Female Housing, 3 Circuits

409209600

$36.99

70

Female Housing, 4 Circuits

409209700

$16.49

73

Wire Seal

278001013

$3.39

77

Female Terminal

409010300

$4.49

79

Female Terminal

710000038

$4.55

99

Open Barrel

278000992

$2.29

110

Male Terminal

278000631

$4.49

127

Male Lock, 3 Circuits

409207600

$3.29

138

Sealing Cap

293000052

$3.29

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.49

227

Male Terminal

409004300

$5.69

228

Female Terminal

409007300

$1.49

229

Female Terminal

278000223

$3.29

231

Female Housing, 2 Circuits

278000217

$9.79

238

Male Housing, 3 Circuits

278000273

$9.79

242

Wire Seal

278000218

$4.49

244

Wire Seal

278000216

$3.29

253

Tubing 6 Mm 3000Mm Long

219704425

$13.99

254

Was 409901700 Tubing (9 mm)

219704399

$86.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.99

256

Tubing 16 Mm 1000Mm Long

219704408

$7.69

257

Was 409901600 Tubing 19mm

219704398

$97.99

260

Was 515175319 Tubing 22 mm

219704423

$15.49

279

Male Terminal

409011300

$6.09

280

Female Terminal

409012100

$4.69

286

Seal

409012300

$4.69

295

Insulated Sheath

278001008

$3.39

297

Insulated Sheath

278001007

$3.69

301

Diode

409012700

$11.49

333

Fuse Holder

278001325

$8.99

334

Female Housing, 6 Circuits

710000081

$8.79

355

Female Housing, 2 Circuits

515175658

$16.49

359

Male Housing

515175666

$15.99

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.49

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$2.29

410

Female Housing, 24 Circuits

515175801

$9.79

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$3.09

415

Female Terminal

515175806

$1.49

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.29

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

442

Male Housing, 4 Circuits

710000329

$15.36

443

Female Terminal

710000335

$2.39

458

Female Terminal

710000357

$7.89

464

Female Terminal

710000274

$9.79

484

Seal

415128501

$1.89

498

Female Housing

710000399

$16.99

499

Wire Seal

710000402

$4.69

506

Female Terminal

710000421

$6.29

524

Not Available As Spare Part - Friction Washer

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Not Available As Spare Part - Friction Washer

Unavailable

535

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

579

Wire Seal

710000504

$4.39

641

Male Housing, 2 Circuits

710000667

$8.49

651

Connector

710000722

$9.95

666

Little Fuse, 5 Amperes

710000742

$8.99

667

Little Fuse, 7.5 Amperes

710000743

$8.69

670

Little Fuse, 20 Amperes

710000746

$8.69

672

Diode

710000748

$11.49

675

Fuse Box Base Ass´y

415129856

$51.99

684

Fuse Puller

710000781

$8.29

700

Male Terminal Housing, 6 Circuits

710000835

$17.04

702

Female Terminal

710000836

$5.69

703

Female Terminal

710000837

$5.49

706

Cap

710000840

$5.99

709

Lock

710000848

$3.19

711

Male Housing, 6 Circuits

710000849

$9.69

732

Female Terminal

710000877

$9.29

734

Female Housing, 3 Circuits

710000879

$26.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.99

750

Terminal

710000913

$5.69

757

Female Terminal

278001665

$4.69

764

Clip

710000992

$4.39

769

Bus Bar

278002165

$8.99

773

Fuse Cover

710001026

$21.99

778

Bus Bar

278002165

$8.99

831

Female Terminal

710001131

$9.09

847

HOUSING - Call your local BRP dealership

710001315

Unavailable

849

Wire Seal

710001159

$6.35

850

Female Terminal

710001160

$6.35

851

Housing

710001161

$11.49

852

Lock

710001162

$3.29

853

Wire Seal

710001163

$7.89

854

Female Terminal

710001164

$9.09

880

Cap

710001114

$18.49

889

Seal

710001233

$3.29

890

Terminal

710001229

$3.29

894

Cap

710001225

$9.39

917

Lock

710001323

$7.55

918

Female Terminal

278002261

$7.69

946

Foam

278002172

$5.99

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

981

Relay, 30 AMP

515176774

$21.99

999

Not Available As Spare Part - Friction Washer

Unavailable

1001

LOCK - Call your local BRP dealership

710001633

Unavailable

1003

Terminal

710001636

$3.19

1004

SEAL - Call your local BRP dealership

710001637

Unavailable

1015

Female Terminal Housing, 12 Circuits

278002377

$51.99

1037

Relay

715900824

$17.32

1042

Hex. Flange Elastic Nut M6

233261494

$1.59

1087

Terminal Joint

710001905

$2.09

1129

Fuse Box

710002039

Unavailable

1145

FUSE RELAY LOGO - Call your local BRP dealership

710001972

Unavailable

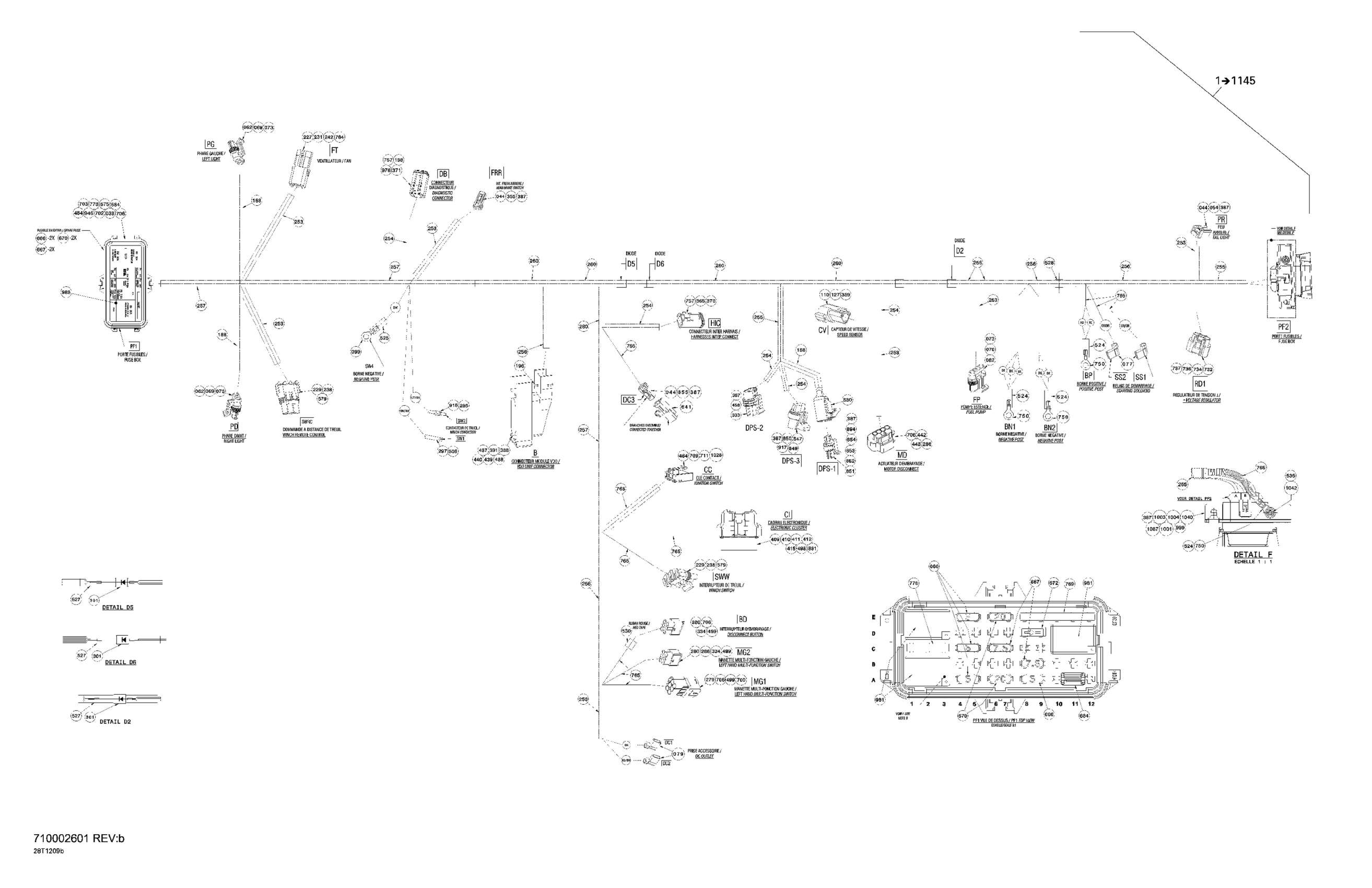

Can-Am Outlander MAX 800REFI LTD, 2012 Main Harness LTD Diagram
