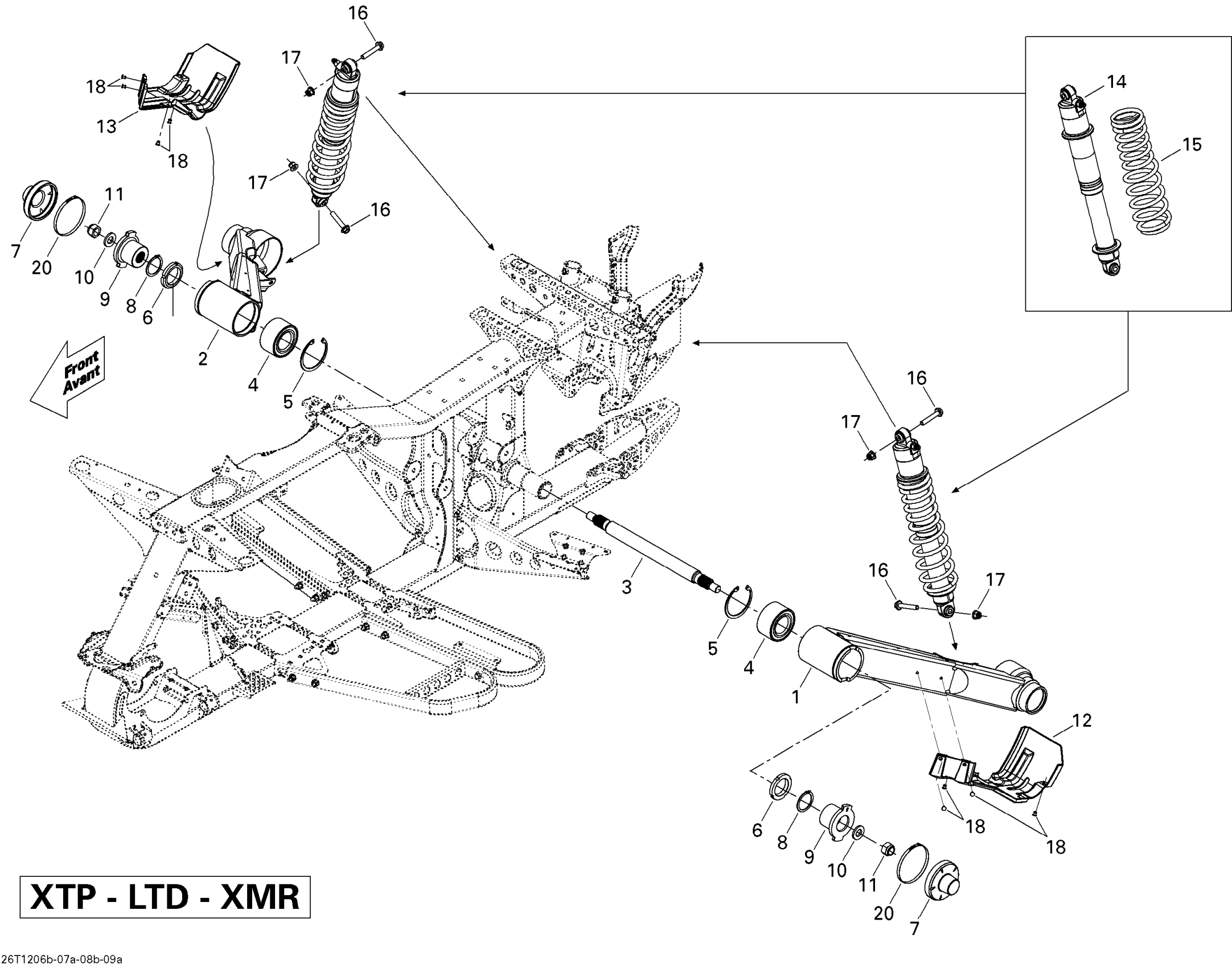

Can-Am Outlander MAX 800REFI LTD, 2012 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001188

Unavailable

2

Rh Swing Arm

706003427

$276.09

3

Sway Bar

706001078

$88.78

4

Ball Bearing

293350037

$124.60

5

Circlip

293370041

$9.26

6

Nut

706000221

$19.37

7

Cover

706000749

$14.76

8

Circlip 45 mm

293370027

$4.09

9

Lever

706000554

$64.90

10

Washer

250200045

$7.21

11

Elastic Stop Nut M18

232591414

$3.48

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706001000

Unavailable

15

Black Rear Spring

706002785

$115.64

16

Hex. Flange Screw M10 X 55

207605544

$2.78

17

Hex. Flange Elastic Nut M10

233201414

$1.26

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

20

Oetiker Clamp

293650162

$8.06
