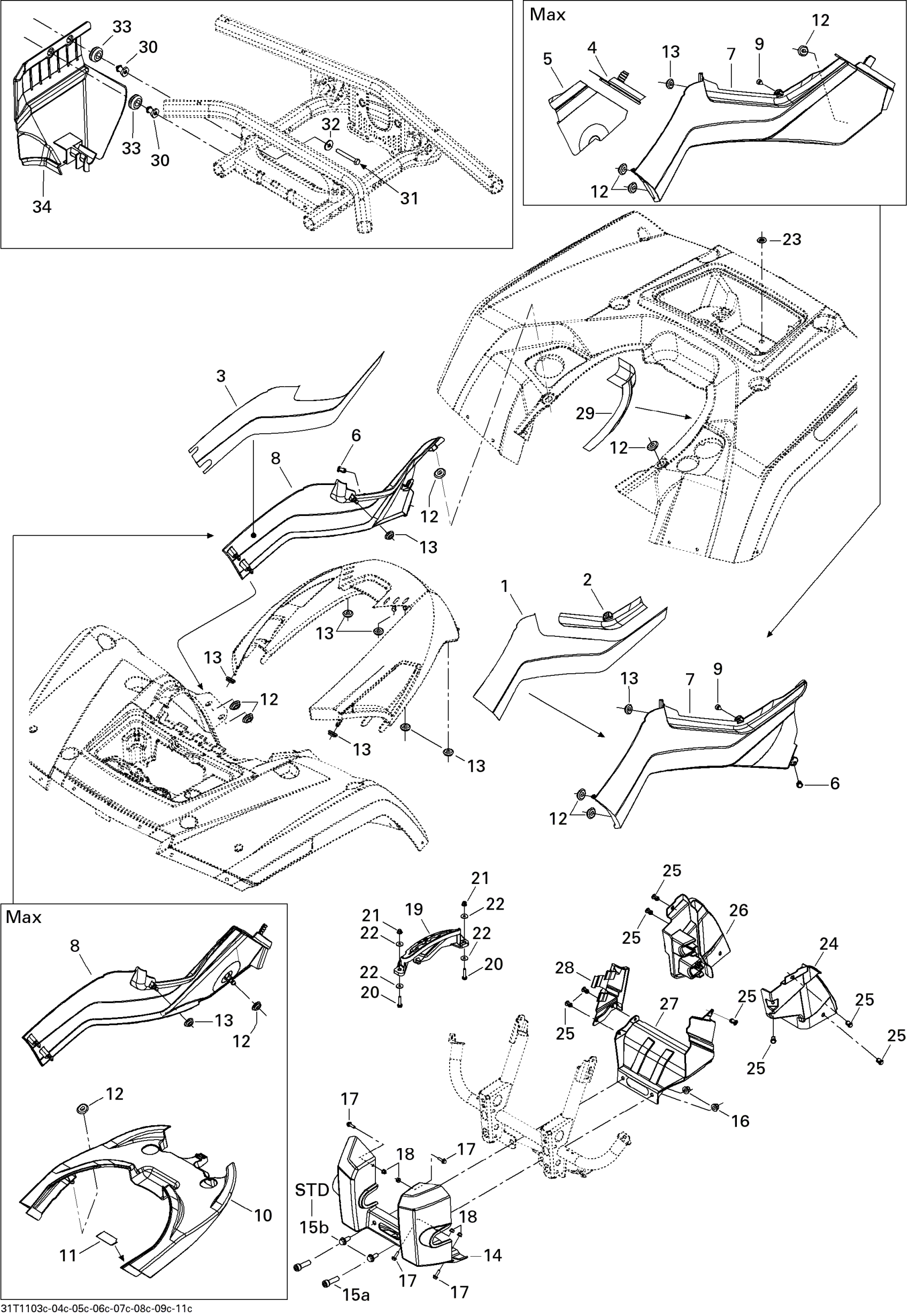

Can-Am Outlander Max 800R EFI Ltd, 2011 Body And Accessories 3 Diagram

#

Description
Price

1

Reflective Sheet

705005620

$11.98

2

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

705005623

$7.66

4

LH REFLECTIVE SHEET - Call your local BRP dealership

705002183

$6.89

5

REFLECTIVE SHEET - Call your local BRP dealership

705005621

$6.89

6

Tuflok Plastic Rivet

293150230

$1.21

7

LH LATERAL PANEL, ORBITAL BLUE - Call your local BRP dealership

705004220

Unavailable

8

RH LATERAL PANEL, ORBITAL BLUE - Call your local BRP dealership

705004221

$193.82

9

Rubber Bumper

293830005

$5.33

10

STORAGE TRAY, ORBITAL BLUE - Call your local BRP dealership

705004222

$241.51

11

REFLECTIVE SHEET - Call your local BRP dealership

705002185

$10.74

12

Oval Washer

705005156

$4.85

13

Grommet

705003264

$3.43

14

GUARD PLATE - Call your local BRP dealership

705003496

$34.58

15a

Socket Screw M10 X 35

205003544

$1.39

15b

Not Available As Spare Parts

XXX

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Hex. Flange Screw M6 X 20

207662044

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Lever Indicator

705003838

$27.66

20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Flat Washer

224061201

$1.11

23

CAP - Call your local BRP dealership

414859400

$2.78

24

LH INNER FENDER - Call your local BRP dealership

705003634

$13.82

25

Tuflok Plastic Rivet

293150230

$1.21

26

RH INNER FENDER - Call your local BRP dealership

705002124

Unavailable

27

LH DEFLECTOR - Call your local BRP dealership

705002988

$13.82

28

RH DEFLECTOR - Call your local BRP dealership

705002135

$11.51

29

Reflective Sheet

705002085

Unavailable

30

Knob

517303439

$3.73

31

Hex. Screw K50 X 45

241154540

$1.74

32

Washer | DS 650 X

391301600

$0.48

33

Grommet

709000582

$4.38

34

Thread Cover

705004036

$19.20
