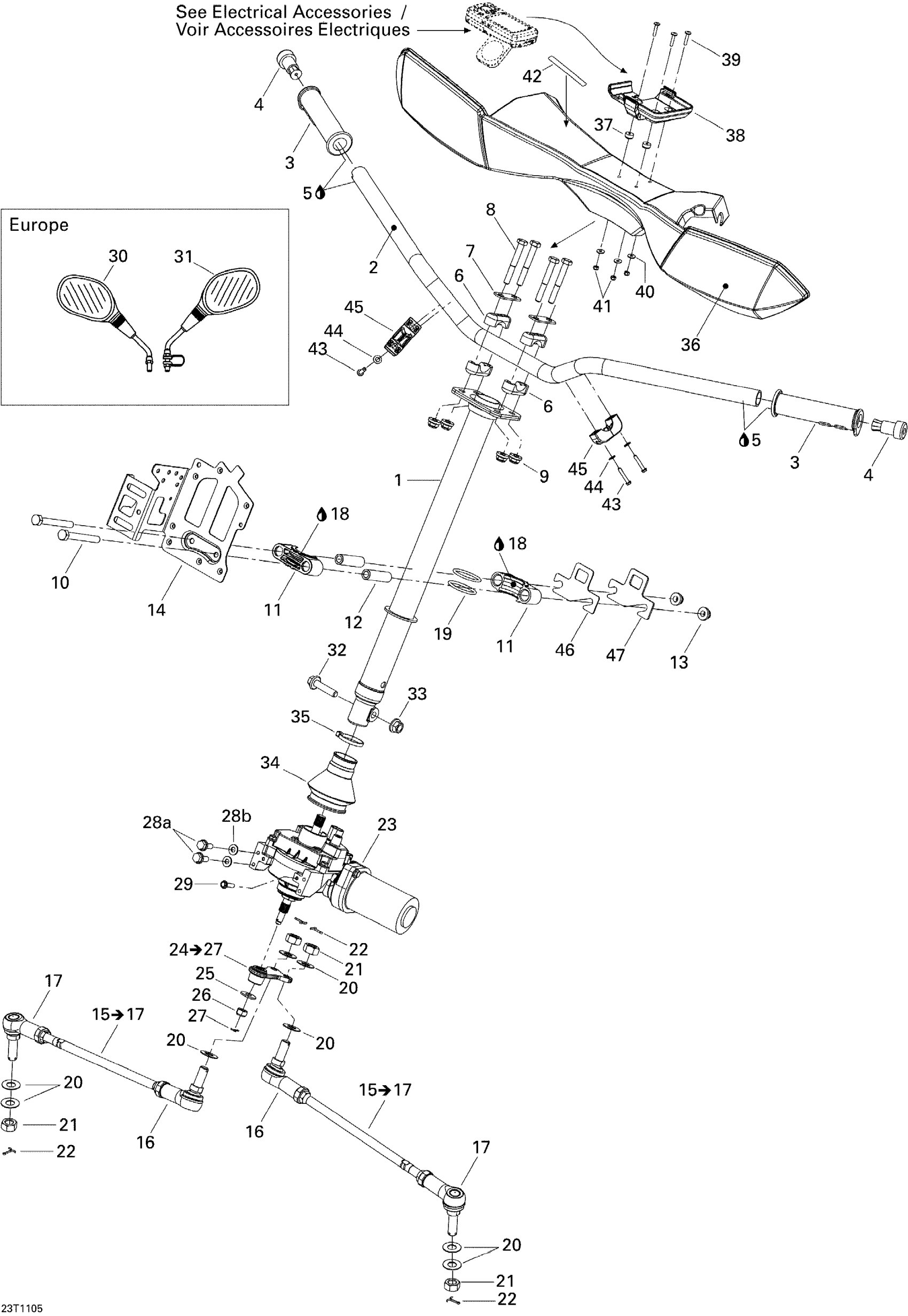

Can-Am Outlander Max 800R EFI Ltd, 2011 Steering Diagram

#

Description
Price

1

Tube-Main

715900573

$119.97

2

Black, Handle Bar

709401240

$55.35

3

Grey, Handle Grip

709400443

$13.83

4

End Piece

709400449

$8.29

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Hex. Screw M8 X 70

207087044

$1.73

11

Half Bushing

709400471

$13.59

12

BUSHING - Call your local BRP dealership

709400072

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

15

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

16

LH Ball Joint

709402303

$35.14

17

Ball Joint, RH Threads

709400487

$50.34

18

Synthetic Grease, 400 G

293550010

Unavailable

19

O-Ring

293300068

$5.29

20

Hardened Washer

706200281

$2.34

21

Nut M12

250100099

$1.64

22

Cotter Pin

211400013

$0.32

23

POWER STEERING ASSIST - Call your local BRP dealership

709401001

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Hardened Washer

706200281

$2.34

26

Hex. Flange Elastic Nut M12

250000047

$1.56

27

Cotter Pin

211400013

$0.32

28a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

28b

Conical Spring Washer M8

234281474

$1.25

29

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.64

30

LH Mirror | Europe

709400406

$36.89

31

RH Mirror | Europe

709400407

$46.12

32

Hex. Flange Screw M8 X 35

207683544

$1.39

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Bellows

709400674

$16.12

35

Tie-Rap 180 mm

414115200

$0.09

36

Handle Bar Protector

703100248

Unavailable

37

Rubber Bumper

709400781

$4.98

38

GPS MODULE SUPPORT - Call your local BRP dealership

709400764

Unavailable

39

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

Unavailable

40

Flat Washer 4 mm, Stainless

234042600

$0.92

41

Elastic Stop Nut M4

232541414

$0.48

42

Decal "Dynamic Power Steering"

704905284

$11.54

43

Hex. Flange Screw K40 X 25

241142560

$2.17

44

Flat Washer | XT

211200035

$0.46

45

U-Clamp | XT

517303264

$11.43

46

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

47

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable
