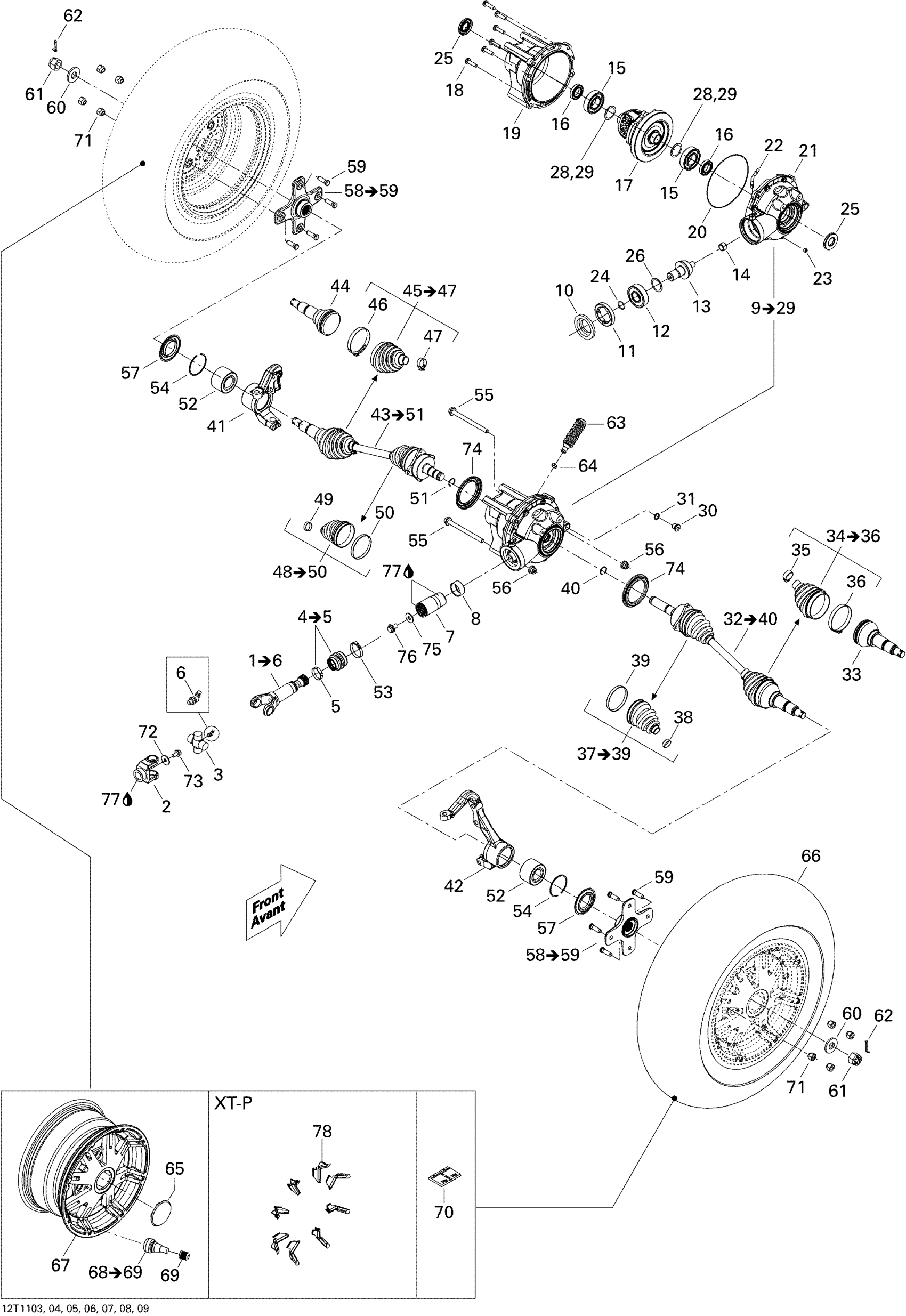

Can-Am Outlander Max 800R EFI Ltd, 2011 Drive System, Front Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$263.05

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$104.58

8

Wear Ring | 4X4

705400036

$25.35

9

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

10

Oil Seal | 4X4

705401481

$18.43

11

Nut | 4X4

705401603

$36.89

12

Ball Bearing | 4X4

705500260

$30.39

13

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

14

Needle Bearing | 4X4

705500261

$17.66

15

Ball Bearing | 4X4

705401606

$49.20

16

Ball Bearing | 4X4

293350044

$30.39

17

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

18

Screw | 4X4

705401601

$9.29

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$16.12

21

Front Cover

705400646

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$11.06

24

O-Ring | 4X4

705500267

$6.25

25

Gasket | 4X4

705401618

$17.66

26

Pinion Gear Shim 1.67 mm

705502061

$16.12

28

Shim | 4X4

705401604

$55.35

29

Shim | 4X4

705401604

$55.35

30

Fill Level Plug | 4X4

705500504

$7.61

31

Copper Washer | 4X4

705500506

$0.36

32

RH Half Shaft | Includes 34 to 39

705401579

$232.74

33

CV Joint

705500560

Unavailable

34

Wheel Boot Kit

705400511

$41.51

35

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

36

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

37

Differential Boot Kit

705400512

$41.51

38

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

39

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH KNUCKLE - Call your local BRP dealership

705400817

Unavailable

42

RH KNUCKLE - Call your local BRP dealership

705400819

Unavailable

43

LH Half Shaft | Includes 42 to 47

705401578

$233.82

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$41.51

46

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

47

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

48

Differential Boot Kit

705400512

$41.51

49

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

50

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$51.93

53

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

54

Circlip

293370019

$4.98

55

Hex. Flange Screw M10 X 125

230602546

$6.08

56

Hex. Flange Elastic Nut M10

233201436

$1.74

57

Wear Sleeve | 4X4

705501121

$7.28

58

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

59

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

60

Conical Spring Washer M18

250200171

$5.28

61

Hex. Flange Castellated Nut M18

232291413

$2.82

62

Cotter Pin

250400036

$1.74

63

Rubber Bellow | 4X4

705400552

$6.02

64

Oetiker Clamp

293650042

$1.40

65

WHEEL CAP - Call your local BRP dealership

705400680

$11.92

66

Tire | XT

705401333

$133.82

66

Front Tire | XT, Red, Yellow, Green, EURO

705401334

$133.05

67

RIM_12 INCH X 6 - Call your local BRP dealership

705400683

Unavailable

68

Rim Valve With Cap

705400193

$6.69

69

Valve Cap

293000110

$1.18

70

1/2 Oz Weight

219704465

$4.35

71

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

72

Flat Washer M12

250200102

$1.74

73

Hex Flange Screw M12 X 16

250001039

$1.74

74

Wear Sleeve

705400780

$7.28

75

Flat Washer M12

250200102

$1.74

76

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

77

Synthetic Grease, 400 G

293550010

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable
