Description

Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$220.74

10a

RH Organic Brake Pad Kit

705601014

$40.74

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$220.74

20a

Pin Set

705601016

$9.98

20b

Bleeding Screw

705601017

$6.45

20c

Retaining Spring

705601018

$7.98

20d

LH Organic Brake Pad Kit

705601015

$40.74

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$239.97

30a

Lever Set

705601013

$59.97

30b

Clamp And Screw Kit

507032477

$23.05

30c

Cap Set

219800096

$23.05

35

RH Front Hose

705601521

$46.12

40a

LH RH Front Hose

705601519

$170.74

40b

LH Front Hose

705601520

$46.12

45

Brake Handle Line | Includes 17 to 18

705600967

$46.12

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Banjo Bolt

705600958

$7.60

60

Copper Washer

705601628

$4.34

60

Copper Washer

705601628

$4.34

65

Bleeding Screw

705601051

$11.98

80

Outlet Hose, Master Cylinder

705601518

$69.20

85

RH Brake Line | Except Europe

705601077

$46.12

85

RH Brake Line

705601078

$59.97

90

Inlet Hose, Master Cylinder

705600973

$64.58

95

Tubing 10 MM 1000MM Long

219704407

$2.20

100

Rear Master Cylinder | Includes 21 to 23

705601273

$253.82

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$216.89

100a

Oil Tank

705601020

$36.89

100b

Oil Housing Hose

705601019

$15.35

105

Grommet

414036300

$2.22

110

Bushing

293900112

$10.14

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.15

125

Hex. Flange Elastic Nut M5

233251414

$1.66

130

Splitter

705600994

$147.66

135

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

$5.28

138

Tie-Rap 180 mm

414115200

$0.09

138

Tie-Rap 180 mm

414115200

$0.09

139

Hex. Flange Screw M6 X 10

210261040

$1.25

140

Pop Rivet 3/16"

390406500

$0.70

150a

Brake Switch

705601250

$59.97

150b

Brake Switch

705601251

$50.74

175

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

175a

Pin Set

705601016

$9.98

175b

Bleeding Screw

705601017

$6.45

175c

Retaining Spring

705601018

$7.98

175d

RH Organic Brake Pad Kit

705601014

$40.74

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$147.66

260

Brake Pedal Spring

705600792

$9.22

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.98

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

380

Disc Brake

705600999

$86.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Disc Brake

705600999

$86.12

440

Hex. Flange Screw M10 X 25

207502546

$1.74

470

Hex. Flange Screw M6 X 20

207662044

$1.66

475

Flat Washer 6 mm

234062410

$0.64

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Brake Pedal Bracket

705202000

$36.89

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Hose Guard

705601893

$4.60

511

Torx Screw M5 X 20

250000724

$1.39

512

Washer M5

250200025

$0.61

513

Panel Nut M5 X 0.8

250000958

$3.48

514

LH Hose Bracket

705601048

$4.60

515

RH Hose Bracket

705601049

$4.60

520

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

521

Torx Screw M5 X 20

250000792

$1.74

522

Washer M5

250200025

$0.61

523

Elastic Flange Nut M5

233251494

$1.74

524

Torx Screw M6 X 16

250000755

$0.72

530

Front Hose Bracket

705600983

$12.68

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

537

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

550

Clamp

293650219

$0.85

560

Clamp

293650220

$0.85

565

Tie Rap, 533 mm

293750047

$1.83

570

Tie Wrap 368 mm

293750008

$0.85

580

Tubing 25 MM 1000MM Long

219704402

$12.69

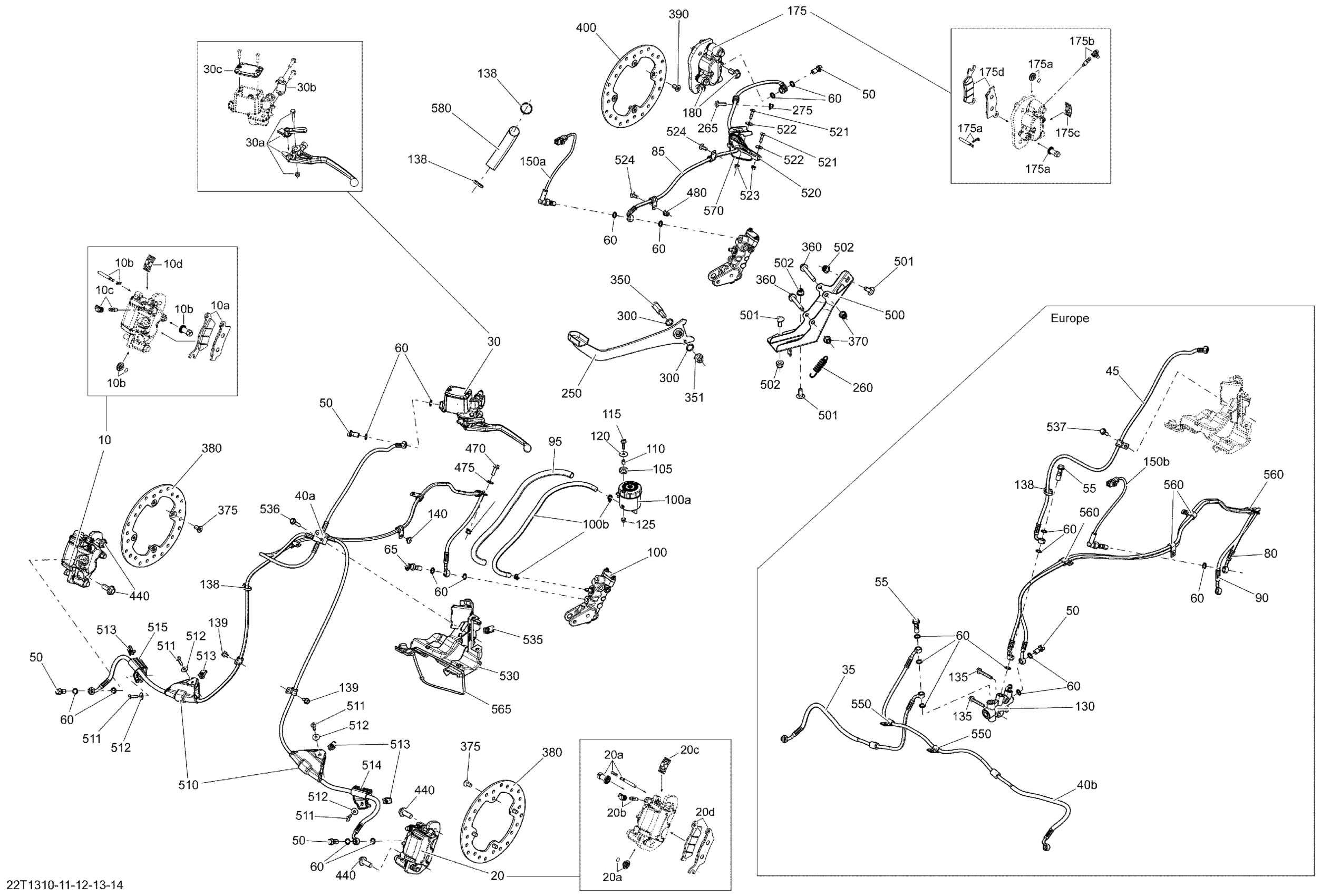

Can-Am Outlander MAX 800R EFI, DPS, XT & XT-P, 2013 Brakes Diagram
