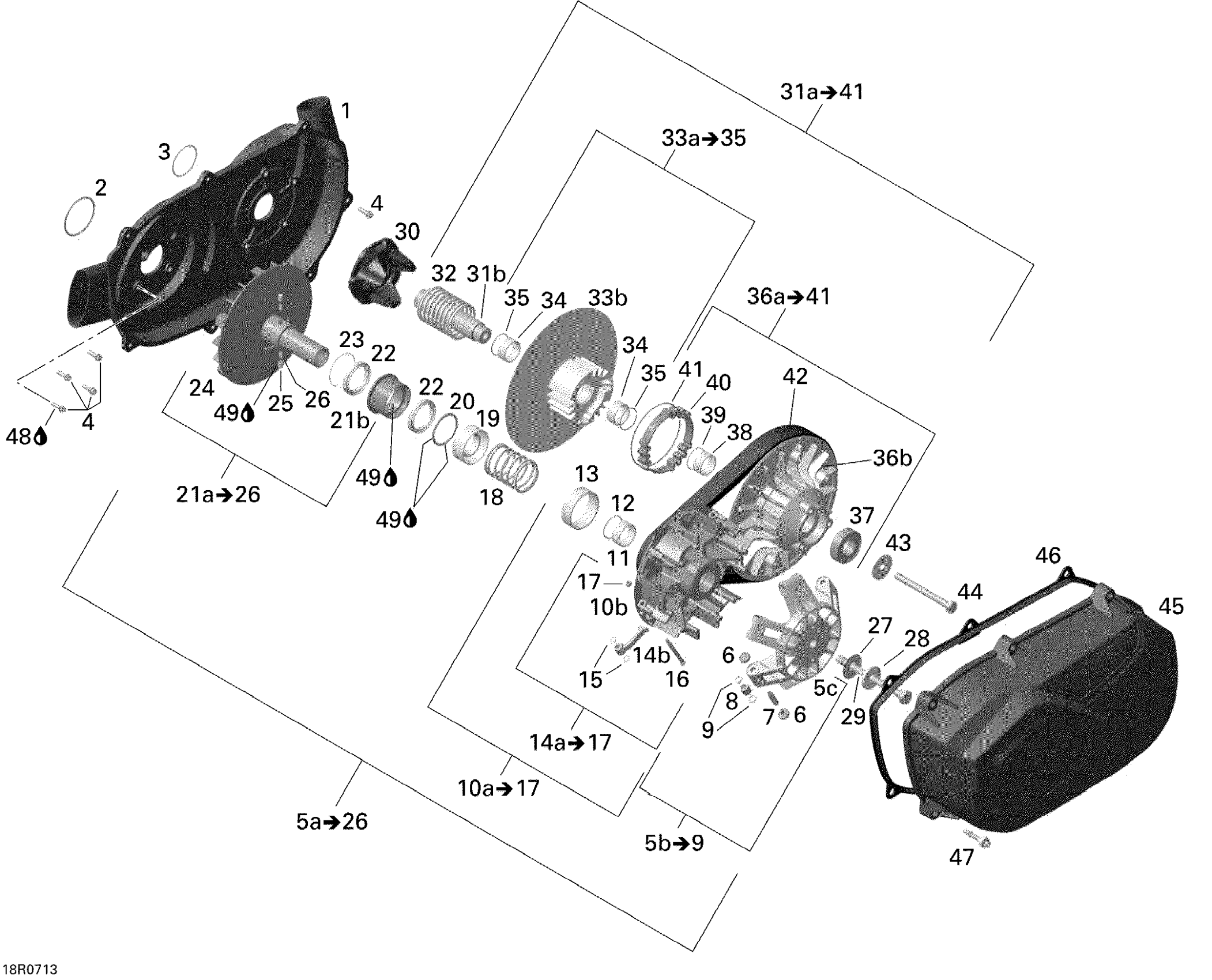

Can-Am Outlander MAX 800 XT 4 X 4, 2007 Transmission Outlander 800EFI Diagram

#

Description
Price

1

CVT Air Guide Kit

420611407

$117.88

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.24

5a

CVT Drive Ass'y | Includes 5 to 26

420684670

Unavailable

5b

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

5c

Not Available As Spare Part - Friction Washer

Unavailable

6

Slider Shoe Set

420281296

$41.01

7

Roller Axle

417223257

$6.37

8

Roller

417223767

$7.15

9

Roller

417223767

$7.15

10a

Outher Half Ass'y | Includes 10 to 17

420280317

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Kit | Includes 14 to 17

420248495

$174.60

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$22.07

19

Seat Spring

420627578

$28.57

20

Friction Washer

420460430

$10.78

21a

Inner Half Ass'y | Includes 21a to 26

420280380

Unavailable

21b

Drive Pulley Clutch

420257195

$109.24

22

Ball Bearing

420632377

$40.27

23

Retaining Ring

420245951

$4.72

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Spring Sleeve

420229577

$14.92

26

Spring

420239134

$2.52

27

Thrust Washer

420627920

$6.93

28

Spring Washer

420627768

$18.63

29

Hex. Screw M12 X 140

420641859

$23.10

30

Cam

420280473

$128.33

31a

CVT Driven Pulley Ass'y | Includes 32a to 42

420684672

Unavailable

31b

Driven Pulley Shaft

420220914

$115.64

32

Compression Spring

420238176

$32.06

33a

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Ball Bearing

420932421

$26.09

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Torque Gear

420660124

$21.61

41

Retaining Ring

420245911

$5.31

42

V-Belt

422280366

$167.13

43

Thrust Washer

420627594

$11.81

44

Hex. Screw M10 X 110

420441485

$11.37

45

Variator Cover

420611397

$196.99

46

Gasket

420430126

$38.78

47

Hex Screw M6 X 30

420440568

$7.10

48

Loctite 243, 10 ml

293800060

$20.77

49

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
