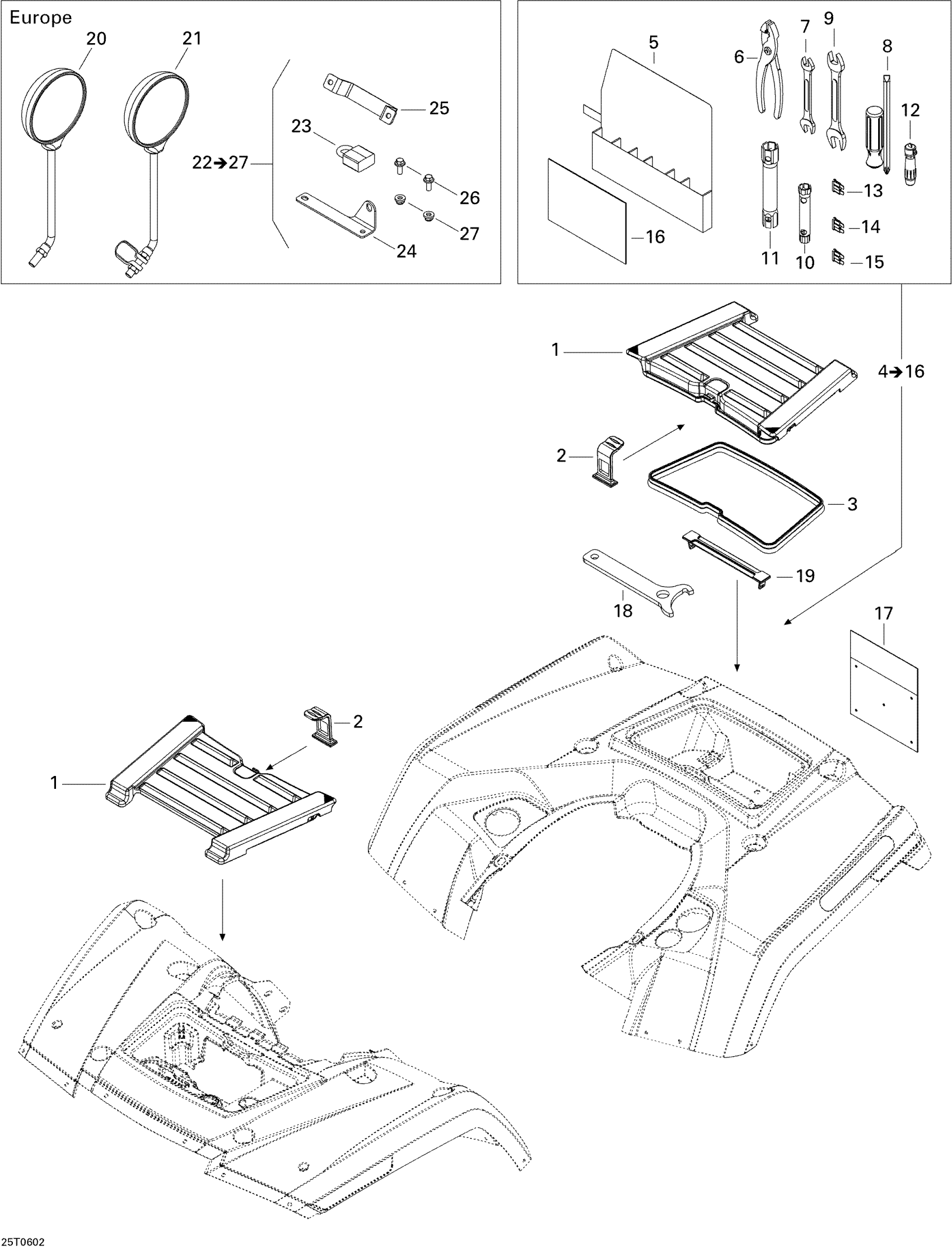

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Front and Rear Trays Diagram
#
Description
Price
2
Cover Latch
708200120
Unavailable
3
Neoprene Seal
293250192
Unavailable
4
TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15
708200124
Unavailable
5
Tool Bag
520000552
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
FORK WRENCH, 10/13 MM - Call your local BRP dealership
529000002
Unavailable
8
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
11
Socket Wrench 16/18 mm
295000175
Unavailable
12
PRESSURE GAUGE - Call your local BRP dealership
529000052
Unavailable
13
Fuse, 30 Amperes
410917200
Unavailable
14
Fuse, 20 Amperes
409003900
Unavailable
15
Fuse, 15 Amperes
278000343
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
19
COVER LATCH KIT - Call your local BRP dealership
708200121
Unavailable
20
LH Mirror | Europe
709400406
Unavailable
21
RH Mirror | Europe
709400407
Unavailable
22
SECURITY KIT - Call your local BRP dealership | Europe / Includes 20 to 25
705600479
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
26
Hex. Flange Screw M8 X 20
207682044
Unavailable
27
Hex. Flange Elastic Nut M8
233281414
Unavailable
