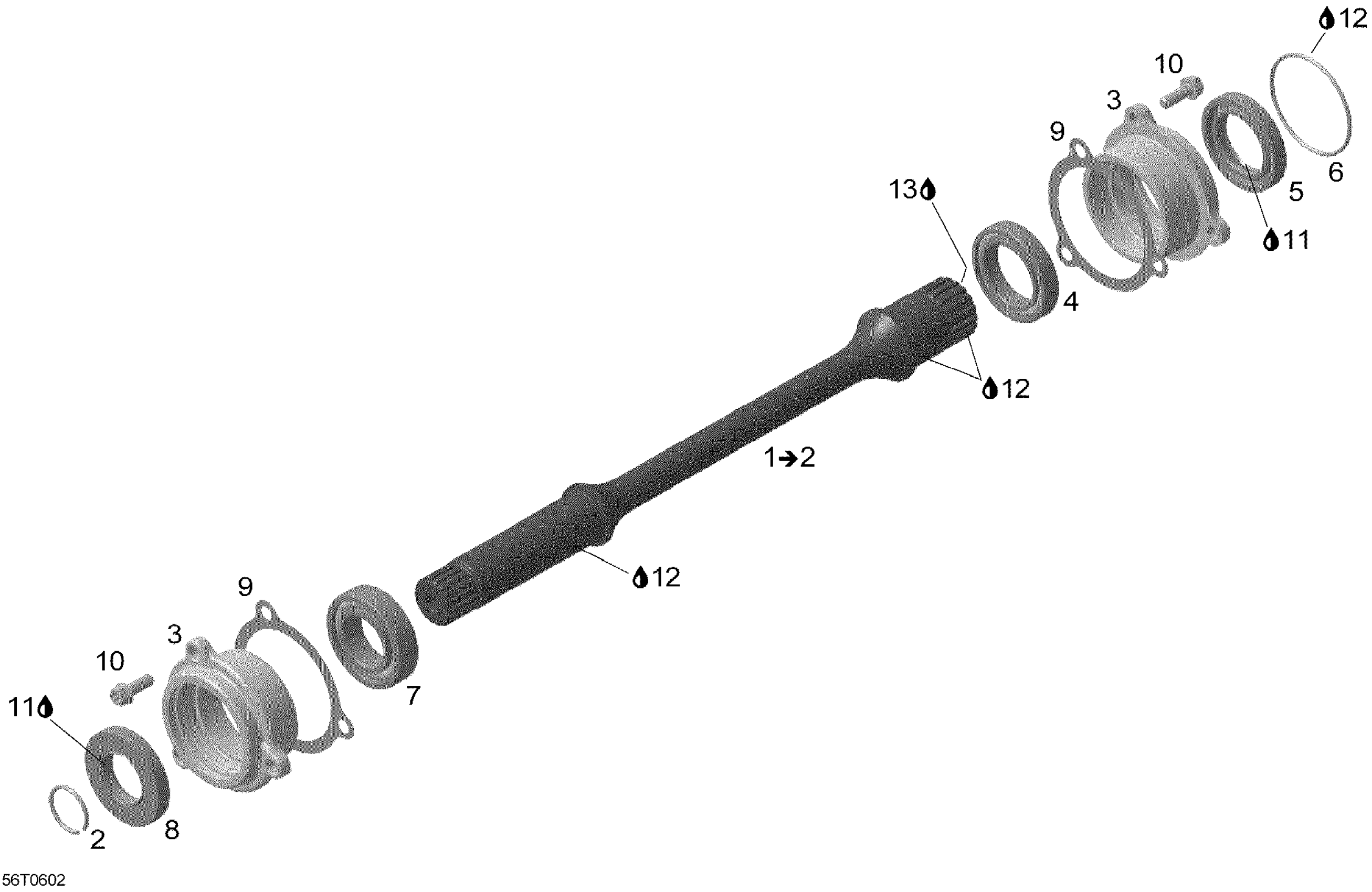

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Drive Shaft (Up to engine number M6377191) Diagram

#

Description
Price

1

DRIVE SHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420620515

Unavailable

1

DRIVE SHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420620515

Unavailable

2

Circlip

420245010

Unavailable

2

Circlip

420245010

Unavailable

3

Bearing Cover

420611223

Unavailable

3

Bearing Cover

420611223

Unavailable

4

Ball Bearing

420632275

Unavailable

4

Ball Bearing

420632275

Unavailable

5

Oil Seal

420850055

Unavailable

5

Oil Seal

420850055

Unavailable

6

O-Ring

420230306

Unavailable

6

O-Ring

420230306

Unavailable

7

Ball Bearing

420232342

Unavailable

7

Ball Bearing

420232342

Unavailable

8

Oil Seal

420430580

Unavailable

8

Oil Seal

420430580

Unavailable

9

GASKET - Call your local BRP dealership

420430160

Unavailable

9

GASKET - Call your local BRP dealership

420430160

Unavailable

10

Torx Flange Screw M6 X 16

420641048

Unavailable

10

Torx Flange Screw M6 X 16

420641048

Unavailable

11

Grease, Super Lube

293550030

Unavailable

11

Grease, Super Lube

293550030

Unavailable

12

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

12

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

13

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

13

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
