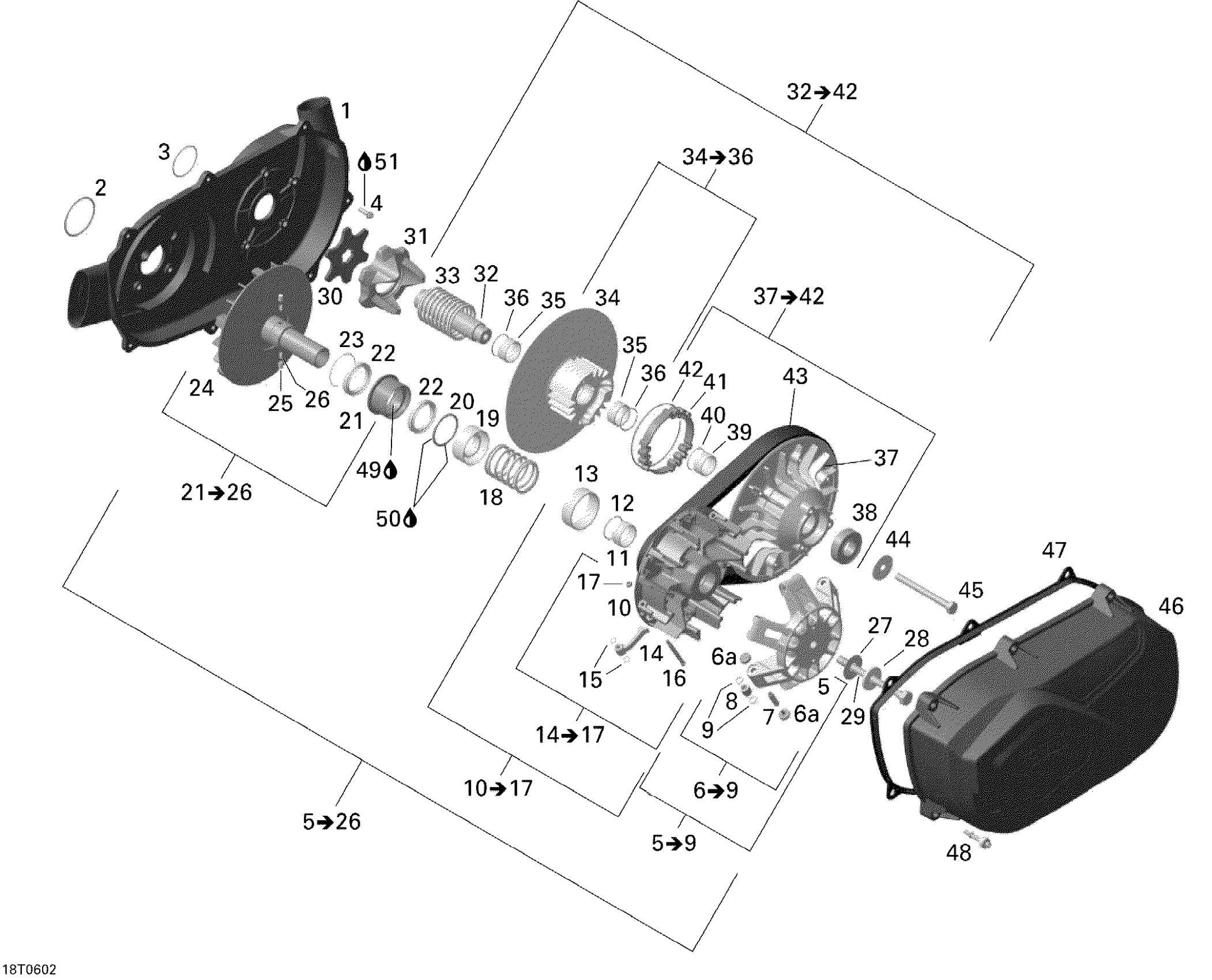

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Transmission Diagram

#

Description
Price

1

CVT Air Guide Kit

420611407

$124.58

2

O-Ring

420430408

$5.52

3

O-Ring

420631089

$5.52

4

Torx Flange Screw M6 X 20

420440207

$2.54

5

CVT Drive Ass'y | Includes 5 to 26

420684670

Unavailable

5

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Roller Ass'y | Includes 6a to 9

420281295

Unavailable

6a

Slider Shoe Set

420281296

$42.28

7

Roller Axle

417223257

$9.22

8

Roller

417223767

$7.37

9

Roller

417223767

$7.37

10-17

Outher Half Ass'y | Includes 10 to 17

420280317

Unavailable

10

Outer Haft

420280467

$198.43

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Centrifugal Lever Kit | Includes 14 to 17

420248495

$179.97

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$22.07

19

Seat Spring

420627578

$28.57

20

Friction Washer

420460430

$10.78

21

Inner Half Ass'y | Includes 21a to 26

420280380

Unavailable

21

Drive Pulley Clutch

420257195

$69.97

22

Ball Bearing

420632377

$40.27

23

Retaining Ring

420245951

$4.72

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Spring Sleeve

420229577

$14.92

26

Spring

420239134

$2.52

27

Thrust Washer

420627920

$7.37

28

Spring Washer

420627768

$20.74

29

Hex. Screw M12 X 140

420641859

$23.05

30

Cam Plate

420627586

$46.12

31

Cam

420280473

$133.82

32

CVT Driven Pulley Ass'y | Includes 32a to 42

420684672

Unavailable

32

Driven Pulley Shaft

420220914

$124.58

33

Compression Spring

420238176

$36.89

34

Inner Half Ass'y | Includes 33 to 35

420248233

$321.74

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$356.39

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Ball Bearing

420932421

$26.89

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torque Gear

420660124

$23.05

42

Retaining Ring

420245911

$5.98

43

V-Belt

422280366

$178.19

44

Thrust Washer

420627594

$12.91

45

Hex. Screw M10 X 110

420441485

$11.98

46

Variator Cover

420611397

$207.66

47

Gasket

420430126

$41.51

48

Hex Screw M6 X 30

420440568

$7.10

49

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

50

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

51

Loctite 243, 10 ml

293800060

$20.77
