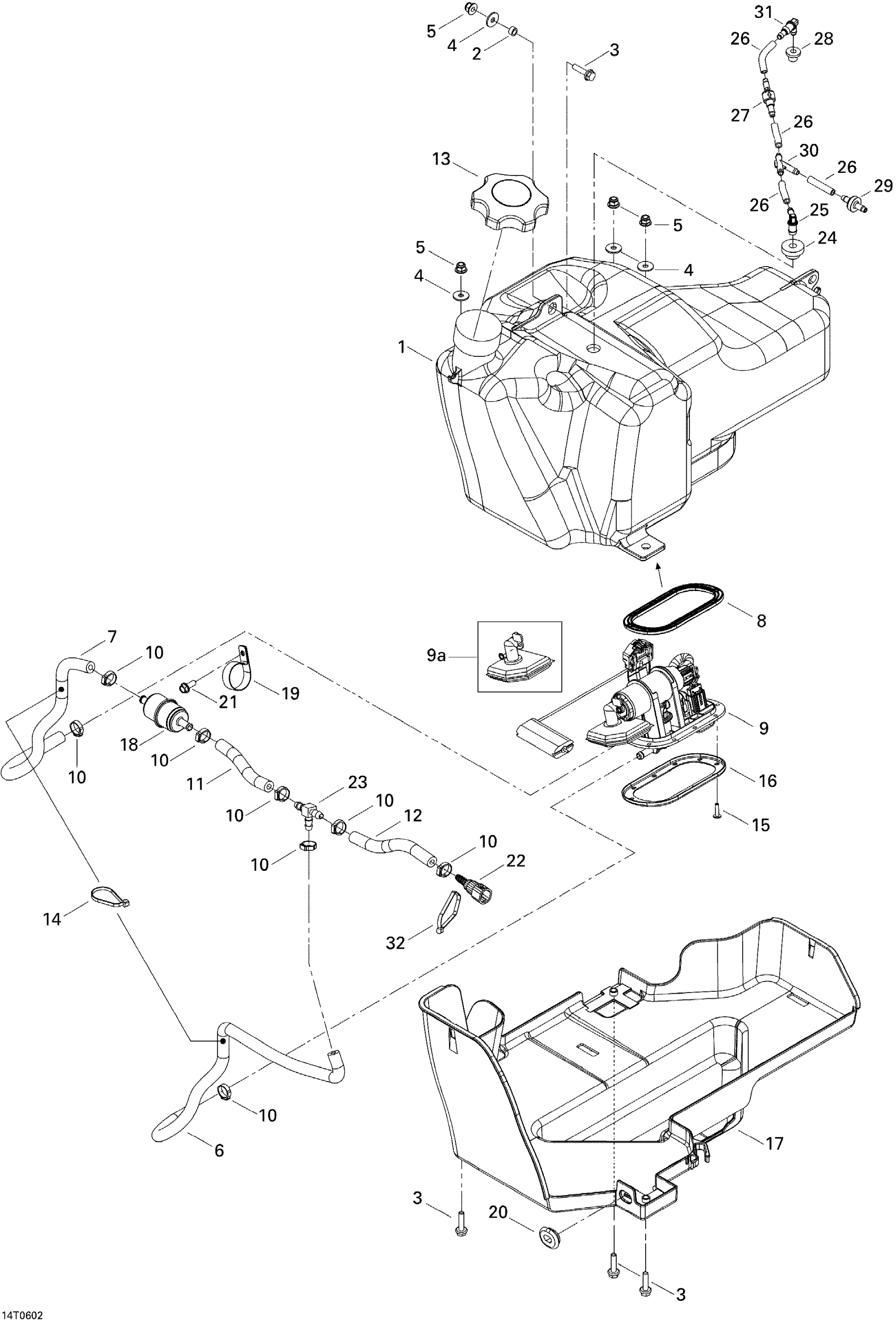

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000084

Unavailable

2

Bushing | DS 650 X

293900104

$5.26

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Flat Washer

250200082

$0.35

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

FUEL HOSE, 7.94 MM - Call your local BRP dealership

513033126

Unavailable

7

FUEL HOSE, 7.94 MM - Call your local BRP dealership

513033126

Unavailable

8

Joint Etanche *Gasket

709000540

$36.89

9

Fuel Pump

703500771

Unavailable

9a

Not Available As Spare Part - Friction Washer

Unavailable

10

Oetiker Clamp

293650046

$2.33

11

FUEL HOSE, 7.94 MM - Call your local BRP dealership

513033126

Unavailable

12

FUEL HOSE, 7.94 MM - Call your local BRP dealership

513033126

Unavailable

13

Fuel Tank Cap

513033025

$19.47

14

Tie-Rap 180 mm

414115200

$0.09

15

Torx Screw M4 X 16

250000750

$1.37

16

Pump Ring

709000170

$15.35

17

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

18

Fuel Filter

513034047

$23.05

19

Open Clamp

513033047

$4.88

20

Oval Washer

705005156

$4.85

21

Hex. Flange Screw M6 X 16

210261650

$1.22

22

Female Quick Fitting Ass'y

709000125

$11.12

23

T-FITTING - Call your local BRP dealership

293710061

Unavailable

24

Grommet

293830136

$8.29

25

Male Connector

414580700

$3.38

26

Hose 6 Mm 15000Mm Long

219704360

$104.62

27

Check Valve

275500505

$25.32

28

Grommet

293720029

$1.13

29

Check Valve

275500398

$8.57

30

Y-Fitting

293710059

$8.19

31

Elbow Male Connector

414580600

$3.50

32

Tie-Rap 180 mm

414115200

$0.09
