Description

Price

1

Air Intake Manifold

420667250

Unavailable

2

Gasket

420630640

$3.85

3

Torx Flange Screw M8 X 55

420641213

$6.11

4

Pressure And Temperature Sensor

707000995

$70.82

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

Intake Adaptor

420267480

$15.35

7

Clamp

420251480

$13.58

8

Throttle Body Ass'y | Includes 8 to 16

420685326

$679.97

9

Position Sensor

420866120

$77.97

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Idle Air Control Valve

420665941

$147.52

13

O-Ring

420631780

$3.61

14

Binding Head Screw M5 X 16

420440911

$11.48

15

Snap Ring

420845710

$3.38

16

Injection Valve

420874402

$181.51

17

O-Ring

420631220

$11.48

18

O-Ring

420631296

$0.74

19

Fuel Rail

420874410

$16.89

20

Torx Flange Screw M6 X 16

420641048

$2.46

21

Clamp

420851458

$7.23

22

FUEL INJECTOR LINE ASS'Y - Call your local BRP dealership

420874712

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

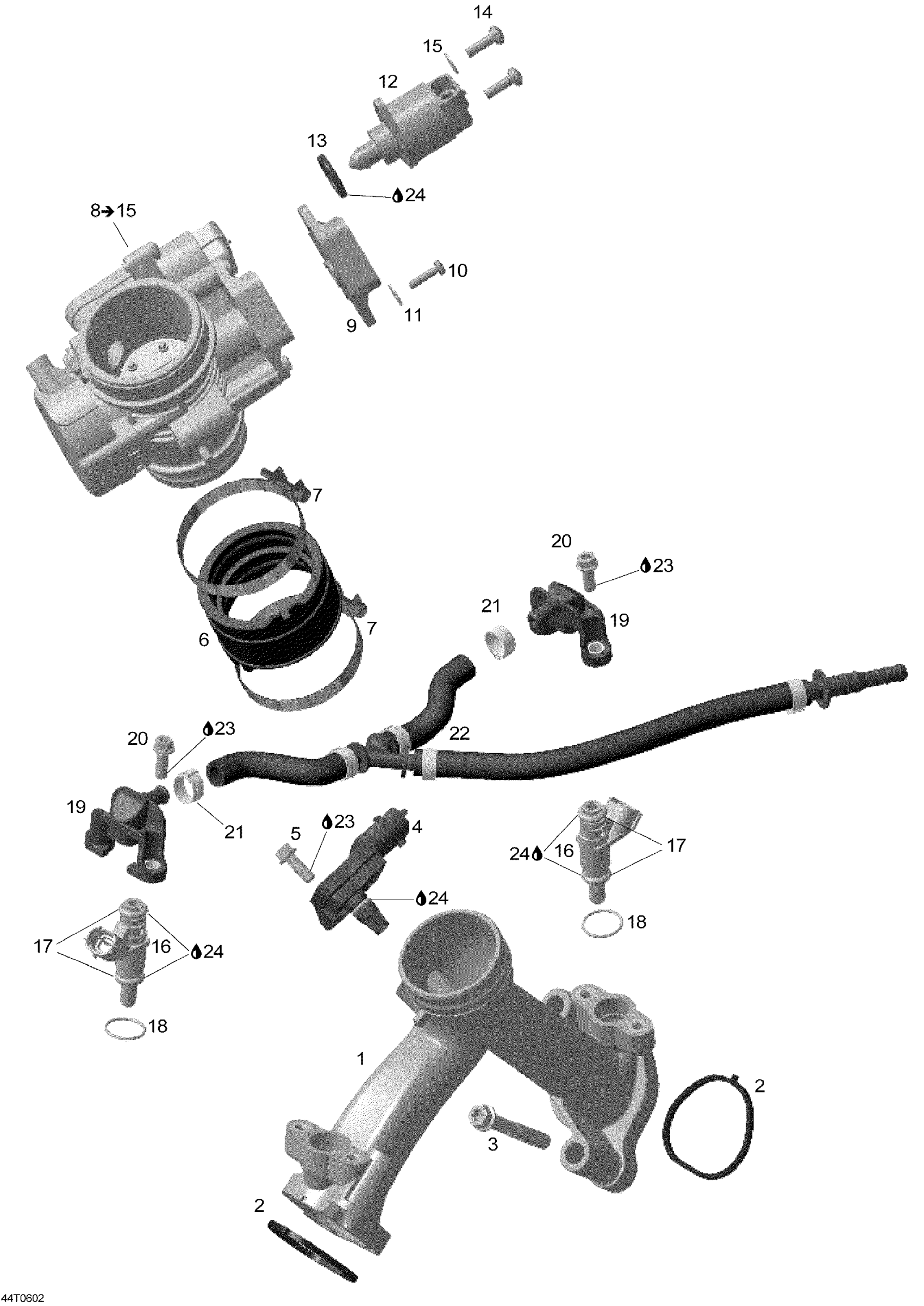

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Intake Manifold And Throttle Body Diagram
