Description

Price

1

Crankcase Ass'y | Includes 1a to 14

420685317

$1,177.58

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$3.52

4

Drive Pin 5 X 10

420929650

$1.54

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

6

Plug Screw M10 X 1

420641323

$13.18

7

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

420840651

Unavailable

8

Location Pin 10 M6x50

420229302

$3.01

9

Plain Bearing

420233960

$22.36

10

Plain Bearing

420233965

$22.36

11

Center Pin 8 X 12

420632010

$3.52

12

Oil Seal

420650315

$11.04

13

Needle Pin

420932780

$7.01

14

Torx Flange Screw M8 X 16

420440852

$3.88

15

Gasket

420651220

$33.55

16

Torx Flange Screw M8 X 65

420440402

$7.01

17

Torx Flange Screw M6 X 35

420440274

$0.96

18

Torx Flange Screw M6 X 75

420440657

$4.15

19

Reed Valve

420224721

$16.39

20

Reed Valve Stop

420224725

$10.76

21

Torx Flange Screw M6 X 16

420641048

$2.82

22

Dowel Pin 10 X 13

420929670

$10.21

23

STUD M8 X 68 - Call your local BRP dealership

420240811

Unavailable

24

STUD M8 X 21 - Call your local BRP dealership

420840716

Unavailable

25

Gasket

420651211

$25.34

26

PTO Cover Ass'y | Includes 25a to 29

420611146

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Bearing Sleeve

420233995

$19.37

28

Oil Seal

420631933

$26.09

29

Plug Screw M10 X 1

420641323

$13.18

30

Hose Nipple

420256332

$16.39

31

Torx Flange Screw M6 X 35

420440274

$0.96

32

Sealing Ring

420950141

$1.88

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$41.01

36

Grease, Super Lube

293550030

$28.33

37

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership

421000672

Unavailable

37

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership

421000672

Unavailable

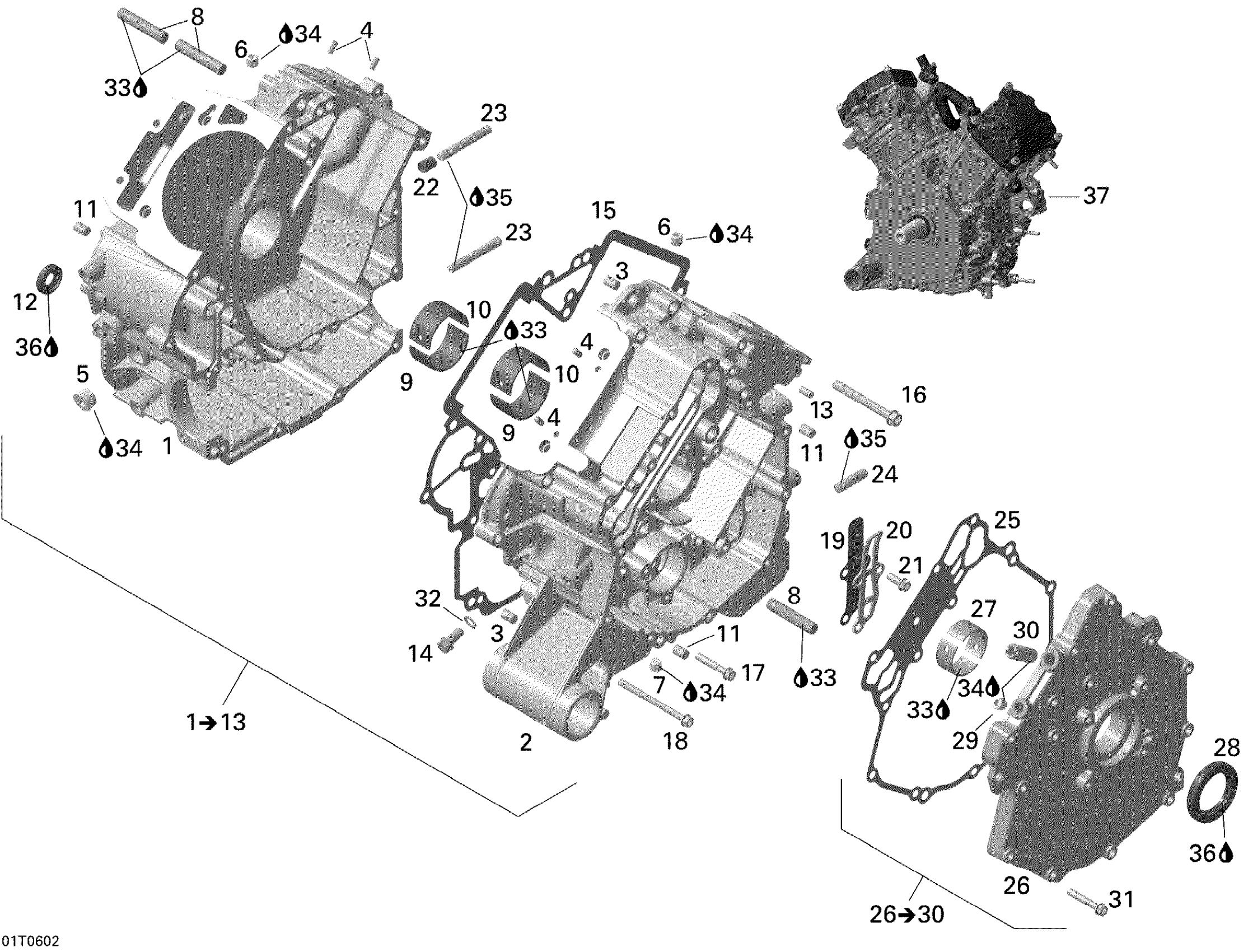

Can-Am Outlander MAX 800 XT 4 X 4, 2006 Crankcase Diagram

Crankcase Ass'y | Includes 1a to 14

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Center Pin 8 X 12

Drive Pin 5 X 10

Plug Screw M18 X 1.5 - Call your local BRP dealership

Plug Screw M10 X 1

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

Location Pin 10 M6x50

Plain Bearing

Plain Bearing

Center Pin 8 X 12

Oil Seal

Needle Pin

Torx Flange Screw M8 X 16

Gasket

Torx Flange Screw M8 X 65

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 75

Reed Valve

Reed Valve Stop

Torx Flange Screw M6 X 16

Dowel Pin 10 X 13

STUD M8 X 68 - Call your local BRP dealership

STUD M8 X 21 - Call your local BRP dealership

Gasket

PTO Cover Ass'y | Includes 25a to 29

Not Available As Spare Part - Friction Washer

Bearing Sleeve

Oil Seal

Plug Screw M10 X 1

Hose Nipple

Torx Flange Screw M6 X 35

Sealing Ring

Not Available As Spare Part - Friction Washer

Loctite 243, 10 ml

Sealant Loctite 648

Grease, Super Lube

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership
