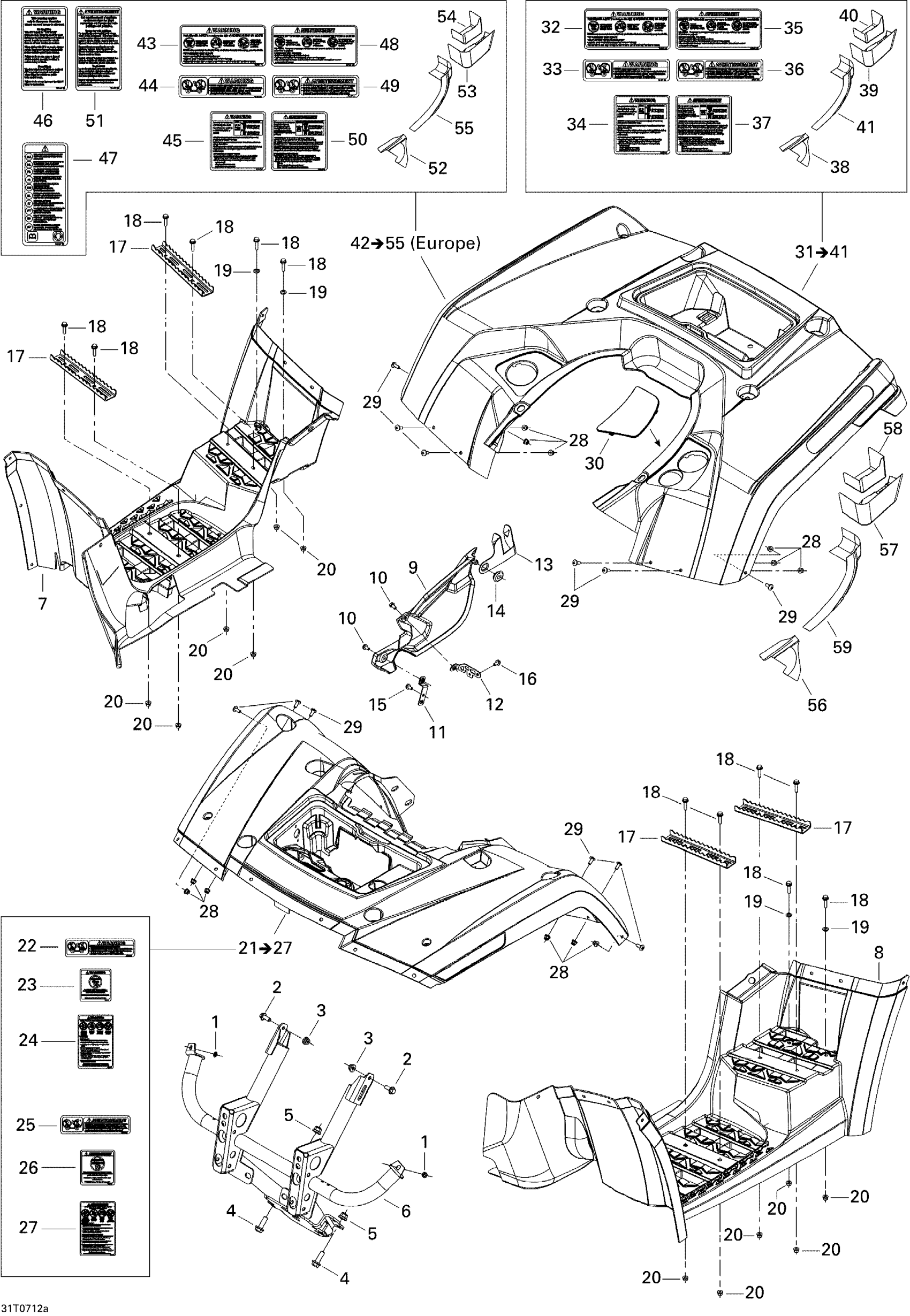

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$1.72

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Screw M10 X 30

207603044

$1.70

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Front Bumper

705003196

$299.97

7

RH Footboard

705002487

$170.74

8

LH Footboard

705003633

$170.74

9

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.56

11

Engine Cover Support

705003646

$7.69

12

Engine Cover Support

705011461

$8.46

13

ENGINE COVER SUPPORT - Call your local BRP dealership

705002121

Unavailable

14

Oval Washer

705005156

$4.85

15

Hex. Flange Screw M6 X 12

210261250

$1.56

16

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

17

Footrest

705003648

$41.51

18

Hex. Flange Screw M6 X 25

207662554

$1.48

19

Lock Washer M6, Black

234161471

$0.52

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

FRONT FENDER KIT, GREY - Call your local BRP dealership | Includes 21 to 27, Steel Gray

715001154

Unavailable

22

Warning Decal, Load | English Version

704901089

Unavailable

23

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

24

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

25

Warning Decal, Load | French Version

704901090

Unavailable

26

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

27

Warning Decall, Death And Injuries | French Version

704900905

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Torx Screw M6 X 16

250000755

$0.72

30

LH Rear Body Panel Cap

705017923

$12.68

31

REAR FENDER KIT, GREY - Call your local BRP dealership | Includes 31 to 41, Steel Gray

715001158

$789.20

32

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

33

Warning Decal, Load | English Version

704901089

Unavailable

34

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901119

Unavailable

35

Warning Decal, Load | French Version

704901090

Unavailable

36

WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version

704901122

Unavailable

37

Warning Decal, Tire Pressure | French Version

704901159

Unavailable

38

Reflective Sheet

705002085

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

705002014

$6.12

40

REFLECTIVE SHEET - Call your local BRP dealership

705002189

$9.20

41

Reflective Sheet

705002191

$9.22

42

REAR FENDER KIT, GREY - Call your local BRP dealership | Includes 42 to 55, Steel Gray, Europe

715001162

$781.51

43

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

44

Warning Decal, Load | English Version

704901089

Unavailable

45

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901119

Unavailable

46

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

47

WARNING DECAL, MULTILINGUAL - Call your local BRP dealership | Europe

704901177

Unavailable

48

WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version

704901122

Unavailable

49

Warning Decal, Load | French Version

704901090

Unavailable

50

Warning Decal, Tire Pressure | French Version

704901159

Unavailable

51

Warning Decal, Public Roads Use | French Version

704901158

Unavailable

52

REFLECTIVE SHEET - Call your local BRP dealership

705002014

$6.12

53

Reflective Sheet

705002191

$9.22

54

REFLECTIVE SHEET - Call your local BRP dealership

705002189

$9.20

55

Reflective Sheet

705002085

Unavailable

56

REFLECTIVE SHEET - Call your local BRP dealership

705002014

$6.12

57

Reflective Sheet

705002191

$9.22

58

REFLECTIVE SHEET - Call your local BRP dealership

705002189

$9.20

59

Reflective Sheet

705002085

Unavailable
