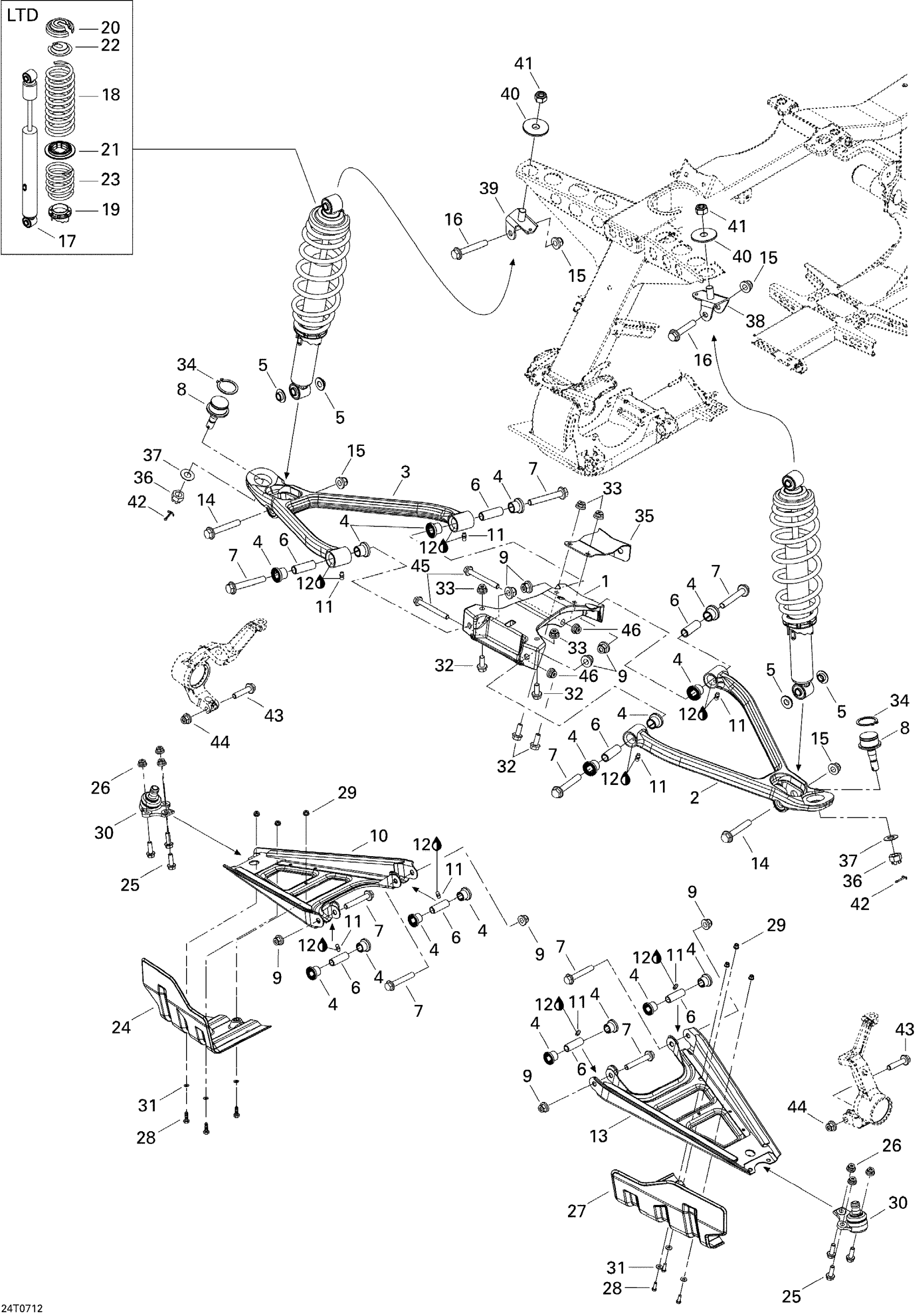

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$147.73

2

LH Upper Arm

706200554

Unavailable

3

RH Upper Arm

706200644

Unavailable

4

Bushing

706200181

$2.45

5

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

6

Sleeve

706201587

$3.36

7

Hex. Flange Screw M10 X 70

207607046

$2.82

8

Ball Joint

706200653

$40.27

9

Hex. Flange Elastic Nut M10

233201436

$2.00

10

Suspension Arm

706205905

$147.73

11

Grease Fitting

408200700

$3.21

12

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

13

Suspension Arm

706205905

$147.73

14

Hex. Flange Screw M10 X 65

207606536

$4.15

15

Hex. Flange Elastic Nut M10

233201436

$2.00

16

Hex. Flange Screw M10 X 55

207605544

$3.19

17

Front Shock | STD

706200408

Unavailable

18

Front Spring | XT

706200566

Unavailable

19

Adjuster Ring

706002356

$16.39

20

Spring Stopper

706200881

$11.82

21

SPRING SPACER - Call your local BRP dealership

706000472

Unavailable

22

Cap

706200785

$4.28

23

FRONT SPRING - Call your local BRP dealership | XT

706200590

Unavailable

24

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$9.24

25

Hex. Flange Screw M8 X 25

207682544

$1.03

26

Hex. Flange Elastic Nut M8

233281414

$1.31

27

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

Unavailable

28

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

29

Hex. Flange Elastic Nut M5

233251414

$1.91

30

Joint Attachment

706200444

$48.48

31

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

32

Hex. Flange Screw M8 X 20

207682044

$1.06

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Circlip 32 mm

293370009

$1.33

35

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

36

Nut M12

250100099

$1.88

37

Hardened Washer

706200281

$2.69

38

LH Upper Bracket

706200440

Unavailable

39

R.H. BRACKET - Call your local BRP dealership

706201036

Unavailable

40

SPACER - Call your local BRP dealership

706200490

Unavailable

41

Elastic Stop Nut M12

232521416

$1.61

42

Cotter Pin

211400017

$0.28

43

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

44

Hex. Flange Elastic Nut M10

233201414

$1.45

45

Hex. Flange Screw M8 X 70

207687044

$7.01

46

Hex. Flange Elastic Nut M8

233281414

$1.31
