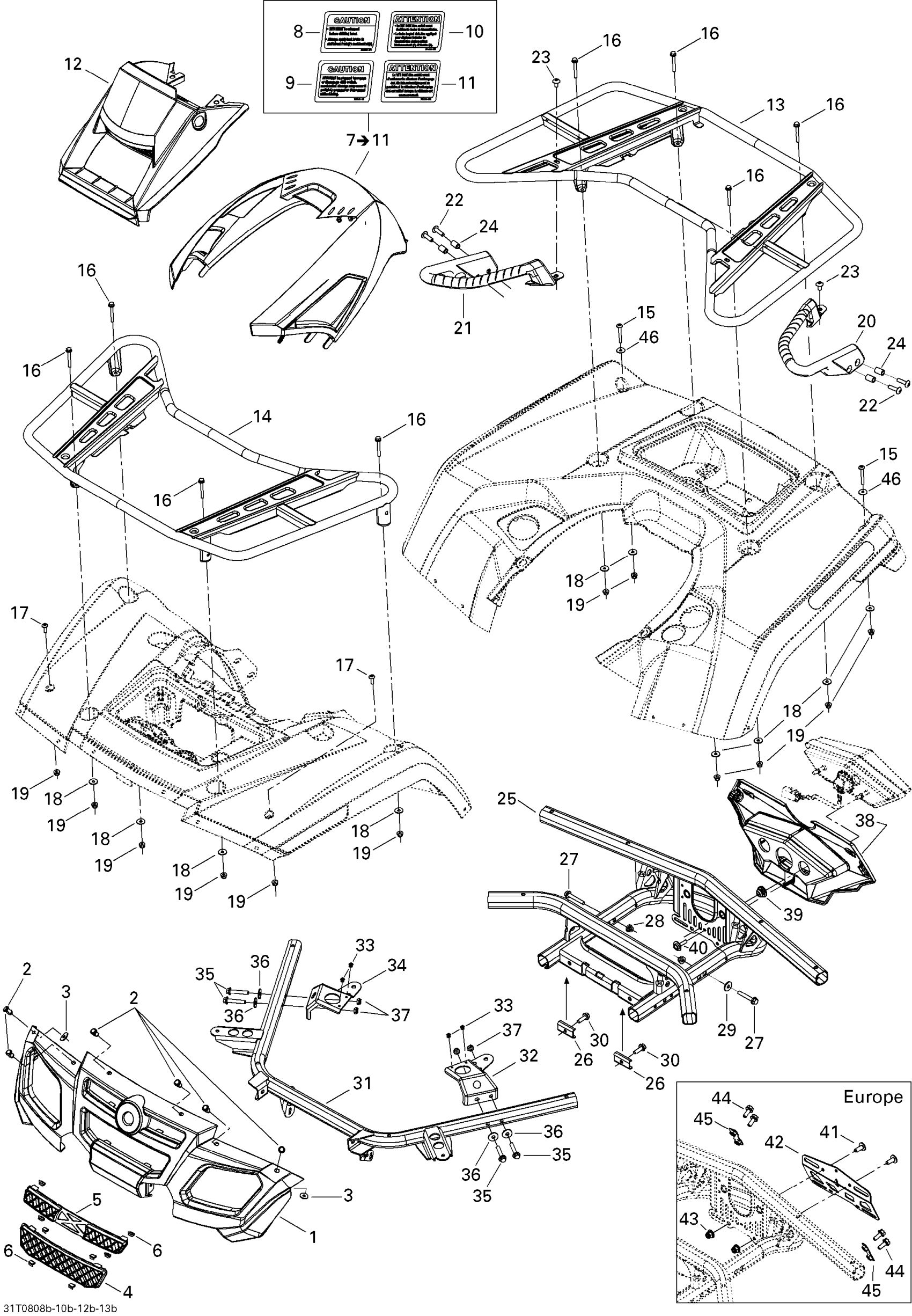

Can-Am Outlander MAX 800 LTD, 2008 Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FACIA (GREY) - Call your local BRP dealership

705002441

$253.05

2

Tuflok Plastic Rivet

293150230

$1.21

3

Washer

506151252

$3.11

4

LOWER GRILL - Call your local BRP dealership

705002283

$8.68

5

Upper Grille

705002284

Unavailable

6

Clip | Europe Models

517306751

$1.97

7

Central Panel Kit, Gray | Includes 7 to 10, Steel Gray

703500665

Unavailable

7

CENTRAL PANEL KIT, GRAY - Call your local BRP dealership | Includes 7 to 10, Steel Gray, Europe

703500675

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

10

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

11

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

12

Dashboard

705003490

$46.12

12

Dashboard | Europe

705002210

Unavailable

13

Rear Luggage Rack

705002617

$267.66

14

Front Luggage Rack

705002616

$267.66

15

Torx Truss Screw M6 X 50

250000749

$3.11

16

Hex. Flange Screw M6 X 50

207665044

$3.38

17

Torx Screw M6 X 20

250000722

$1.34

18

Flat Washer

224061201

$1.11

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

LH Handle

705001944

Unavailable

21

RH Handle

705001945

Unavailable

22

Hex Torx Truss M8 X30

250000745

$3.05

23

Torx Truss Screw M8 X 16

250000746

$2.78

24

Bushing

705002153

$11.06

25

Rear Support

705003656

$267.66

26

U Reinforcement

705003647

$6.92

27

Hex. Flange Screw M8 X 50

207685044

$1.39

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Flat Washer 8 mm

234082410

$1.11

30

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

31

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

32

LH ANCHOR PLATE - Call your local BRP dealership

705000692

$13.83

33

Pop Rivet 3/16"

390402300

$0.64

34

RH Anchor Plate

705002997

$16.89

35

Hex. Flange Screw M8 X 45

207684544

$3.68

36

Flat Washer 8 mm

234082410

$1.11

37

Hex. Elastic Stop Nut M8

232581414

$0.47

38

Rear Facia

705003840

$42.28

39

Stopper Rubber

705014429

$6.09

40

Screw M4 X 16

250000725

$2.87

41

Torx Screw M6 X 16

250000755

$0.72

42

SUPPORT - Call your local BRP dealership | Europe

705002499

$12.20

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

44

Hex Screw Washer Head M8 X 20

207582054

$2.61

45

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

46

Flat Washer

250200040

$1.82
