Description

Price

1

Main Tube, Black

709400971

$170.74

2

Black, Handle Bar

709401240

$55.35

3

Grey, Handle Grip

709400443

$13.83

4

End Piece

709400449

$8.29

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Ball Bearing

709400439

$18.43

11

FLANGE, BEARING - Call your local BRP dealership

709400152

$8.83

12

Flat Washer 12 mm

234021410

$0.68

13

Hex. Flange Elastic Nut M12

250000047

$1.56

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Hex. Flange Screw M8 X 70

207687044

$6.11

17

Half Bushing

709400471

$13.63

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

22

LH Ball Joint

709402303

$35.35

23

Ball Joint, RH Threads

709400487

$50.74

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$5.29

26

Hardened Washer

706200281

$2.34

27

Nut M12

250100099

$1.64

28

Cotter Pin

211400013

$0.32

29

Handle Bar Protector | XT

709400822

$87.66

30

GPS SUPPORT BASE - Call your local BRP dealership

709400446

$14.09

31

GPS Support

709400448

Unavailable

32

GPS SUPPORT PROTECTOR - Call your local BRP dealership

709400450

$14.88

33

POP RIVET 1/8 - Call your local BRP dealership

293150152

$4.68

34

Flat Washer M3, Stainless

234032600

$0.54

35

Hex. Flange Screw K40 X 25

241142560

$2.17

36

Flat Washer | XT

211200035

$0.46

37

U-Clamp | XT

517303264

$11.43

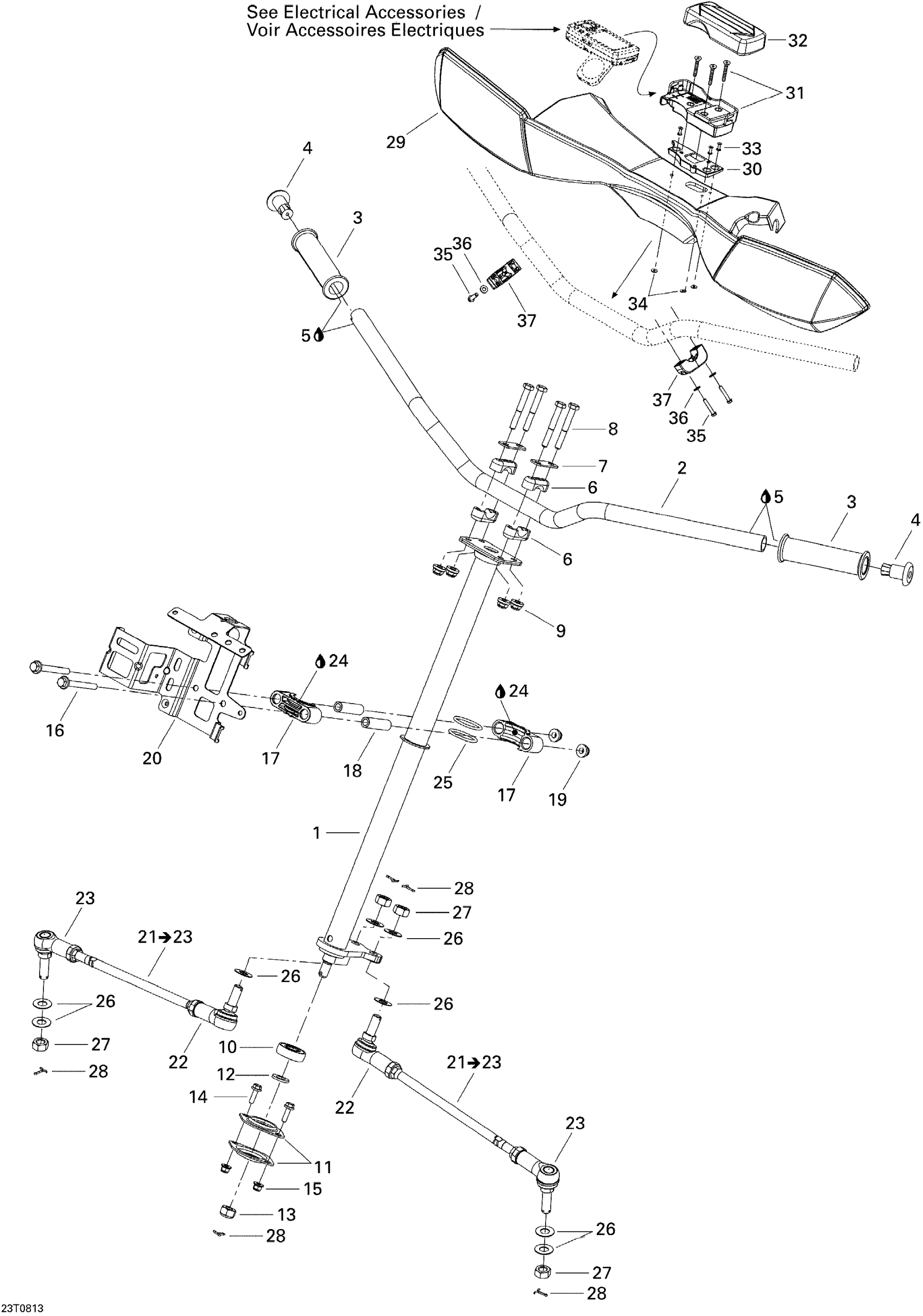

Can-Am Outlander MAX 800 LTD, 2008 Steering Diagram
