Description

Price

1

Gasket

707600317

$10.52

2

Hex. Flange Nut M8

233081416

$1.63

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Spring

415107100

$6.20

5

REAR TUNED PIPE - Call your local BRP dealership

707600530

$146.12

6

Pipe Gasket

707600430

$18.43

7

Norma Gear Clamp

293650177

$9.29

8

Heat Shield

707600889

$36.89

9

Norma Gear Clamp

293650098

$4.28

10

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

11

Flat Washer

250200082

$0.35

12

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.56

14

HEAT SHIELD - Call your local BRP dealership

707600567

$19.20

15

Pop Rivet 3/16"

390406500

$0.70

17

Washer

517124300

$0.16

18

Muffler

707600502

$358.99

18

Muffler

707600503

Unavailable

19

MUFFLER CAP KIT - Call your local BRP dealership

703500701

$143.05

20

Vibration Damper

707603323

$11.98

21

Bushing

293900106

$4.42

22

Hex. Screw M8 X 70

207087044

$1.73

23

Washer

503032900

$3.20

24

Flat Washer 8 mm

234082410

$1.11

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

Protector

707600621

Unavailable

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Sleeve

293900078

$12.68

29

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

30

Grommet

705003932

$2.75

31

Washer

503175800

$3.26

32

Hex. Flange Screw M8 X 70

207687044

$6.11

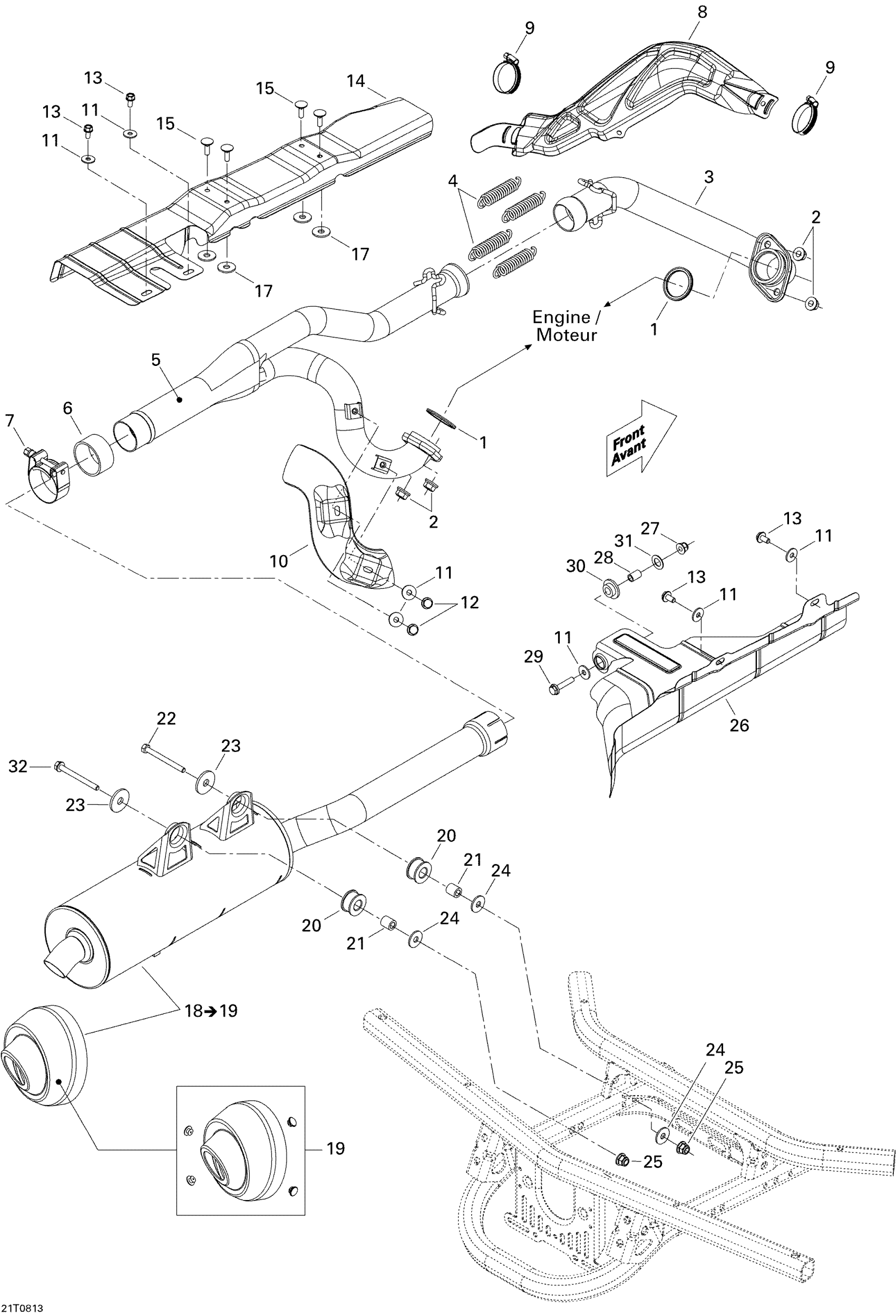

Can-Am Outlander MAX 800 LTD, 2008 Exhaust System Diagram
