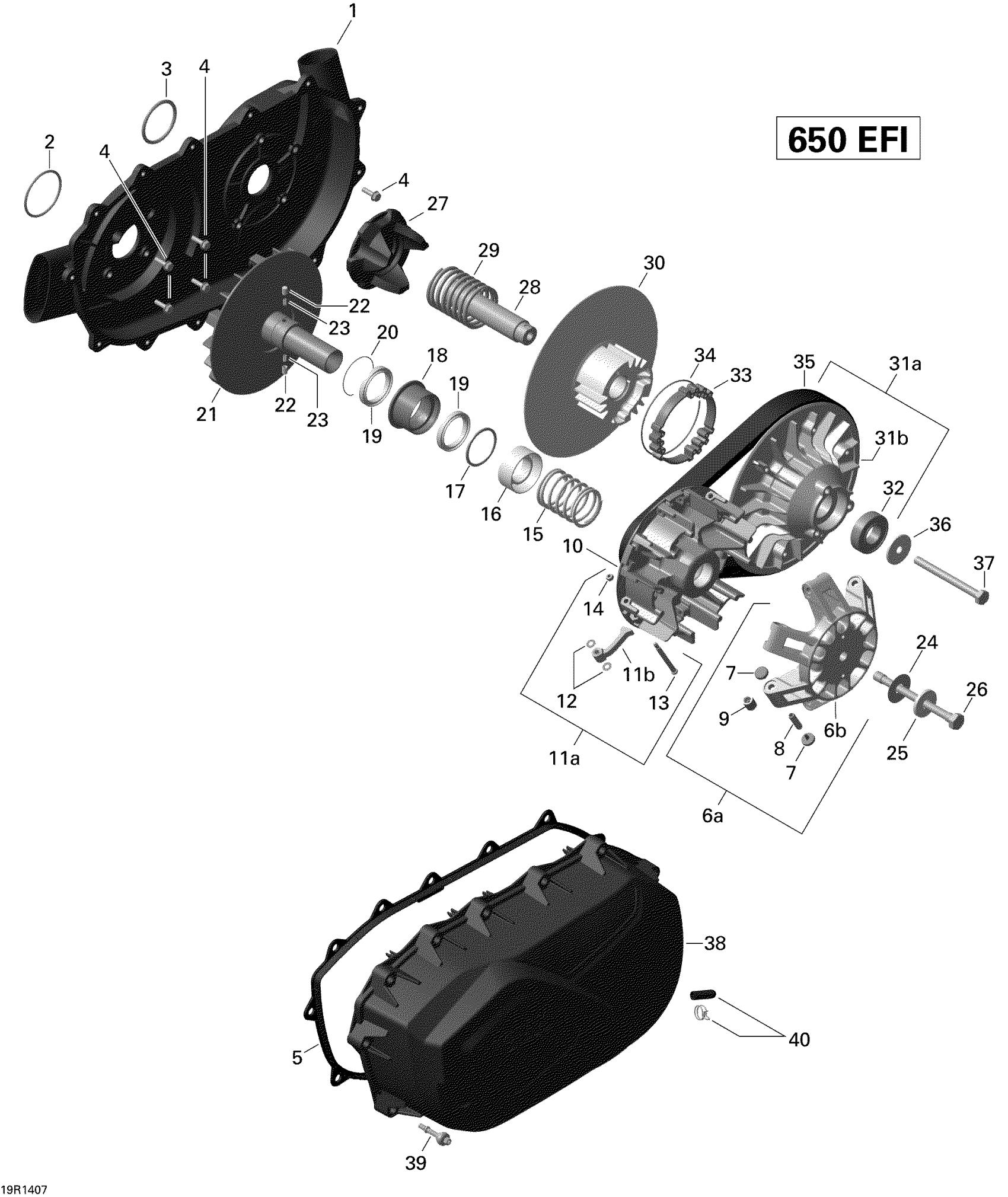

Can-Am Outlander MAX 650EFI STD, DPS, X, XT-P 2014 Transmission Diagram

#

Description
Price

1

CVT Air Guide

420612304

$172.36

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.87

5

Gasket

420430126

$38.78

6a

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$41.01

8

Roller Axle

417223257

$6.37

9

Roller

417223767

$7.15

10

Outer Haft

420280467

$188.03

11a

Centrifugal Lever Set | Includes 14a to 17

420248558

$180.57

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Compression Spring, Drive Pulley

420238610

$25.34

16

Seat Spring

420627578

$32.81

17

Friction Washer

420460430

$12.37

18

Drive Pulley Clutch

420257195

$109.24

19

Ball Bearing

420632377

$46.24

20

Retaining Ring

420245951

$5.39

21

Inner Half

420280374

$170.12

22

Spring Sleeve

420229577

$17.13

23

Spring

420239134

$2.90

24

Thrust Washer

420627920

$6.93

25

Spring Washer

420627768

$18.63

26

Hex. Screw M12 X 140

420641859

$23.10

27

Driven Pulley Cam

420280199

$88.78

28

Driven Pulley Shaft

420220913

$120.87

29

Compression Spring

420238176

$32.06

30

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

31a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

31b

Not Available As Spare Part - Friction Washer

Unavailable

32

Ball Bearing

420932421

$26.09

33

Torque Gear

420660124

$21.61

34

Retaining Ring

420245911

$5.31

35

V-Belt

422280366

$167.13

36

Thrust Washer

420627594

$11.81

37

Hex. Screw M10 X 110

420441485

$11.37

38

Variator Cover

420611397

$196.99

39

Allen Screw M6 x 30,5

420440561

$4.21

40

Drain Plug Kit

707001179

$8.93
