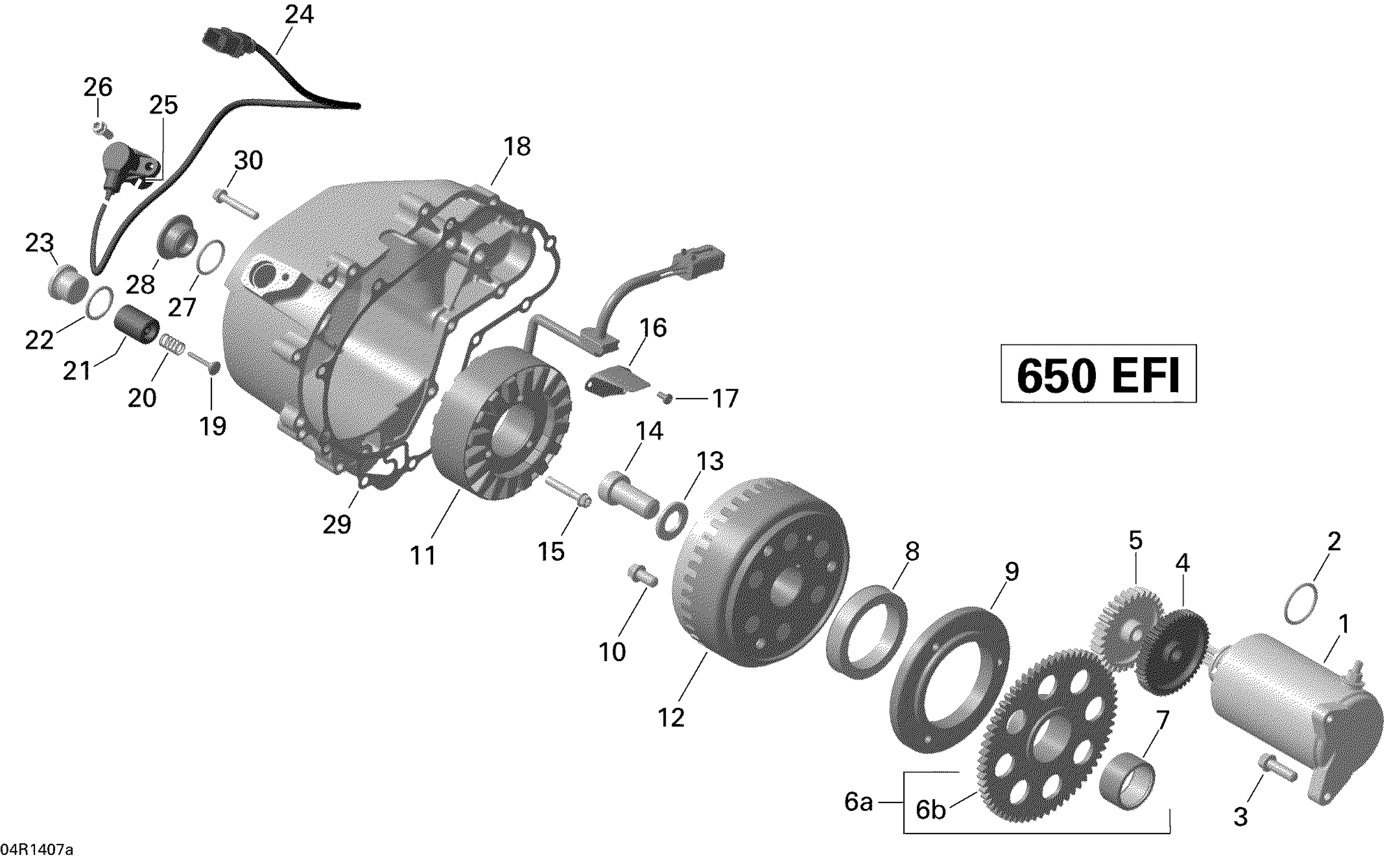

Can-Am Outlander MAX 650EFI STD, DPS, X, XT-P 2014 Magneto And Electric Starter 1_420 Watts Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$252.69

2

O-Ring

420250140

$8.09

3

Torx Flange Screw M8 X 25

420440372

$3.88

4

Starter Double Gear 11/49 T

420634741

$179.07

5

Starter Intermediate Gear, 30 Teeth

420634605

$76.84

6a

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Sprag Clutch

420659111

$235.04

9

Sparg Clutch Housing

420659263

$141.01

10

Torx Flange Screw M8 X 16

420440852

$3.88

11

Stator Plate, 420W

420685920

$284.99

11

Stator Plate, 420W

420685920

$284.99

11

Stator Plate, 420W

420685920

$284.99

12

Flywheel, 420W | STD

420296906

$451.49

12

Flywheel, 420W | STD

420296906

$451.49

12

Flywheel, 420W | STD

420296906

$451.49

13

Shim

420627270

$3.88

14

Socket Head Screw M16 X 35

420241545

$13.18

15

Torx Flange Screw M6 X 35

420641258

$3.19

16

Interior Cable Support Ass'y

420251889

$13.28

17

Phillips Screw M4 X 8

420240196

Unavailable

18

Ignition Cover

420212227

$177.58

19

Pressure Relief Valve

420656370

$16.39

20

Spring

420939481

$4.51

21

Housing

420256487

$7.01

22

Gasket Ring

420650465

$11.18

23

Plug Screw

420640271

$13.09

24

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

25

O-Ring

420431580

$14.10

26

Torx Flange Screw M6 X 16

420641048

$2.82

27

O-Ring

420430782

$5.06

28

Plug Screw M24X 1.5

420241633

$7.01

29

Gasket

420651203

$34.30

30

Torx Flange Screw M6 X 35

420641258

$3.19
