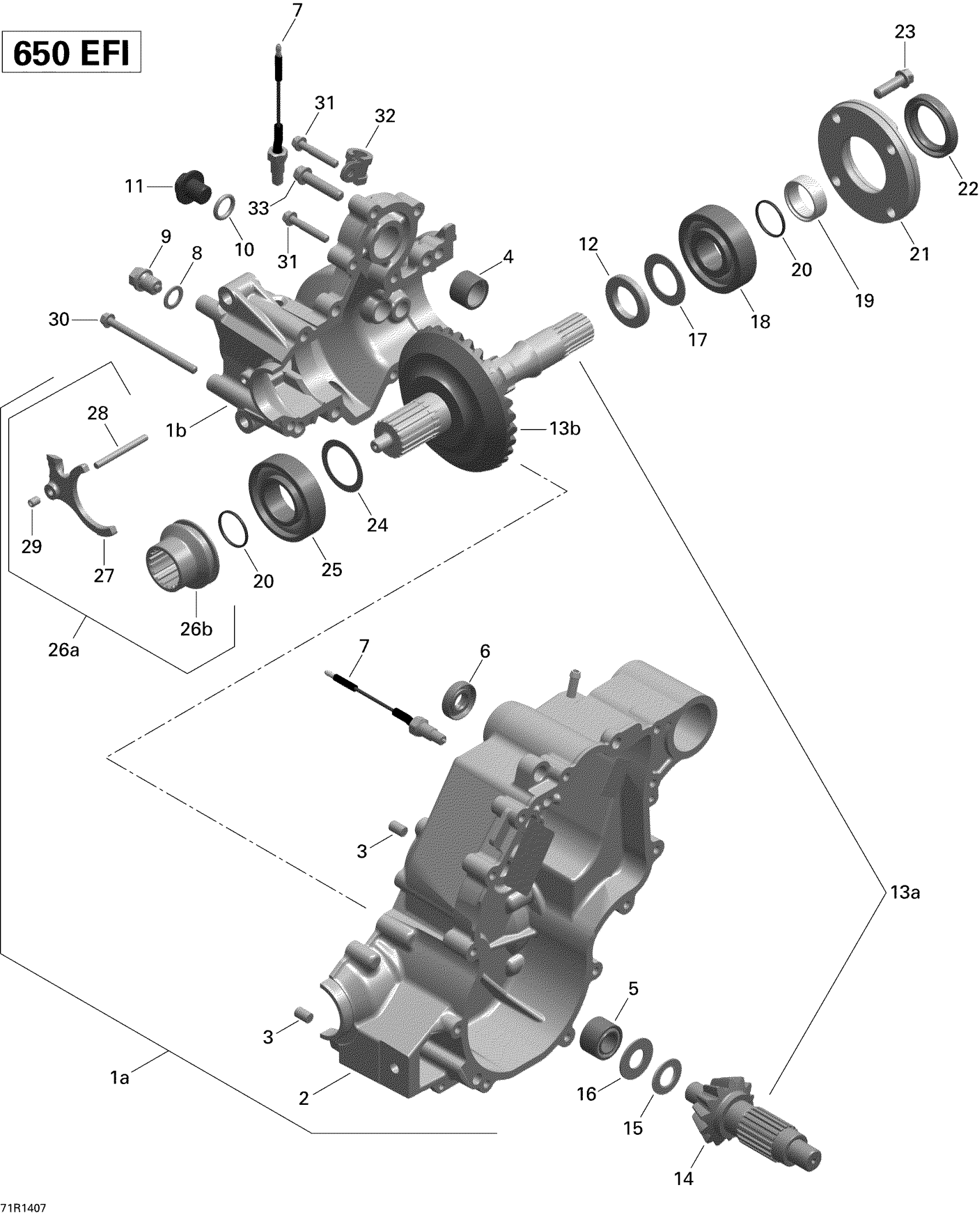

Can-Am Outlander MAX 650EFI STD, DPS, X, XT-P 2014 Gear Box Output Shaft Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$831.31

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$3.52

4

Needle Bushing

420832240

$19.37

5

Needle Bushing

420232085

$35.04

6

Oil Seal

420250450

$15.64

7

3 Position Switch

420640192

$36.54

8

Copper Washer

420250640

$0.93

9

Magnetic Drain Plug M12

420241787

$16.39

10

O-Ring

420650350

$10.12

11

Plug Screw M14 X 1.5

420241662

$13.51

12

Distance Ring

420247772

$19.37

13a

Drive Ass'y | Includes 13a to 14

420635557

$408.18

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

$17.13

16

Thrust Washer Set, MAG Side

420281306

$56.69

17

Washer Thrust Set

420281300

$88.78

18

Ball Bearing

420932822

$28.33

19

Distance Ring

420247114

Unavailable

20

O-Ring

420631612

$4.04

21

Bearing Cover

420611444

$35.04

22

Oil Seal

420950089

$17.88

23

Torx Flange Screw M8 X 25

420440372

$3.88

24

Shim 0.5

420944584

$3.88

25

Ball Bearing

420932580

$8.82

26a

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

30

Torx Flange Screw M6 X 85

420641228

$7.01

31

Torx Flange Screw M6 X 35

420641258

$3.19

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

$7.01
