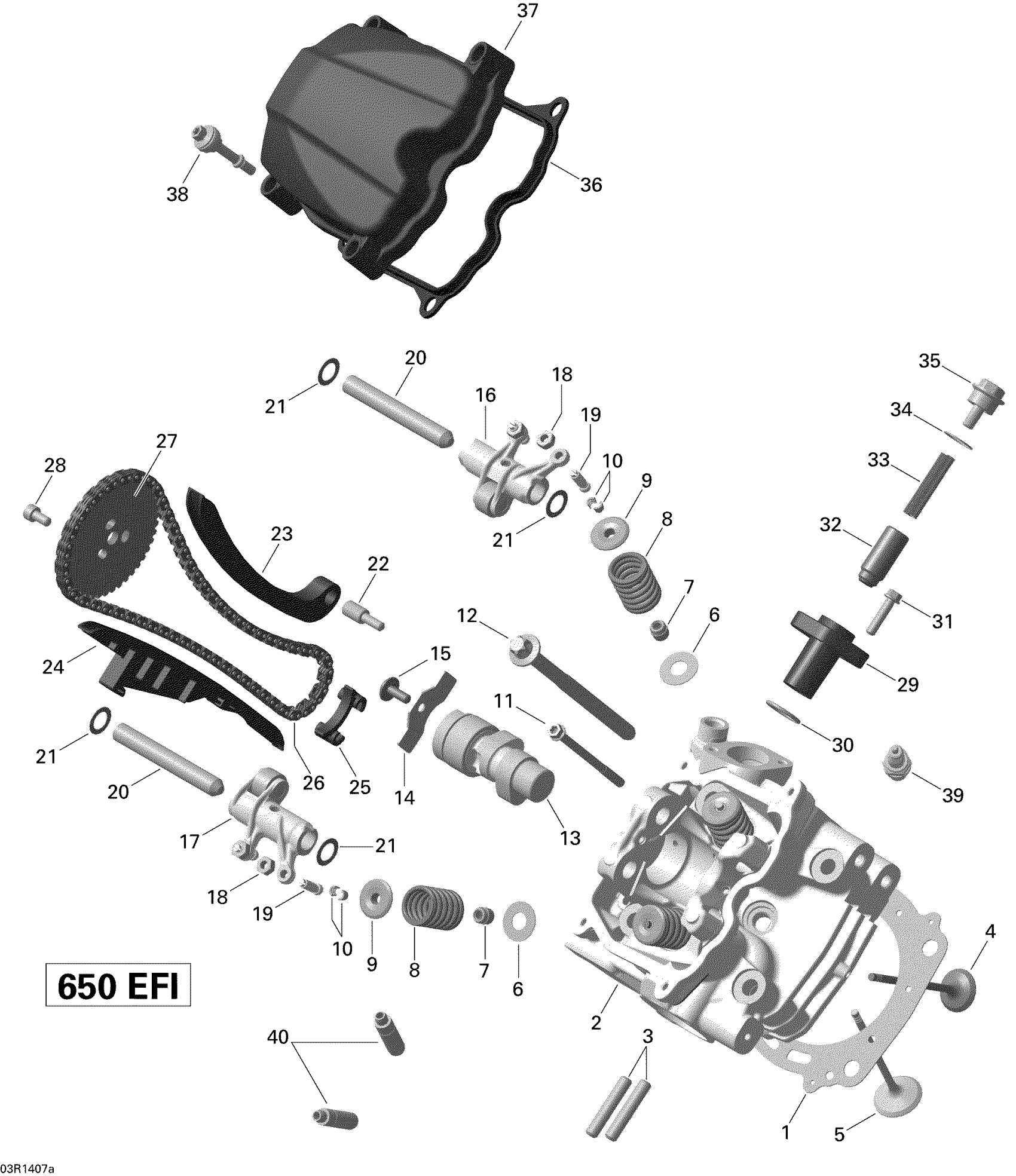

Can-Am Outlander MAX 650EFI STD, DPS, X, XT-P 2014 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 330HO

420630850

$58.18

2

Cylinder Head | Includes 2a to 3

420623941

$660.49

3

Stud M8 x 26

420941014

$12.15

4

Intake Valve 31MM

420254359

$34.30

5

Exhaust Valve 27MM

420254368

$66.39

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420230515

$11.54

8

Valve Spring

420239295

$13.18

9

Valve Spring Retainer

420254132

$13.18

10

Cotter Valve

420254120

$3.88

11

Torx Flange Screw M6 X 85

420641228

$7.01

12

Torx Screw M10X140

420641551

$13.18

13

Camshaft

420637236

$207.43

14

Holding Strip

420627743

$17.13

15

Torx Screw M6 X 16

420241529

$1.79

16

Inlet Rocker Arm

420254907

$134.30

17

Exhaust Rocker Arm

420254911

$137.28

18

Hex Nut M6

420242913

$0.51

19

Adjustment Screw M6 X 0.75

420241337

$4.75

20

Pin #12, Small, M6 X 90

420229712

$14.90

21

Shim

420944382

$3.88

22

Bearing Screw M6

420240943

$4.16

23

Chain Tension Guide

420436015

$23.10

24

Chain Guide

420236584

$7.09

25

Chain Guide

420236351

$13.70

26

Silent Chain

420297063

$61.91

27

Timing Gear 42T

420254438

$17.13

28

Allen Screw M6 X 12

420840032

$4.15

29

Chain Tensioner Housing

420236510

$10.76

30

O-Ring

420430373

$3.01

31

Torx Flange Screw M6 X 25

420641238

$3.07

32

Chain Tensioner Plunger

420236521

$14.04

33

Spring

420238120

$7.01

34

O-Ring

420250890

$2.87

35

Plug Screw

420641150

$7.01

36

Gasket

420630260

$8.09

37

Valve Cover

420610393

$25.34

38

Allen Screw M6 x 30,5

420440561

$4.21

39

Spark Plug, NGK DCP-R8E

715900637

$6.49

40

Valve Guide

420254374

$28.99
