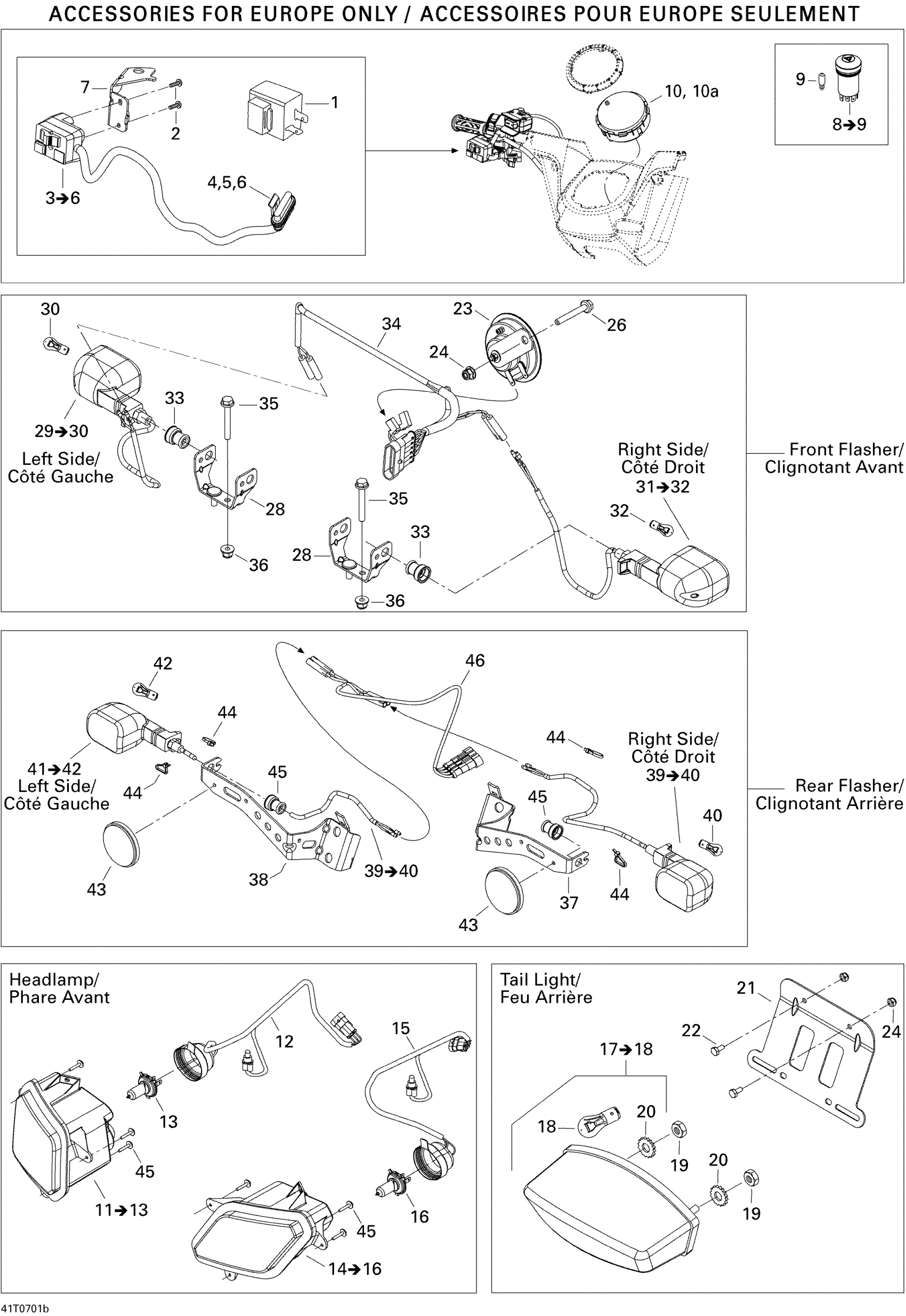

Can-Am Outlander MAX 650 XT 4 X 4, 2007 Electrical Accessories Euro Diagram

#

Description
Price

1

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

Unavailable

2

Screw Hex. M4 X 12

207141260

$1.43

3

FLASHER SWITCH - Call your local BRP dealership | Includes 3 to 6

710000904

Unavailable

4

Connector

710000780

$17.88

5

Female Terminal

278001014

$3.12

6

Wire Seal

278001013

$3.12

7

Switch Support

710000905

Unavailable

8

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

9

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

10

SPEEDOMETER - Call your local BRP dealership

710001061

Unavailable

10a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

11

RH Headlamp Ass'y | Includes 11 to 13

710000861

$117.88

12

Headlamp Harness

710000923

$44.00

13

Bulb, 12V 35/35W

710000871

$32.06

14

LH Headlamp Ass'y | Includes 14 to 16

710000862

$117.88

15

Headlamp Harness

710000923

$44.00

16

Bulb, 12V 35/35W

710000871

$32.06

17

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$52.21

18

Bulb

520000758

$8.60

19

Hex. Nut M6

232061600

$1.04

20

External Serrated Lock Washer 6 mm

234461608

$1.06

21

Support

705002377

Unavailable

22

Hex. Cap Screw M6 X 12

207161260

$1.21

23

Horn

710004791

$36.54

24

Hex. Elastic Stop Nut M6

232561600

$1.06

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

Hex. Flange Screw M6 X 45

207664544

$1.22

28

BRACKET - Call your local BRP dealership

710000978

Unavailable

29

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

34

Front Fender Harness | Europe Models, Includes 81 To 89

710000814

Unavailable

35

Hex. Flange Screw M6 X 45

207664544

$1.22

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

RH FLASHER BRACKET - Call your local BRP dealership

710001014

Unavailable

38

LH FLASHER BRACKET - Call your local BRP dealership

710001016

Unavailable

39

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

REFLECTOR - Call your local BRP dealership | Europe Models

710000775

Unavailable

44

Tie Wrap 142 mm

293750002

$1.01

45

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

46

REAR FENDER HARNESS - Call your local BRP dealership

710001032

Unavailable
