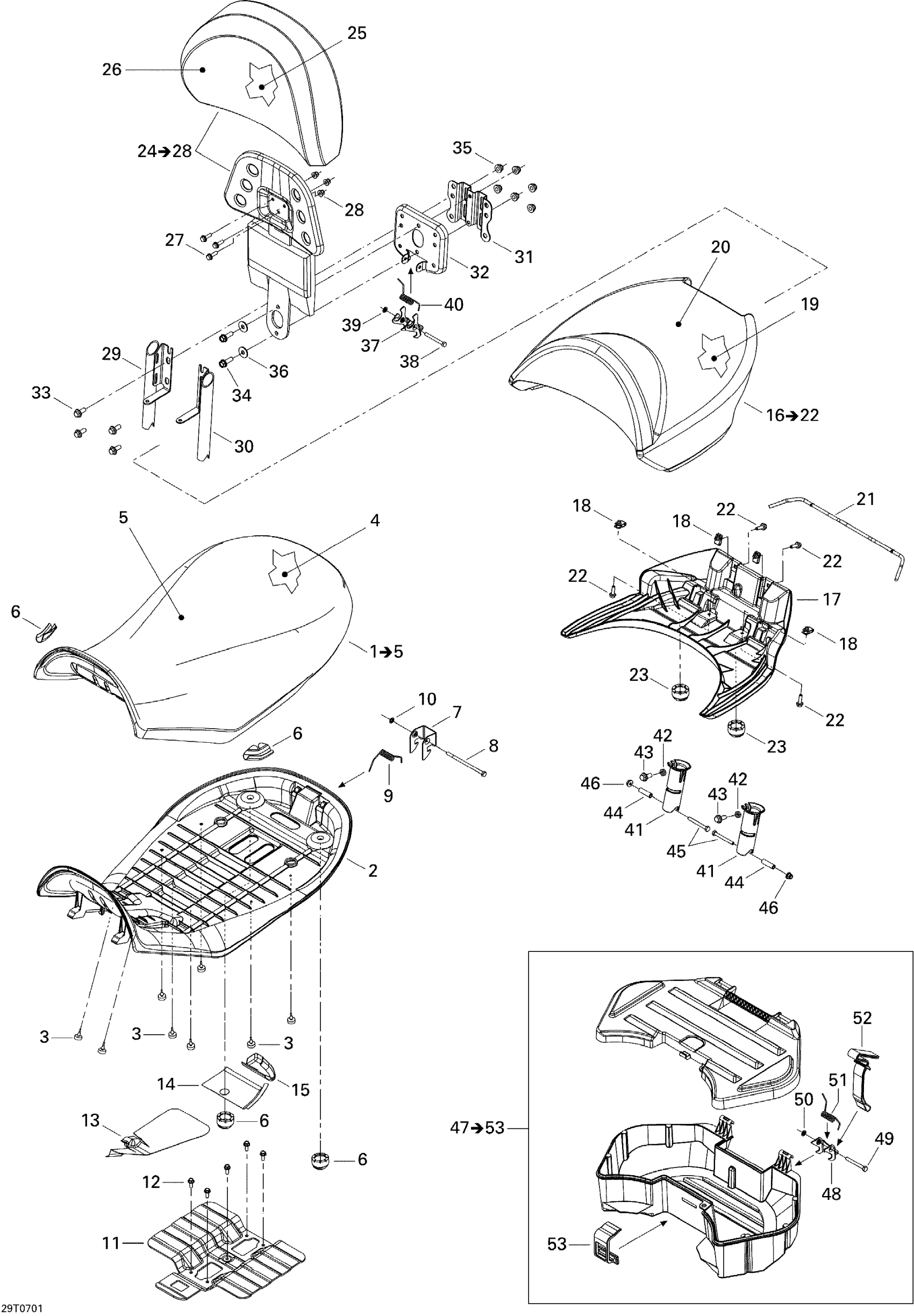

Can-Am Outlander MAX 650 XT 4 X 4, 2007 Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

$461.51

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$3.61

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000538

$87.66

6

Bumper Rubber

708000760

$9.11

7

Latch, Black

708000144

$11.09

8

Hex. Screw M6 X 110

230061044

$1.25

9

Spring

708000369

$8.60

10

Push Nut

732610072

$1.72

11

Seat Reinforcement

708000512

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

$1.56

13

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000470

$4.69

15

HEAT SHIELD - Call your local BRP dealership

708000957

$4.58

16

Rear Seat Ass'y | Includes 16 to 20

708000805

$221.51

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Panel Nut M6 X 1.0

250100198

$1.73

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Seat Cover

708000457

$161.51

21

LATCH HANDLE - Call your local BRP dealership

708000822

$15.35

22

Hex. Flange Screw M6 X 20

207662044

$1.66

23

Bumper Rubber

708000760

$9.11

24

Backrest Ass'y

708000809

$489.20

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Backrest Cover

708000465

$124.58

27

Hex. Flange Screw M6 X 20

207662044

$1.66

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

LH BACKREST STEM - Call your local BRP dealership

708000439

$29.20

30

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

31

REAR PLATE - Call your local BRP dealership

708000855

$23.05

32

FRONT PLATE - Call your local BRP dealership

708000446

$28.43

33

Hex. Flange Screw M8 X 20

207682044

$0.92

34

Hex. Flange Screw M8 X 25

207682544

$0.90

35

Hex. Flange Elastic Nut M8

233281414

$1.14

36

Flat Washer 8 mm

234082410

$1.11

37

LATCH - Call your local BRP dealership

708000448

$8.94

38

Hex. Screw M6 X 55

207065544

$1.70

39

Push Nut

732610072

$1.72

40

Spring

708000369

$8.60

41

ROD GUIDE - Call your local BRP dealership

708000461

$9.74

42

Hex. Jam Nut M8

232180600

$0.56

43

Hex. Screw M8 X 20

207182044

$0.61

44

INNER BUSHING - Call your local BRP dealership

708000462

$9.74

45

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

$1.28

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

$86.89

48

LATCH - Call your local BRP dealership

708200066

$13.83

49

Hex. Screw M6 X 55

207065544

$1.70

50

Push Nut

732610072

$1.72

51

Spring

708000369

$8.60

52

BELT - Call your local BRP dealership

510004495

Unavailable

53

Cover Latch

708200120

$13.52
