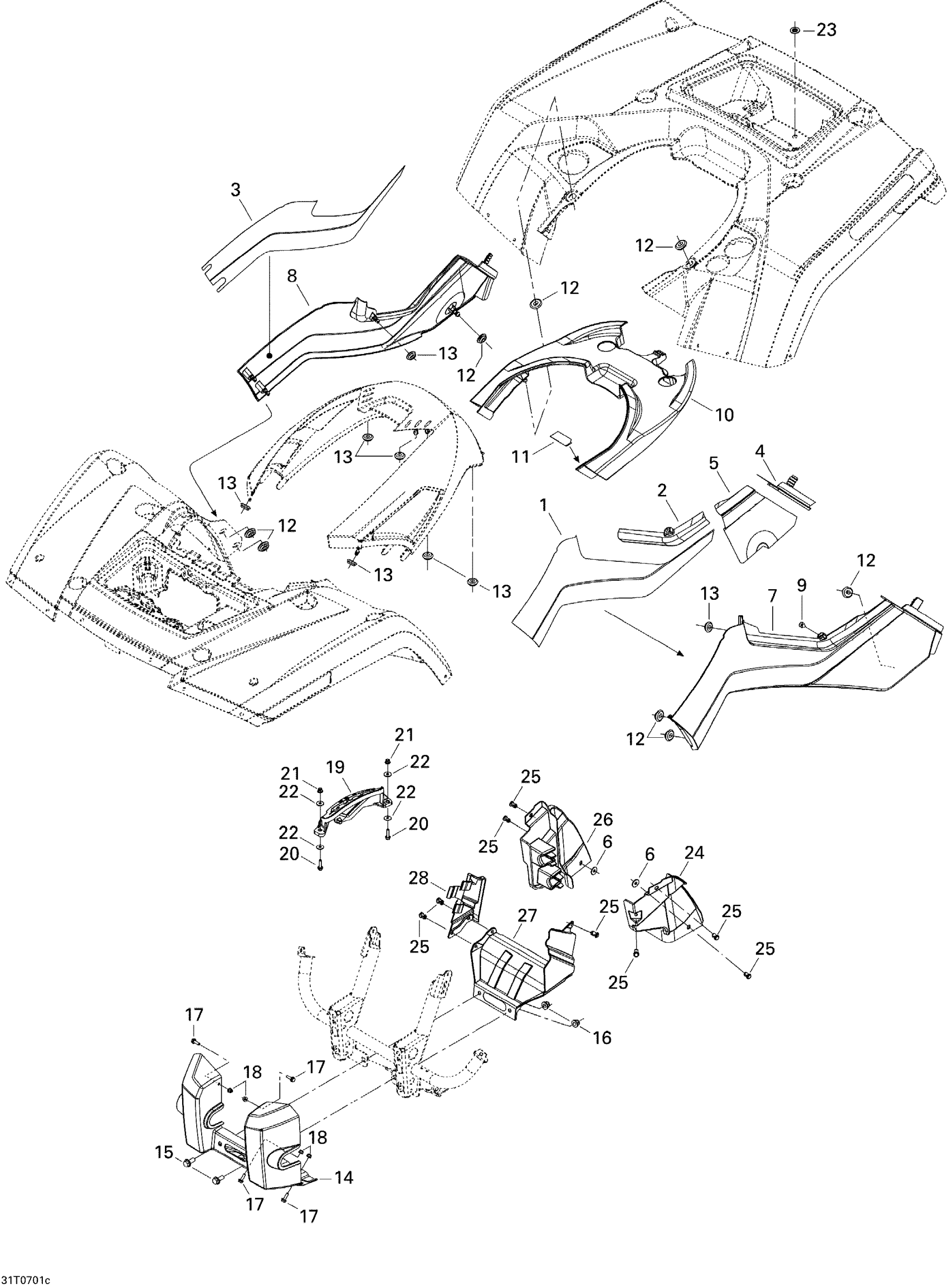

Can-Am Outlander MAX 650 XT 4 X 4, 2007 Body And Accessories 3 Diagram

#

Description
Price

1

Reflective Sheet

705005620

$11.98

2

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

705005623

$7.66

4

LH REFLECTIVE SHEET - Call your local BRP dealership

705002183

$6.89

5

REFLECTIVE SHEET - Call your local BRP dealership

705005621

$6.89

6

Washer

506151252

$3.11

7

PANEL_BODY LH B-176 - Call your local BRP dealership | Viper Red

705002942

Unavailable

7

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002940

Unavailable

7

LH LATERAL PANEL, GREEN - Call your local BRP dealership | Laurentian Green

705002941

$38.43

7

LH Lateral Panel, Camo | Camo

705002475

Unavailable

8

RH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red

705002945

$38.43

8

RH LATERAL PANEL, YELLOW - Call your local BRP dealership | Yellow

705002943

Unavailable

8

RH LATERAL PANEL, GREEN - Call your local BRP dealership | Laurentian Green

705002118

Unavailable

8

RH LATERAL PANEL, CAMO - Call your local BRP dealership | Camo

705002476

$193.82

9

Rubber Bumper

293830005

$5.33

10

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

10

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

$29.97

10

STORAGE TRAY, GREEN - Call your local BRP dealership | Laurentian Green

705002953

Unavailable

10

Storage Tray, Camo | Camo

705002477

Unavailable

11

REFLECTIVE SHEET - Call your local BRP dealership

705002185

$10.74

12

Oval Washer

705005156

$4.85

13

Grommet

705003264

$3.43

14

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.33

16

Hex. Flange Elastic Nut M10

233201414

$1.26

17

Hex. Flange Screw M6 X 20

207662044

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Lever Indicator

705003838

$27.66

20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Flat Washer

224061201

$1.11

23

CAP - Call your local BRP dealership

414859400

$2.78

24

LH INNER FENDER - Call your local BRP dealership

705003634

$13.82

25

Tuflok Plastic Rivet

293150230

$1.21

26

RH INNER FENDER - Call your local BRP dealership

705002124

Unavailable

27

LH DEFLECTOR - Call your local BRP dealership

705002988

$13.82

28

RH DEFLECTOR - Call your local BRP dealership

705002135

$11.51
