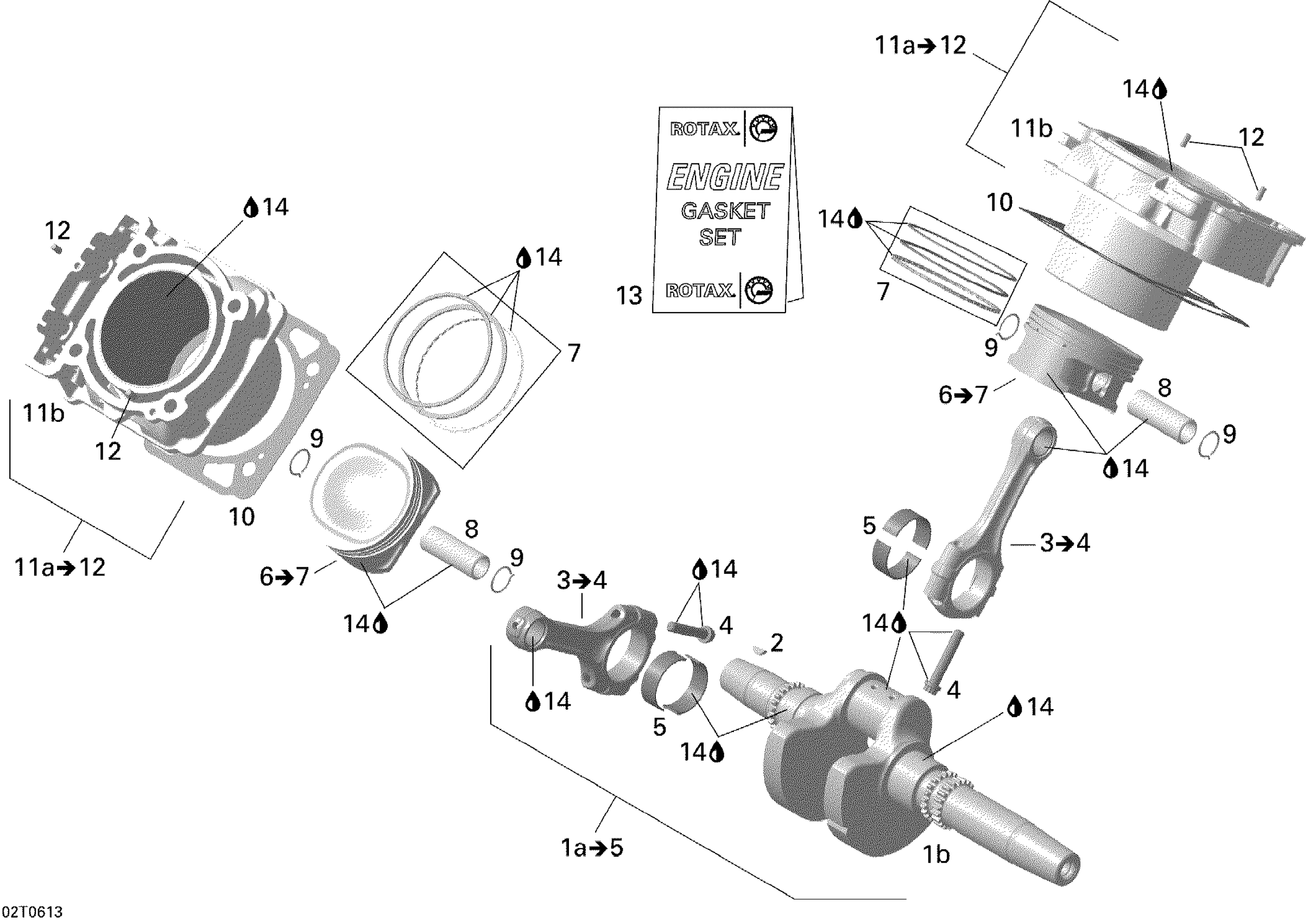

Can-Am Outlander MAX 650 XT 4 X 4, 2006 Crankshaft, Piston And Cylinder Diagram

#

Description

Price

1a

Not Available As Spare Part - Friction Washer

Unavailable

1b

Crankshaft Ass'y

420219746

Unavailable

2

Woodruff Key 4 X 5

420246570

Unavailable

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

Unavailable

4

Connecting Rod Screw M8 X 1

420641645

Unavailable

5

Plain Bearing 40 X 43 X 15

420233980

Unavailable

6

Piston Ass'y, 82 mm | 330HO / Includes 7 to 8

420685712

Unavailable

6

Piston Ass'y, Oversize, 82.208 mm | Includes 6 to 7

420684111

Unavailable

7

Piston Ring Set | 330HO

420684384

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Piston Pin

420216270

Unavailable

9

Piston Circlip

420845106

Unavailable

10

Gasket

420630210

Unavailable

11a

Cylinder Ass'y | Includes 11a to 12

420613888

Unavailable

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Drive Pin 5 X 10

420929650

Unavailable

13

Gasket Set, Engine

420684140

Unavailable

14

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
