Description

Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

$63.05

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

$48.43

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

$46.89

2

Tuflok Plastic Rivet

293150230

$1.21

3

Washer

506151252

$3.11

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

$9.20

6

Clip | Europe Models

517306751

$1.97

7

Central Panel Kit, Red | Includes 7 to 10, Viper Red

703500597

Unavailable

7

Central Panel Kit, Yellow | Includes 7 to 10, Yellow

715001274

$55.35

7

CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green

703500599

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

Dashboard

705003490

$46.12

12

Rear Luggage Rack

705002617

$267.66

13

Front Luggage Rack

705002616

$267.66

14

Torx Truss Screw M6 X 50

250000749

$3.11

15

Hex. Flange Screw M6 X 50

207665044

$3.38

16

Torx Screw M6 X 20

250000722

$1.34

17

Flat Washer

224061201

$1.11

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

LH Handle

705001944

Unavailable

20

RH Handle

705001945

Unavailable

21

Hex Torx Truss M8 X30

250000745

$3.05

22

Torx Truss Screw M8 X 16

250000746

$2.78

23

Bushing

705002153

$11.06

24

Rear Support

705003656

$267.66

25

U Reinforcement

705003647

$6.92

26

Hex. Flange Screw M8 X 50

207685044

$1.39

27

Hex. Flange Elastic Nut M8

233281414

$1.14

28

Flat Washer 8 mm

234082410

$1.11

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

30

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

31

LH ANCHOR PLATE - Call your local BRP dealership

705000692

$13.83

32

Pop Rivet 3/16"

390402300

$0.64

33

RH Anchor Plate

705002997

$16.89

34

Hex. Flange Screw M8 X 45

207684544

$3.68

35

Flat Washer 8 mm

234082410

$1.11

36

Hex. Elastic Stop Nut M8

232581414

$0.47

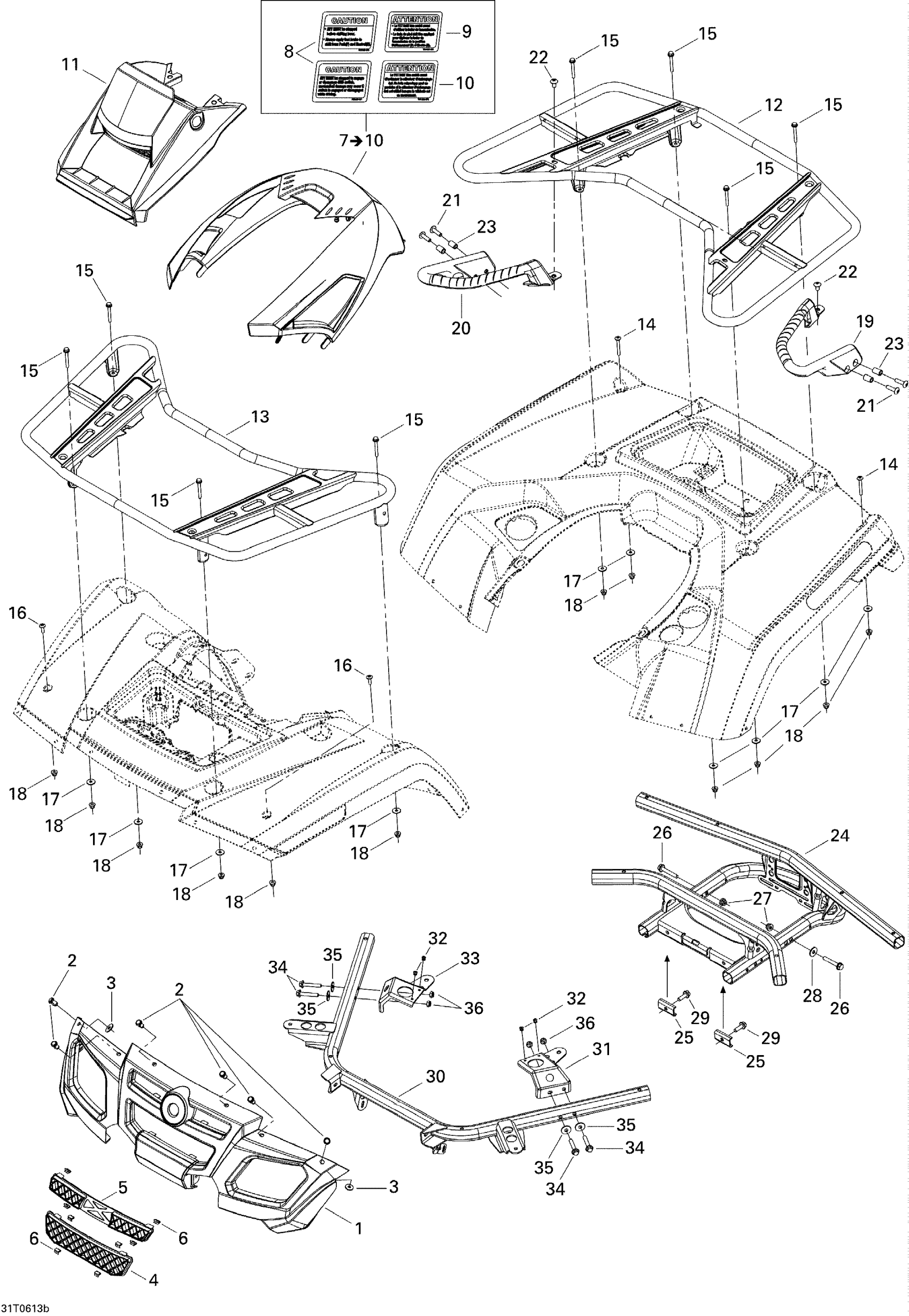

Can-Am Outlander MAX 650 STD 4 X 4, 2006 Body And Accessories 2, MAX STD Diagram

LOWER GRILL - Call your local BRP dealership

Central Panel Kit, Red | Includes 7 to 10, Viper Red

CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green

Caution Decal, Lever And 4wd Switch | English Version

Caution Decal, Shifting Lever | French Version

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

LH Handle

RH Handle

FRONT SUPPORT - Call your local BRP dealership
